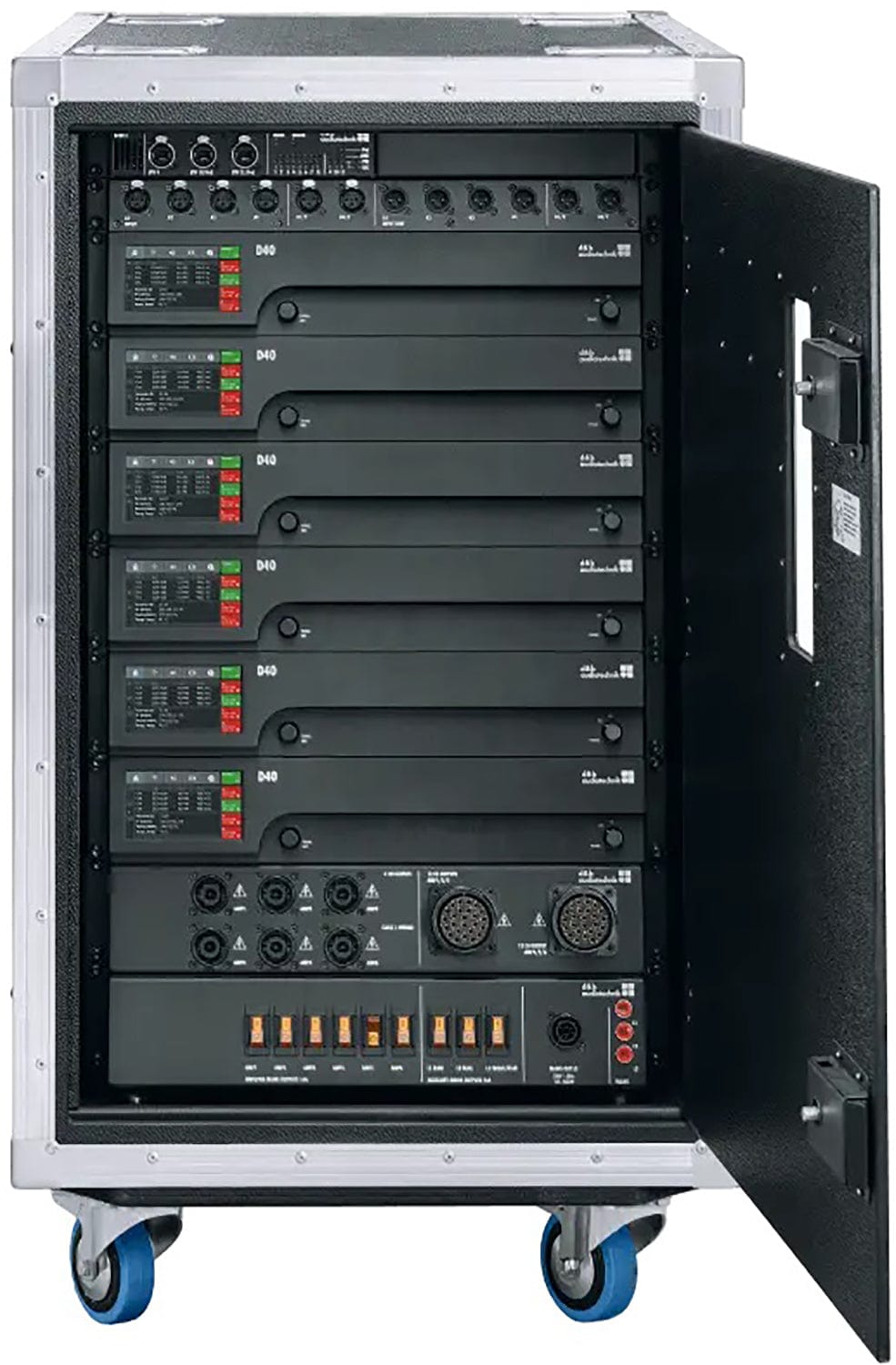

d&b audiotechnik Z5601.552 6x D40 Touring Rack - NEMA Mains Panel / Audio Network Bridge

The d&b Z5601.552 D40 Touring rack assembly NEMA is intended for large scale mobile sound reinforcement applications. It is designed as a closed and prewired 18 RU system rack providing mains power distribution and connector interfaces for 6 x D40 amplifiers.

For this purpose, the touring rack is equipped with a 2 x 30 A NEMA mains power distribution device (Z5606.001) as well as a loudspeaker connector panel (Z5578.001).

In addition, the Z4001 DN1 Ethernet network switch provides an AVB-enabled 11-port switch (3 x etherCON / 8 x RJ45).

Also incorporated is an I/O panel (Z5604), which serves as a connector interface for both analog and digital audio signals.
