LG 65TC3D 65" Full HD Interactive Digital Board – Multi-Touch Display for Business & Education

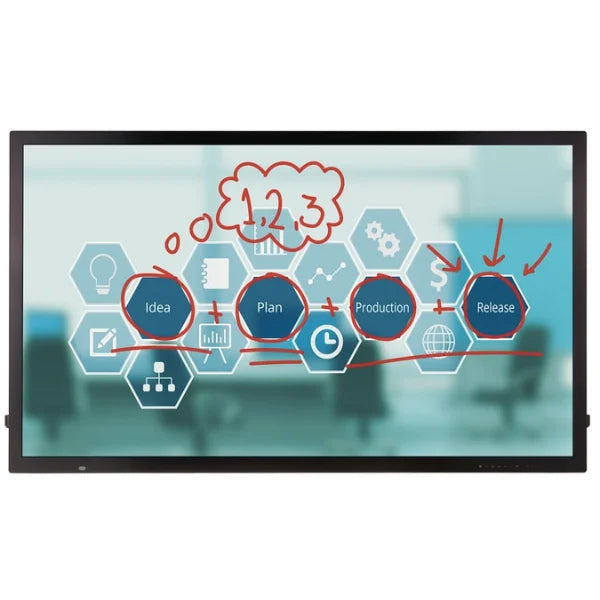

  • LG 65TC3D 65 inch Full HD Interactive Digital Board front view with P-Cap touch showing a collaborative presentation in a modern workspace
1 8

LG 65TC3D 65" Full HD Interactive Digital Board – Multi-Touch Display for Business & Education

LG 65TC3D 65" Full HD Interactive Digital Board – Multi-Touch Display for Business & Education

65" FHD IPS Panel: Vibrant 1920 x 1080 resolution and 178-degree wide viewing angles with true-to-life color reproduction.

40-Point P-Cap Multi-Touch: Advanced Projected Capacitive touch tracking for an ultra-fast, smooth, and modern tablet-like feel.

Embedded webOS 3.0+ Platform: Powerful built-in SoC runs the native LG IDB application for standalone, PC-free whiteboarding.

Continuous 24/7 Operation: Built for relentless commercial use, outputting a high-visibility 450 nits of panel brightness.

3.2T Tempered Anti-Glare Glass: Toughened protective faceplate surface that actively scatters office reflections and resists scratches.

Flexible Input Connectivity: Equipped with 3 x HDMI, DisplayPort, DVI-D, integrated Wi-Fi, and a modular Intel OPS slot.

LG
Brand : LG
Model : 65TC3D

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Optimized for premium environments in Dubai, Abu Dhabi, and the GCC, the LG 65TC3D serves as the operational focal point for multiple commercial spaces. In corporate boardrooms and executive huddle spaces, it drives flawless hybrid video conferencing and screen sharing. For command, control, and emergency dispatch centers, its massive 4K real estate splits into PBP feeds to monitor real-time security data streams. In professional training spaces and universities, it replaces analog infrastructure to support interactive multi-user digital whiteboarding.

LG 65TC3D 65 inch Full HD Interactive Digital Board front view with P-Cap touch showing a collaborative presentation in a modern workspace
  • Specifications
  • Details
Feature/Parameter Technical Specification Details
Screen Size & Panel 65-inch Commercial-grade LG IPS Panel
Native Resolution Full HD (1920 x 1080) at 16:9 Aspect Ratio
Brightness 450 cd/m² (Module, Typical)
Viewing Angles 178° Horizontal / 178° Vertical
Contrast Ratio 1,200:1 (Static) | 500,000:1 (Dynamic)
Touch Technology Premium Projected Capacitive (P-Cap) Ag Metal Mesh
Simultaneous Touch Points Maximum 40 Points
Touch Precision & Object Size Accuracy within 2mm | Recognizes objects 6 mm or larger
Screen Protection 3.2T Tempered Anti-Glare, Shatter-Proof Safety Glass
Operating Hours / Lifecycle 24 Hours / 7 Days continuous heavy-duty operational cycle
Embedded Platform LG webOS 3.0+ Smart Signage Platform with Embedded IDB App
Input Interfaces 3 x HDMI, 1 x DisplayPort, 1 x DVI-D, 1 x RGB (VGA), 1 x Audio In, 1 x USB 3.0, 1 x USB 2.0
Output / Control 2 x Touch USB 2.0 Out, 1 x RS232C In/Out, 1 x RJ45 (LAN) Network
Built-in Wireless Built-in Wi-Fi (802.11n Combo) & SoftAP Functionality
Built-in Audio Integrated Stereo Speaker System (2 x 10W)
Hardware Expansion Intel Open Pluggable Specification (OPS) Slot (KT-OPSA compatible)
Physical Dimensions 1530.8 mm x 883.8 mm x 71.7 mm (Without Handle)
Carton Dimensions 1650 mm x 1035 mm x 228 mm (Box Outer Size)
Net Hardware Weight 51.0 kg (Display Head Unit Alone)
Gross Packed Weight 59.0 kg (Total Shipping Box Weight)
VESA Mount Interface 300 mm x 300 mm standard patterns

Professional Visual Performance

  • True-to-Life IPS Display: Built on commercial LG IPS panel technology, the display delivers clear Full HD (1920 x 1080) visual performance with uniform color tracking across a wide 178-degree viewing range.
  • Ambient Light Management: The 450-nit panel brightness paired with 3.2T anti-glare tempered safety glass prevents harsh office reflections from washing out presentations, ensuring visibility even in brightly lit boardrooms.

Advanced Touch Collaboration

  • Sleek P-Cap Technology: Uses specialized Projected Capacitive (P-Cap) touch technology with an integrated Ag Metal Mesh sensor layout. This removes the thick, protruding edge frames seen on old Infrared displays, giving the screen a modern, flat appearance.
  • Massive 40-Point Matrix: Supports up to 40 points of simultaneous multi-touch interaction. Multiple users can seamlessly brainstorm, sketch, draw, and modify data concurrently with virtually zero touch latency.
  • Adaptive Writing Experience: The screen actively tracks stylus speed to automatically adjust digital ink thickness on screen, bringing an organic, pen-on-paper fluid feel to every meeting.

Independent Smart Integration

  • PC-Free webOS Engine: Driven by the integrated LG webOS 3.0+ platform with a high-performance system-on-chip. There is no need to wire up an external presentation laptop or media player to access central files.
  • Built-in Interactive Tools: The native LG Interactive Digital Board app lets your team instantly open, review, and write directly over PowerPoint slides, text sheets, and high-resolution images via simple USB flash drives.
  • Auto Signal Switching: Intelligently monitors input feeds. The moment a team member plugs in their laptop via HDMI or DisplayPort, the system switches sources automatically, preventing awkward presentation delays.

Enterprise Security & Architecture

  • Heavy-Duty 24/7 Operations: Rated for a continuous 24 hours a day, 7 days a week operational cycle, making it ideal for demanding command centers, monitoring rooms, and corporate huddle setups.
  • IT Network Readiness: Equipped with RJ45 Ethernet and RS232C inputs, it fully supports Crestron Connected management protocols. This allows internal IT teams to remotely monitor hardware health and push global power schedules.
  • Modular Expansion Slot: Features a built-in Intel Open Pluggable Specification (OPS) slot. This allows for a clean, slide-in Windows PC module upgrade without hanging messy boxes or extension lines behind the frame.
Feature/Parameter Technical Specification Details
Screen Size & Panel 65-inch Commercial-grade LG IPS Panel
Native Resolution Full HD (1920 x 1080) at 16:9 Aspect Ratio
Brightness 450 cd/m² (Module, Typical)
Viewing Angles 178° Horizontal / 178° Vertical
Contrast Ratio 1,200:1 (Static) | 500,000:1 (Dynamic)
Touch Technology Premium Projected Capacitive (P-Cap) Ag Metal Mesh
Simultaneous Touch Points Maximum 40 Points
Touch Precision & Object Size Accuracy within 2mm | Recognizes objects 6 mm or larger
Screen Protection 3.2T Tempered Anti-Glare, Shatter-Proof Safety Glass
Operating Hours / Lifecycle 24 Hours / 7 Days continuous heavy-duty operational cycle
Embedded Platform LG webOS 3.0+ Smart Signage Platform with Embedded IDB App
Input Interfaces 3 x HDMI, 1 x DisplayPort, 1 x DVI-D, 1 x RGB (VGA), 1 x Audio In, 1 x USB 3.0, 1 x USB 2.0
Output / Control 2 x Touch USB 2.0 Out, 1 x RS232C In/Out, 1 x RJ45 (LAN) Network
Built-in Wireless Built-in Wi-Fi (802.11n Combo) & SoftAP Functionality
Built-in Audio Integrated Stereo Speaker System (2 x 10W)
Hardware Expansion Intel Open Pluggable Specification (OPS) Slot (KT-OPSA compatible)
Physical Dimensions 1530.8 mm x 883.8 mm x 71.7 mm (Without Handle)
Carton Dimensions 1650 mm x 1035 mm x 228 mm (Box Outer Size)
Net Hardware Weight 51.0 kg (Display Head Unit Alone)
Gross Packed Weight 59.0 kg (Total Shipping Box Weight)
VESA Mount Interface 300 mm x 300 mm standard patterns
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
P-Cap touch technology uses an Ag Metal Mesh sensor matrix embedded behind the front glass, eliminating the thick, extended frame bezels required by old Infrared (IR) screens. This enables a completely flat, sleek bezel layout. Functionally, it tracks up to 40 simultaneous touch points with exceptional precision, ignores accidental palm resting, and offers a highly responsive, zero-lag experience comparable to a modern smartphone.
Yes, it runs entirely PC-free. The display features a built-in LG webOS smart signage platform paired with a System-on-Chip (SoC) engine and a pre-loaded LG IDB interactive application. Presenters can plug a USB drive directly into the panel to instantly access, view, and annotate over files, spreadsheets, and documents without any additional software licenses or external hardware.
This time-saving feature allows the board to actively monitor incoming data feeds. When a new presenter connects a device (such as a laptop via HDMI or DisplayPort), the display immediately detects the incoming touch or video signal and switches the main screen source automatically, saving users from hunting through menus or using remote controls mid-meeting.
The LG 65TC3D is built for enterprise IT frameworks. It includes standard RJ45 LAN and RS232C control inputs, supporting Crestron Connected network-based control and SuperSign Control software. This allows IT teams to monitor panel health, control power states via Wake on LAN (WOL), and configure pin-protected virtual meeting spaces inside the IDB app to restrict access to sensitive business materials.
Yes. The screen features integrated Picture-by-Picture (PBP) and Picture-in-Picture (PIP) layout modes. This allows you to split the 65-inch display canvas to show two completely distinct input signals side by side (for example, comparing a local presentation feed next to a live remote video conferencing feed), making it ideal for collaborative corporate work environments.
