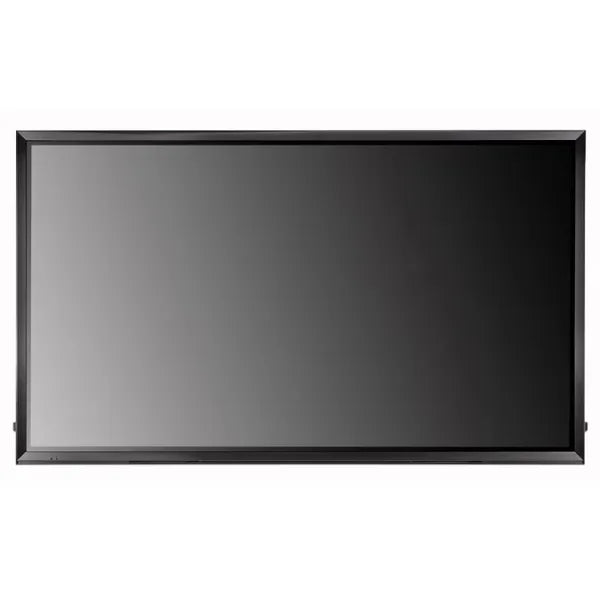

LG 86TR3D 86" Ultra HD 4K Interactive Digital Board Multi-Touch Collaboration Display

LG 86TR3D 86" Ultra HD 4K Interactive Digital Board Multi-Touch Collaboration Display

86" 4K UHD IPS Panel: Breathtaking 3840 x 2160 clarity and 178° viewing angles for flawless corporate presentations.

Premium InGlass™ Touch: Advanced 20-point multi-touch tracking with <2mm accuracy for an authentic pen-on-paper feel.

Embedded webOS Smart Platform: PC-free operation using built-in SuperSign IDB apps for native document whiteboarding.

Commercial 16/7 Duty Cycle: Designed for persistent high-performance use with 410 nits of reliable panel brightness.

4T Tempered Anti-Glare Glass: Toughened, shatter-proof protective glass panel that eliminates annoying overhead light glare.

Enterprise Architecture Ready: Integrated Intel OPS expansion slot, dual 10W speakers, RJ45 LAN, and RS232C control.

LG
Brand : LG
Model : 86TR3D

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Optimized for premium environments in Dubai, Abu Dhabi, and the GCC, the LG 86TR3D serves as the operational focal point for multiple commercial spaces. In corporate boardrooms and executive huddle spaces, it drives flawless hybrid video conferencing and screen sharing. For command, control, and emergency dispatch centers, its massive 4K real estate splits into PBP feeds to monitor real-time security data streams. In professional training spaces and universities, it replaces analog infrastructure to support interactive multi-user digital whiteboarding.

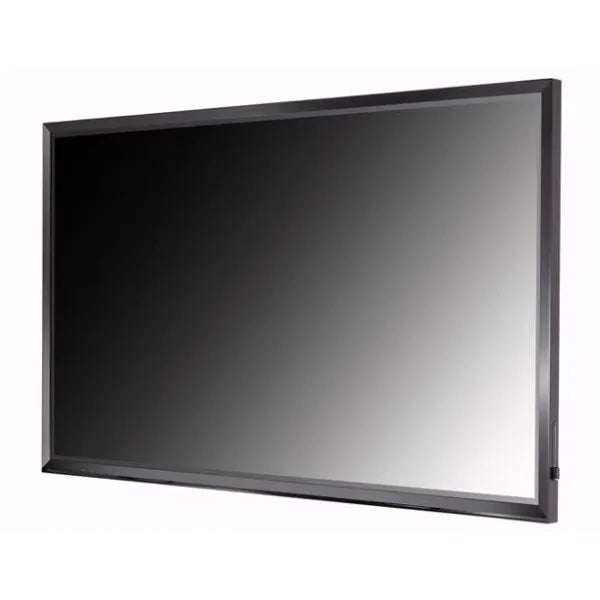

LG 86TR3D 86 inch 4K UHD Interactive Digital Board front view showing multi touch whiteboarding in a corporate boardroom setting
  • Specifications
  • Details
Feature/Parameter Technical Specification Details
Screen Size & Panel 86-inch Commercial-grade LG IPS Panel
Native Resolution 4K Ultra HD (3840 x 2160) at 16:9 Aspect Ratio
Brightness 410 cd/m² (Module) / 350 cd/m² (With Protection Glass)
Viewing Angles 178° Horizontal / 178° Vertical
Contrast Ratio 1,200:1 (Static) | 500,000:1 (Dynamic)
Touch Technology Flatfrog InGlass™ Multi-Touch Technology
Simultaneous Touch Points Maximum 20 Points
Touch Precision & Object Size Accuracy within 2mm | Recognizes objects $$\g$ Ø 3 mm
Screen Protection 4T Tempered Anti-Glare, Shatter-Proof Safety Glass
Operating Hours / Lifecycle 16 Hours / 7 Days continuous operational duty cycle
Embedded Platform LG webOS Smart Signage Platform with SuperSign IDB
Input Interfaces 3 x HDMI, 1 x DisplayPort, 1 x DVI-D, 1 x RGB (VGA), 1 x Audio In
Output / Control 2 x Touch USB 2.0 Out, 1 x RS232C, 1 x RJ45 (LAN) Network
USB Hub Ecosystem 1 x USB 3.0, 2 x USB 2.0, 1 x OPS USB
Built-in Audio Integrated Stereo Speaker System (2 x 10W)
Hardware Expansion Intel Open Pluggable Specification (OPS) Slot (KT-OPSA compatible)
Physical Dimensions 2,026.9 mm × 1,180.3 mm × 75.6 mm (Without Stand)
Net Hardware Weight 92.7 kg
VESA Mount Interface 600 mm x 400 mm standard patterns


The LG 86TR3D is an premium, enterprise-grade 86-inch 4K UHD Interactive Digital Board (IDB) purposefully engineered to anchor the next generation of modern meeting spaces, smart classrooms, and collaborative corporate environments across the UAE and GCC. Built upon LG’s industry-leading IPS panel architecture, this expansive display outputs flawless 4,000-pixel resolution ($3840 \times 2160$) with uniform color accuracy and crystal-clear image definition. Even when local teams or presentation hosts deeply zoom into micro-detailed architectural drawings, AutoCAD schematics, or multi-column data sheets, the visuals remain perfectly sharp without pixelation or color shift across an ultra-wide 178-degree viewing arc.

At the core of its collaborative power is the integration of premium Flatfrog InGlass™ multi-touch technology. Unlike legacy Infrared (IR) touch systems that suffer from bulky frame bezels and lag, the InGlass™ technology mimics the lightning-fast, ultra-low latency responsiveness of high-end consumer tablets. It supports up to 20 points of simultaneous multi-touch and accurately registers stylus inputs down to a 3mm pen tip radius. This zero-gap touch precision translates into a truly authentic "pen-on-paper" feel, allowing multiple presenters to write, erase, highlight, and adjust digital assets simultaneously without interference. The display surface is reinforced with heavy-duty 4T tempered anti-glare safety glass that dramatically reduces harsh office light reflections while offering robust scratch resistance and shatter-proof protection.

Driven by the smart LG webOS platform and pre-loaded with the native SuperSign IDB software suite, the LG 86TR3D works as an independent workspace right out of the box. Teams can confidently access, edit, and annotate natively over documents, PDFs, web browsers, or presentation materials via simple USB inputs without requiring an external laptop or dedicated server hookup. For environments utilizing a hardware ecosystem, the board features a comprehensive multi-screen Picture-by-Picture (PBP) and Picture-in-Picture (PIP) layout function to contrast dual input feeds seamlessly. Backed by full network readiness via RJ45 LAN with Crestron Connected management compatibility, and optimized for an efficient 16/7 runtime lifecycle, the LG 86TR3D stands as an elite asset to secure B2B operational productivity, lower total cost of ownership (TCO), and clear the way for frictionless hybrid communication.

Feature/Parameter Technical Specification Details
Screen Size & Panel 86-inch Commercial-grade LG IPS Panel
Native Resolution 4K Ultra HD (3840 x 2160) at 16:9 Aspect Ratio
Brightness 410 cd/m² (Module) / 350 cd/m² (With Protection Glass)
Viewing Angles 178° Horizontal / 178° Vertical
Contrast Ratio 1,200:1 (Static) | 500,000:1 (Dynamic)
Touch Technology Flatfrog InGlass™ Multi-Touch Technology
Simultaneous Touch Points Maximum 20 Points
Touch Precision & Object Size Accuracy within 2mm | Recognizes objects $$\g$ Ø 3 mm
Screen Protection 4T Tempered Anti-Glare, Shatter-Proof Safety Glass
Operating Hours / Lifecycle 16 Hours / 7 Days continuous operational duty cycle
Embedded Platform LG webOS Smart Signage Platform with SuperSign IDB
Input Interfaces 3 x HDMI, 1 x DisplayPort, 1 x DVI-D, 1 x RGB (VGA), 1 x Audio In
Output / Control 2 x Touch USB 2.0 Out, 1 x RS232C, 1 x RJ45 (LAN) Network
USB Hub Ecosystem 1 x USB 3.0, 2 x USB 2.0, 1 x OPS USB
Built-in Audio Integrated Stereo Speaker System (2 x 10W)
Hardware Expansion Intel Open Pluggable Specification (OPS) Slot (KT-OPSA compatible)
Physical Dimensions 2,026.9 mm × 1,180.3 mm × 75.6 mm (Without Stand)
Net Hardware Weight 92.7 kg
VESA Mount Interface 600 mm x 400 mm standard patterns


Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Flatfrog InGlass™ technology provides a significantly thinner glass-to-panel optical gap compared to traditional Infrared (IR) frames. This layout minimizes parallax error and eliminates touch lag, delivering an incredibly natural and responsive "pen-on-paper" writing experience. Additionally, InGlass™ surfaces are immune to dust build-up interference and can accurately identify small inputs down to a 3mm pen tip radius while comfortably disregarding accidental palm rests.
Yes, the display acts as a fully independent system. It features an embedded LG webOS smart signage engine pre-loaded with the native SuperSign IDB interactive application. Users can directly plug in a USB flash drive or access internal memory to view, edit, and write directly over PDFs, Microsoft Word documents, PowerPoint presentations, or high-resolution images without any external computer hardware connected.
The display features advanced processing that supports Multi-Screen layouts, including Picture-by-Picture (PBP) and Picture-in-Picture (PIP). This enables the screen to split up and showcase distinct, live signal feeds from separate source connections (such as two laptops connected via HDMI/DisplayPort) side-by-side on the same 86-inch 4K canvas, making it an excellent match for critical data comparison in command and control environments.
Yes. The LG 86TR3D is fully equipped with an RJ45 Ethernet LAN interface alongside standard RS232C control inputs. It supports professional system monitoring platforms like SuperSign Link, Crestron Connected, and Wake on LAN (WOL). This layout allows enterprise IT administrators to remotely manage system power schedules, run network diagnostics, adjust settings, and perform firmware updates safely across the local network infrastructure.
The LG 86TR3D features an integrated, industry-standard Intel Open Pluggable Specification (OPS) slot. Instead of dealing with external media players, trailing cables, or mounting shelves, an OPS-compatible slot-in PC module can be neatly slid directly into the rear of the board. This configuration allows you to instantly upgrade the display to a high-performance Windows or Chrome OS computer that operates natively through the internal power and touch interfaces.
