LG KT-T550 55" Touch Overlay Kit for Compatible Commercial Displays (10-Touch Points)

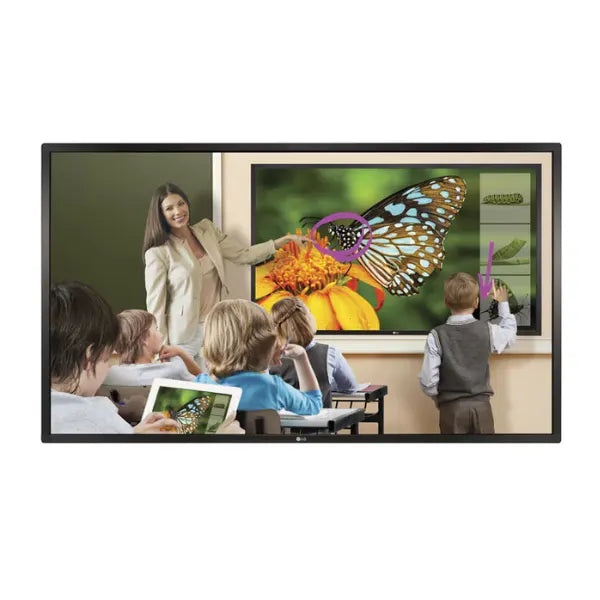

  • LG-KT-T550-55-inch-touch-screen-overlay-kit-front-view
1 8

LG KT-T550 55" Touch Overlay Kit for Compatible Commercial Displays (10-Touch Points)

LG KT-T550 55" Touch Overlay Kit for Compatible Commercial Displays (10-Touch Points)

Instant Interactive Transformation: Converts standard 55-inch LG digital signage displays into highly responsive touch screens without purchasing entirely new hardware.

10-Point Multi-Touch Capability: Enables fluid collaborative environments, letting multiple users write, gesture, and interact simultaneously.

Premium Anti-Glare Protection: Equipped with a 3mm heavy-duty tempered glass overlay that shields the underlying panel while cutting out harsh ambient reflections.

Seamless USB Plug-and-Play: Operates directly over a standard USB 2.0 connection, utilizing bus power to eliminate messy external power adapters.

High-Precision Infrared Tracking: Delivers fast response times and precise coordinate tracking for drawing, wayfinding, and interactive apps.

LG
Brand : LG
Model : KT-T550

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

The LG KT-T550 overlay kit is perfect for retrofitting existing commercial spaces across the GCC. In corporate huddle rooms, it converts standard digital signage into collaborative presentation boards. In retail outlets and shopping malls, it enables immersive interactive product catalogs and wayfinding maps. Its rugged 3mm tempered glass makes it exceptionally durable for public information kiosks in transport hubs and hospitals, while the quick USB setup ensures rapid deployment in dynamic exhibition booths.

LG-KT-T550-55-inch-touch-screen-overlay-kit-front-view
  • Specifications
  • Details
Technical Parameter Industrial Specification
Brand & Model LG KT-T550 (KT-T550.AEM / KT-T55E)
Target Screen Size 55 inches (Optimized for compatible LG Commercial Displays)
Touch Technology Type Advanced Infrared (IR) Sensing Technology
Simultaneous Touch Points Up to 10 Points of Multi-Touch
Touch Resolution 32,767 x 32,767
Response Time Fast Response Speed (Typically ≤ 15 ms)
Interface / Connection USB 2.0 (Bus Powered - No External Power Adapter Required)
Operating System Support Windows 7 / 8 / 8.1 / 10 / 11, Mac OS X, Linux, Android
Protection Glass Thickness 3.0 mm Tempered Glass
Glass Surface Treatment Anti-Glare (AG) Coating, Protection Layer
Light Transmission Over 85%
Bezel Width (Overlay) Top/Bottom: 26.6 mm, Left/Right: 26.6 mm
Physical Dimensions (W x H x D) 1256.4 mm x 735.2 mm x 27.3 mm
Net Product Weight 7.8 kg
Supported Display Models LG 55SE3B, 55SE3KB, 55SM5B, 55SM5KB, 55UH5B, 55UM3E (Check exact chassis compatibility)

The LG KT-T550 55-inch Touch Overlay Kit is a cost-effective, enterprise-grade accessory designed to instantly transform standard commercial displays into high-performance interactive hubs. Built specifically to fit compatible 55-inch LG Large Format Displays (LFDs), this overlay provides businesses across the UAE and GCC with a seamless upgrade path. Instead of replacing existing digital signage infrastructure, system integrators can deploy the KT-T550 to inject full multi-touch capabilities into meeting rooms, retail stores, and corporate lobbies.

Advanced Infrared Touch and Collaboration

Equipped with advanced Infrared (IR) touch sensors, the LG KT-T550 tracks up to 10 points of simultaneous contact with extreme precision. This multi-touch capability makes it an ideal addition to collaborative spaces where teams need to brainstorm, annotate documents, or navigate complex data interfaces together. The system architecture supports native multi-touch gestures—such as pinching, zooming, and rotating—ensuring a smooth, smartphone-like user experience scaled up to a massive 55-inch canvas.

Rugged Commercial Protection and Anti-Glare Glass

Engineered for heavy-use public and corporate environments, the overlay kit features a 3.0 mm thick tempered protection glass. This layer serves as a rugged shield, safeguarding the costly underlying LCD panel from physical damage, scratches, and daily wear-and-tear. To maintain pristine visibility under bright overhead office grids or showroom lighting, the glass is treated with an anti-glare coating. This treatment minimizes reflections while maintaining high light transmission, preserving the vibrant color accuracy and brightness of your existing display.

Streamlined Integration and Multi-OS Stability

The structural frame of the KT-T550 is designed to wrap tightly around the chassis of compatible LG display series, matching their aesthetics for a clean, integrated finish. Installation is exceptionally straightforward: the kit connects directly via a standard USB 2.0 interface. Because it draws power straight from the host USB bus, it entirely removes the need for extra power bricks behind the mount. The overlay provides extensive cross-platform compatibility, working plug-and-play with Windows, macOS, Linux, and Android operating systems to seamlessly fit into any corporate IT landscape.

Technical Parameter Industrial Specification
Brand & Model LG KT-T550 (KT-T550.AEM / KT-T55E)
Target Screen Size 55 inches (Optimized for compatible LG Commercial Displays)
Touch Technology Type Advanced Infrared (IR) Sensing Technology
Simultaneous Touch Points Up to 10 Points of Multi-Touch
Touch Resolution 32,767 x 32,767
Response Time Fast Response Speed (Typically ≤ 15 ms)
Interface / Connection USB 2.0 (Bus Powered - No External Power Adapter Required)
Operating System Support Windows 7 / 8 / 8.1 / 10 / 11, Mac OS X, Linux, Android
Protection Glass Thickness 3.0 mm Tempered Glass
Glass Surface Treatment Anti-Glare (AG) Coating, Protection Layer
Light Transmission Over 85%
Bezel Width (Overlay) Top/Bottom: 26.6 mm, Left/Right: 26.6 mm
Physical Dimensions (W x H x D) 1256.4 mm x 735.2 mm x 27.3 mm
Net Product Weight 7.8 kg
Supported Display Models LG 55SE3B, 55SE3KB, 55SM5B, 55SM5KB, 55UH5B, 55UM3E (Check exact chassis compatibility)
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
No, the LG KT-T550 is a bus-powered device that connects to your media player or smart display via a standard USB 2.0 cable. It draws all necessary operational power directly through the USB port, completely eliminating the need for an external AC power adapter or extra wiring behind the wall mount.
No, the KT-T550 is precision-engineered to physically match the bezel dimensions, screw alignments, and depth profiles of specific LG commercial display series (such as the SE3B, SM5B, and UH5B lines). It cannot be reliably fitted onto standard consumer TVs or third-party monitors, as the physical alignment of the Infrared sensors must precisely match the screen's active matrix.
The overlay kit features high-grade optical glass with a light transmission rating of over 85%. While there is a microscopic reduction in raw brightness due to the physical protection layer, the integrated anti-glare treatment drastically reduces surface reflections. This ensures that text, maps, and UI elements remain perfectly sharp and legible under bright ambient lighting conditions.
For modern Windows operating systems, the overlay acts as a standard HID (Human Interface Device) compliant touch screen and is typically plug-and-play without manual calibration. For specialized layouts, portrait installations, or multi-monitor configurations, a quick one-time alignment using the native Windows Control Panel or LG's utility software is recommended to ensure pixel-perfect tracking accuracy.
The KT-T550 is built with a heavy-duty 3.0 mm tempered glass overlay designed specifically to withstand high-traffic commercial environments. It protects the fragile underlying LCD panel from scratches, impacts, and heavy finger pressure. The surface can be safely cleaned using standard industrial electronic microfiber cloths and light isopropyl alcohol solutions to maintain hygiene in public spaces.
