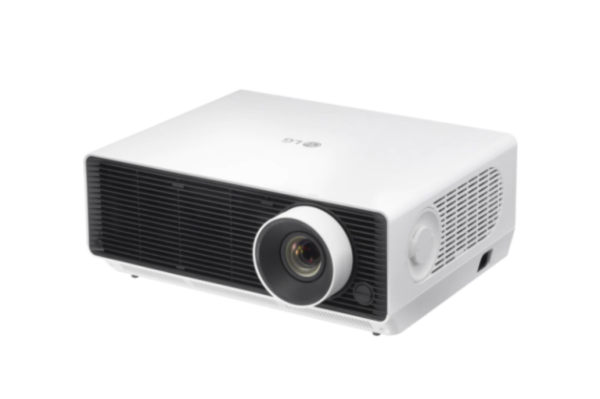

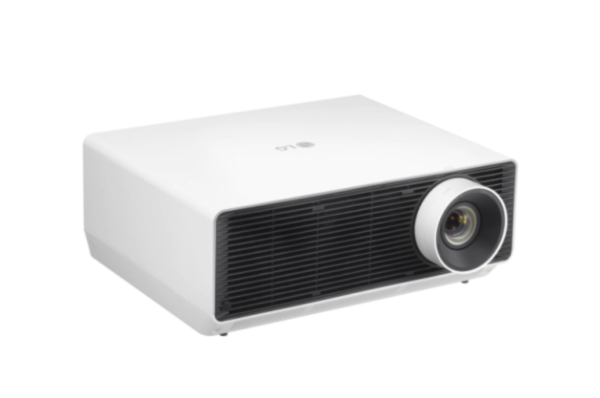

LG ProBeam BF50NST WUXGA Commercial Laser Projector (5000 ANSI Lumens, 1.6x Zoom, Lens Shift, webOS 4.5, HDBaseT)

Skip to product information
1 of 3

LG ProBeam BF50NST WUXGA Commercial Laser Projector (5000 ANSI Lumens, 1.6x Zoom, Lens Shift, webOS 4.5, HDBaseT)

LG ProBeam BF50NST WUXGA Commercial Laser Projector (5000 ANSI Lumens, 1.6x Zoom, Lens Shift, webOS 4.5, HDBaseT)

Vibrant 5000 ANSI Lumens Core: Engineered with premium industrial laser diodes that cut through severe room glare, preserving visual pop in illuminated boardrooms.

Native WUXGA Corporate Resolution: Offers an enterprise-standard 1920x1200 resolution canvas in a 16:10 ratio, aligning perfectly with professional laptops.

Unified Single-Cable HDBaseT: Maximizes institutional network design by routing uncompressed HD video, multi-channel audio, and network controls over a single LAN cable up to 100m.

Pro Mechanical Lens Shift & 1.6x Zoom: Streamlines tough ceiling installations with vertical ±50% and horizontal ±20% optical tracking adjustments to bypass fixed room obstacles.

Pro-Tier 12-Point Edge Warping: Features a highly precise 12-coordinate digital geometry calibration tool to lock flat, distortion-free images over localized wall waves.

LG
Brand : LG
Model : BF50NST

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases


The LG ProBeam BF50NST is custom-engineered for mid-sized corporate venues, collaborative educational spaces, and medical training centers across the GCC. In corporate meeting rooms, executive huddle spaces, and university classrooms, its 5000 ANSI Lumens core project a sharp 16:10 canvas that remains perfectly readable under standard daylight conditions. It is an exceptional solution for specialized hospitals and medical offices thanks to its built-in DICOM simulation mode for grayscale imaging. Furthermore, its lightweight chassis and integrated single-cable HDBaseT connectivity make it ideal for quick integration into networked AV infrastructures across multi-room commercial complexes.

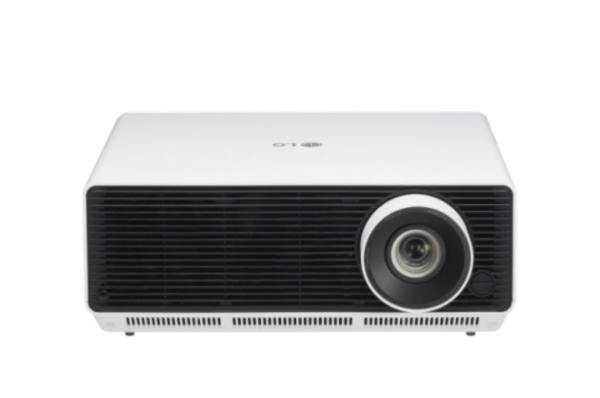

LG-ProBeam-BF50NST-WUXGA-5000-lumens-commercial-laser-projector-front-view-trianze-tech
  • Specifications
  • Details
Technical Parameter Industrial Specification
Brand & Model LG ProBeam BF50NST
Display Technology Digital Light Processing (DLP) Matrix
Native Resolution WUXGA (1920 x 1200)
Brightness Up to 5000 ANSI Lumens
Contrast Ratio 3,000,000:1 (Dynamic Contrast Profile)
Light Source Type High-Efficiency Solid-State Laser Diode Matrix
Light Source Lifespan Up to 20,000 Hours Continuous Full-Power Operation
Throw Ratio Range 1.30 – 2.08 (Flexible Standard to Long Throw Lens)
Optical Zoom Factor 1.6x Manual Mechanical Zoom
Lens Shift Range Horizontal: ±20% | Vertical: ±50% (Mechanical Optical Shift)
Screen Size Range 40 inches to 300 inches (Diagonal Matrix)
Aspect Ratio 16:10 Native (Enterprise Workspace Standard)
HDR Processing HDR10 / High Dynamic Range Compatibility
Smart Operating System LG webOS 4.5 Embedded Smart Platform
Unified Network Protocol Integrated HDBaseT Receiver RJ45 Port
Wireless Connectivity Miracast (Screen Share), Wireless DLNA, Bluetooth Sound Sync
Geometric Calibration 12-Point Digital Edge Adjustment & Warping Layout
Connectivity (Input) 2 x HDMI 2.0, 1 x HDBaseT (RJ45), 2 x USB 2.0 Type-A, 1 x RJ45 LAN (Control)
Audio & Control Interfaces 1 x 3.5mm Audio Out, RS-232C Control Port, 12V Trigger Out
Integrated Audio System Built-in Stereo Speakers (10W Total / 5W + 5W Stereo)
Physical Dimensions (W x H x D) 370.0 mm x 153.7 mm x 290.0 mm
Net Product Weight 9.2 kg (Lightweight Commercial Chassis)
Media & Video Reference Official LG ProBeam Overview

Industrial-Grade 5000 ANSI Lumens Brightness and Native WUXGA Presentation Clarity

The LG ProBeam BF50NST WUXGA Commercial Laser Projector serves as a high-efficiency visual centerpiece for mid-to-large business spaces, modern collaborative classrooms, and commercial presentation frameworks. Distributed across the UAE and GCC markets by Trianze Tech—the premier authority for commercial AV integration and premium IT hardware distribution—this professional-tier machine is engineered to overcome ambient lighting obstacles throughout Dubai and Abu Dhabi. Utilizing a highly dependable solid-state laser diode matrix that fires a potent 5000 ANSI Lumens, the BF50NST guarantees that text arrays, training modules, and data layouts remain highly legible, even under heavy overhead office fluorescent lighting. Delivering a native WUXGA (1920x1200) resolution layout, it offers a crisp 16:10 aspect ratio canvas that provides extra vertical display space—making it uniquely suited for rendering complex data sheets, programming code, and modern business software configurations without cropping.

Flexible Optical Integration via 1.6x Mechanical Zoom and Advanced Lens Shift

A primary installation benefit of the BF50NST is its versatile optical architecture, engineered to simplify physical challenges during overhead commercial ceiling deployment. The projector features a broad 1.6x manual mechanical zoom factor paired with an advanced mechanical lens shift system (Horizontal ±20% / Vertical ±50%). This empowers commercial integration crews to dynamically reposition the active image field without physically shifting the hardware mount or introducing digital distortion. Consequently, installation teams can eliminate skewed layouts caused by off-center ceiling brackets, structural pillars, or overhead ventilation ducts with absolute ease.

Unified Single-Cable HDBaseT Infrastructure and Autonomous webOS Platform

For large-scale enterprise layouts and sprawling campus infrastructures, the inclusion of an integrated HDBaseT receiver terminal completely redefines connection layouts. Instead of deploying expensive, signal-degrading long HDMI cables or fragile external extenders, IT teams can transmit uncompressed video, audio, network data, and bidirectional control signals over a single standard Cat6 LAN cable up to 100 meters. At its software core, the projector runs on LG's specialized webOS smart operating platform. This gives business users the ability to browse web pages, display cloud-stored assets, or run corporate digital signage files directly from the console without hooking up an external computer asset.

Precision 12-Point Edge-Warping Calibration and Maintenance-Free 20,000-Hour Lifespan

For advanced setups involving curved display partitions or uneven architectural surfaces, the projector integrates a 12-point digital edge-warping adjustment wizard. This professional software tool allows installers to tune twelve distinct perimeter coordinates across the display field to secure a flat, beautifully squared projection layout. Engineered to withstand heavy, continuous operational cycles, the completely sealed laser optical engine offers an exceptional, maintenance-free lifestyle of up to 20,000 hours of continuous operation. This eliminates the budget-draining bulb replacements, filter cleanings, and system downtime common with traditional presentation hardware. Partnering with Trianze Tech connects your workplace setup with industry-leading commercial equipment backed by elite system design, fast local shipping, and long-term tech support.

Technical Parameter Industrial Specification
Brand & Model LG ProBeam BF50NST
Display Technology Digital Light Processing (DLP) Matrix
Native Resolution WUXGA (1920 x 1200)
Brightness Up to 5000 ANSI Lumens
Contrast Ratio 3,000,000:1 (Dynamic Contrast Profile)
Light Source Type High-Efficiency Solid-State Laser Diode Matrix
Light Source Lifespan Up to 20,000 Hours Continuous Full-Power Operation
Throw Ratio Range 1.30 – 2.08 (Flexible Standard to Long Throw Lens)
Optical Zoom Factor 1.6x Manual Mechanical Zoom
Lens Shift Range Horizontal: ±20% | Vertical: ±50% (Mechanical Optical Shift)
Screen Size Range 40 inches to 300 inches (Diagonal Matrix)
Aspect Ratio 16:10 Native (Enterprise Workspace Standard)
HDR Processing HDR10 / High Dynamic Range Compatibility
Smart Operating System LG webOS 4.5 Embedded Smart Platform
Unified Network Protocol Integrated HDBaseT Receiver RJ45 Port
Wireless Connectivity Miracast (Screen Share), Wireless DLNA, Bluetooth Sound Sync
Geometric Calibration 12-Point Digital Edge Adjustment & Warping Layout
Connectivity (Input) 2 x HDMI 2.0, 1 x HDBaseT (RJ45), 2 x USB 2.0 Type-A, 1 x RJ45 LAN (Control)
Audio & Control Interfaces 1 x 3.5mm Audio Out, RS-232C Control Port, 12V Trigger Out
Integrated Audio System Built-in Stereo Speakers (10W Total / 5W + 5W Stereo)
Physical Dimensions (W x H x D) 370.0 mm x 153.7 mm x 290.0 mm
Net Product Weight 9.2 kg (Lightweight Commercial Chassis)
Media & Video Reference Official LG ProBeam Overview
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The LG ProBeam BF50NST is stocked and supported directly by Trianze Tech, a top-tier provider of professional AV integration, commercial presentation systems, and enterprise IT hardware across Dubai, Abu Dhabi, and the wider UAE. Sourcing through Trianze Tech ensures genuine local inventory, fast local shipping, and direct access to expert technical backup.
WUXGA features a 1920x1200 pixel resolution matrix in a 16:10 aspect ratio layout. This offers an 11% increase in vertical screen estate compared to standard 1080p (1920x1080). This extra height is critical for business presentations because it lets teams see additional vertical rows in data spreadsheets, uncropped software sidebars, and more text fields during presentations.
Running long HDMI lines past 15 meters usually causes signal degradation, dropouts, or requires costly active booster boxes. The BF50NST features a built-in HDBaseT receiver, letting installers run a single standard Cat6 network cable up to 100 meters away to deliver uncompressed high-definition video, audio, and network control lines straight to the projector mount.
Yes. If structural ceiling obstructions like structural beams or HVAC ventilation ducts prevent the projector from being mounted directly center with the screen, the mechanical lens shift system allows installers to manually shift the lens vertically by ±50% and horizontally by ±20%. This squares the display field onto the screen perfectly without introducing digital keystone distortion.
No. The LG BF50NST relies on a completely solid-state laser diode array paired with a sealed optical block that functions filter-free. This system provides a maintenance-free runtime of up to 20,000 hours before encountering a noticeable brightness drop, effectively eliminating the costs associated with replacement lamps and downtime.
