LG ProBeam BF60NST WUXGA Commercial Laser Projector (6000 ANSI Lumens, 1.6x Zoom, Lens Shift, webOS Signage 5.0, HDBaseT)

Skip to product information
1 of 7

LG ProBeam BF60NST WUXGA Commercial Laser Projector (6000 ANSI Lumens, 1.6x Zoom, Lens Shift, webOS Signage 5.0, HDBaseT)

LG ProBeam BF60NST WUXGA Commercial Laser Projector (6000 ANSI Lumens, 1.6x Zoom, Lens Shift, webOS Signage 5.0, HDBaseT)

Massive 6000 ANSI Lumens Core: Engineered with industrial-grade laser diodes that deliver immense brightness, cutting through severe glare in floodlit environments.

Native WUXGA Corporate Resolution: Provides an enterprise-standard 1920x1200 resolution canvas in a 16:10 ratio, perfectly matching modern workplace laptops.

Unified Single-Cable HDBaseT: Streamlines complex institutional AV infrastructure by routing uncompressed HD video, audio, and network controls over a single LAN cable up to 100m.

Pro Mechanical Lens Shift & 1.6x Zoom: Simplifies structural ceiling mounting with vertical ±50% and horizontal ±20% optical tracking adjustments to bypass fixed room fixtures.

Embedded webOS Signage 5.0: Features a self-sufficient commercial operating environment for fluid local file playback, web browsing, and centralized network control.

LG
Brand : LG
Model : BF60NST

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

The LG ProBeam BF60NST is custom-engineered for spacious, high-ambient-light venues and large organizational settings across the GCC. In university lecture theaters, multi-purpose corporate auditoriums, and large-scale training centers, its 6000 ANSI Lumens core delivers a sweeping 300-inch canvas that remains perfectly clear under daytime illumination. It is an outstanding choice for government command and control rooms, corporate financial trading floors, and large house of worship venues requiring an enterprise-grade 16:10 WUXGA layout. Thanks to its integrated single-cable HDBaseT receiver, it is highly valued by IT teams managing extensive networked AV infrastructures across sprawling institutional campuses.

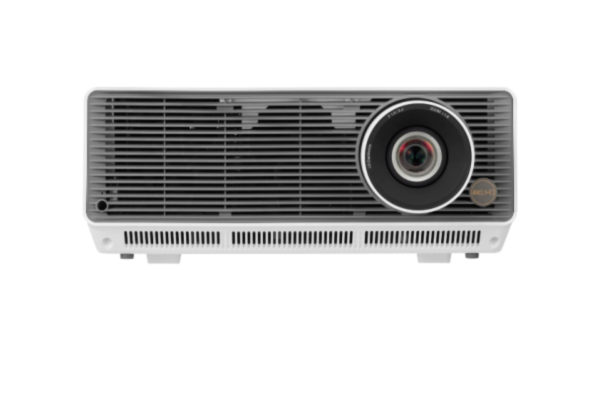

LG-ProBeam-BF60NST-WUXGA-6000-lumens-commercial-laser-projector-front-view-trianze-tech
  • Specifications
  • Details
Technical Parameter Industrial Specification
Brand & Model LG ProBeam BF60NST
Display Technology Digital Light Processing (DLP) Matrix
Native Resolution WUXGA (1920 x 1200)
Brightness Up to 6000 ANSI Lumens
Contrast Ratio 3,000,000:1 (Dynamic Contrast Profile)
Light Source Type High-Efficiency Solid-State Laser Diode Matrix
Light Source Lifespan Up to 20,000 Hours Continuous Full-Power Operation
Throw Ratio Range 1.30 – 2.08 (Flexible Standard to Long Throw Lens)
Optical Zoom Factor 1.6x Manual Mechanical Zoom
Lens Shift Range Horizontal: ±20% | Vertical: ±50% (Mechanical Optical Shift)
Screen Size Range 40 inches to 300 inches (Diagonal Matrix)
Aspect Ratio 16:10 Native (Ideal for Enterprise Workstations & Laptops)
HDR Processing HDR10 / High Dynamic Range Compatibility
Smart Operating System LG webOS Signage 5.0 Embedded Smart Platform
Unified Network Protocol Integrated HDBaseT Receiver RJ45 Port
Wireless Connectivity Miracast (Screen Share), Wireless DLNA, Bluetooth Sound Sync
Geometric Calibration 12-Point Digital Edge Adjustment & Warping Layout

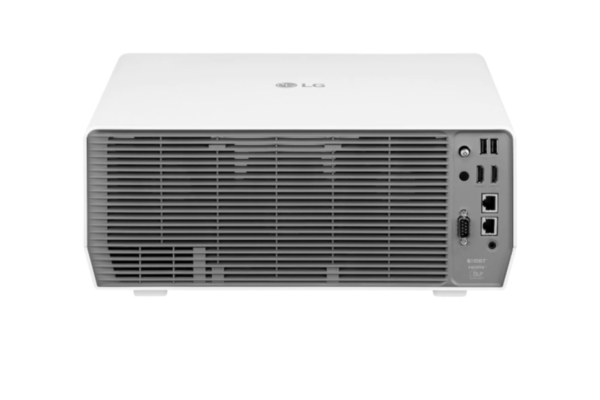

Connectivity (Input) 2 x HDMI 2.0, 1 x HDBaseT (RJ45), 2 x USB 2.0 Type-A, 1 x RJ45 LAN (Control)
Audio & Control Interfaces 1 x 3.5mm Audio Out, RS-232C Control Port, 12V Trigger Out
Integrated Audio System Built-in Stereo Speakers (10W Total / 5W + 5W Stereo)
Physical Dimensions (W x H x D) 370.0 mm x 153.7 mm x 290.0 mm
Net Product Weight 9.2 kg (Lightweight Commercial Chassis)
Media & Video Reference Official LG ProBeam Overview

Industrial-Grade 6000 ANSI Lumens Brightness and Native WUXGA Corporate Canvas

The LG ProBeam BF60NST WUXGA Commercial Laser Projector represents a premier engineering solution for high-density corporate environments, expansive academic lecture theaters, and demanding public visualization spaces. Distributed across the UAE and GCC markets by Trianze Tech—the leading authority for commercial AV integration and premium IT hardware distribution—this professional-grade installation asset is custom-tailored to conquer intense ambient light conditions across Dubai and Abu Dhabi. Harnessing a heavy-duty solid-state laser diode matrix that fires a blinding 6000 ANSI Lumens, the BF60NST guarantees that presentations, technical graphics, and video matrices remain beautifully saturated and readable, even under harsh overhead office fluorescent lighting. Delivering a native WUXGA (1920x1200) resolution layout, it offers a crisp 16:10 aspect ratio canvas that provides extra vertical display space—making it uniquely suited for rendering complex data sheets, control grids, and modern business software configurations with ultimate sharpness.

Advanced Physical Integration with Optical Lens Shift and Long-Distance HDBaseT

A major structural breakthrough of the BF60NST is its highly versatile optical system, engineered to overcome restrictive architectural obstacles during ceiling-mounted commercial installation. The projector integrates a flexible 1.6x manual mechanical zoom factor alongside an advanced mechanical lens shift system (Horizontal ±20% / Vertical ±50%). This allows integration technicians to adjust the position of the projection field without moving the physical chassis, enabling them to eliminate skewed layouts caused by off-center mounts, light fixtures, or air vents. For sprawling commercial layouts, the integrated HDBaseT receiver terminal revolutionizes network architecture. Instead of relying on expensive and delicate HDMI extenders, IT crews can run uncompressed video, audio, network data, and system commands over a single standard Cat6 LAN cable up to 100 meters.

Autonomous webOS Signage 5.0 Platform and Rugged Maintenance-Free Design

At its software core, the projector runs on LG's hardened webOS Signage 5.0 enterprise software, transforming it into a self-sufficient digital workplace terminal. The system bridges seamlessly with existing corporate networks, allowing IT helpdesks to remotely adjust settings, monitor device health, or schedule multi-room content files. For fast-paced collaborative meetings, it supports fluid Miracast wireless screen sharing, enabling guest speakers and company team members to cast high-definition screens instantly from compatible Windows laptops, tablets, or Android devices. Built to handle grueling commercial operational cycles, the completely sealed laser optical block provides a maintenance-free lifespan of up to 20,000 hours of continuous operation, removing expensive downtime and bulb replacement costs entirely. Sourcing your equipment from Trianze Tech equips your office with class-leading commercial hardware paired with elite layout design, rapid local shipping, and long-term tech support.

Technical Parameter Industrial Specification
Brand & Model LG ProBeam BF60NST
Display Technology Digital Light Processing (DLP) Matrix
Native Resolution WUXGA (1920 x 1200)
Brightness Up to 6000 ANSI Lumens
Contrast Ratio 3,000,000:1 (Dynamic Contrast Profile)
Light Source Type High-Efficiency Solid-State Laser Diode Matrix
Light Source Lifespan Up to 20,000 Hours Continuous Full-Power Operation
Throw Ratio Range 1.30 – 2.08 (Flexible Standard to Long Throw Lens)
Optical Zoom Factor 1.6x Manual Mechanical Zoom
Lens Shift Range Horizontal: ±20% | Vertical: ±50% (Mechanical Optical Shift)
Screen Size Range 40 inches to 300 inches (Diagonal Matrix)
Aspect Ratio 16:10 Native (Ideal for Enterprise Workstations & Laptops)
HDR Processing HDR10 / High Dynamic Range Compatibility
Smart Operating System LG webOS Signage 5.0 Embedded Smart Platform
Unified Network Protocol Integrated HDBaseT Receiver RJ45 Port
Wireless Connectivity Miracast (Screen Share), Wireless DLNA, Bluetooth Sound Sync
Geometric Calibration 12-Point Digital Edge Adjustment & Warping Layout
Connectivity (Input) 2 x HDMI 2.0, 1 x HDBaseT (RJ45), 2 x USB 2.0 Type-A, 1 x RJ45 LAN (Control)
Audio & Control Interfaces 1 x 3.5mm Audio Out, RS-232C Control Port, 12V Trigger Out
Integrated Audio System Built-in Stereo Speakers (10W Total / 5W + 5W Stereo)
Physical Dimensions (W x H x D) 370.0 mm x 153.7 mm x 290.0 mm
Net Product Weight 9.2 kg (Lightweight Commercial Chassis)
Media & Video Reference Official LG ProBeam Overview
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The LG ProBeam BF60NST is stocked and supported directly by Trianze Tech, a top-tier provider of professional AV integration, high-brightness commercial presentation systems, and enterprise IT hardware across Dubai, Abu Dhabi, and the wider UAE. Sourcing through Trianze Tech ensures genuine local inventory, fast local shipping, and direct access to expert technical backup.
WUXGA features a native resolution of 1920x1200 pixels in a 16:10 aspect ratio, whereas standard 1080p offers 1920x1080 in a 16:9 ratio. This extra vertical resolution provides 11% more screen real estate, which is highly beneficial for corporate environments because it allows users to view more rows on Excel spreadsheets, larger programming code blocks, and taller technical layout grids without excessive scrolling.
Traditional HDMI cables experience severe signal degradation and dropouts when run longer than 15 meters, requiring expensive dedicated signal amplifier kits. The BU60NST's built-in HDBaseT receiver allows video, audio, and network controls to travel uncompressed over a single Cat6 network cable run up to 100 meters, eliminating extra extension hardware costs while simplifying the physical cabling layout.
Yes. If structural ceiling obstacles like structural beams or HVAC ventilation ducts prevent the projector from being mounted directly center with the screen, the mechanical lens shift system allows installers to manually shift the lens vertically by ±50% and horizontally by ±20%. This squares the display field onto the screen perfectly without introducing digital keystone distortion.
Yes. The LG BF60NST is designed with an industrial-grade cooling chassis and an optimized airflow design to support extended operation cycles in demanding commercial spaces. Its solid-state laser diode engine operates filter-free and maintains stable, continuous high-brightness performance for up to 20,000 hours before encountering a noticeable brightness drop.
