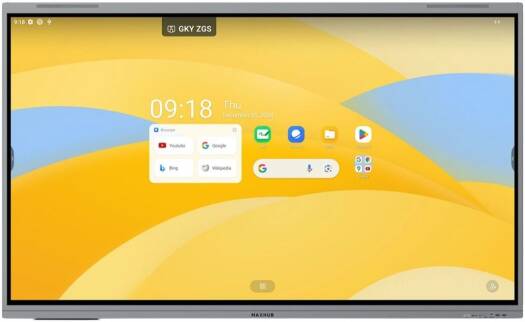

MAXHUB S7520 Interactive Display, 75" TFT LCD Module with DLED Backlight, 4K UHD Resolution, 6.5ms Response Time, 50 Touch Points, IR Touch Type, 2x 20 W Speakers | S7520
MAXHUB S7520 Interactive Display, 75" TFT LCD Module with DLED Backlight, 4K UHD Resolution, 6.5ms Response Time, 50 Touch Points, IR Touch Type, 2x 20 W Speakers | S7520
MAXHUB S7520 Interactive Display, 75" TFT LCD Module with DLED Backlight, 4K UHD Resolution, 6.5ms Response Time, 50 Touch Points, IR Touch Type, 2x 20 W Speakers | S7520
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
- 75" TFT LCD module with DLED backlight Display
- 4K UHD (3840 × 2160) Resolution
- 6.5 ms Response Time
- 50 Touch Points
-
IR Touch Type
Specifications
LCD Screen Size 75" Type TFT LCD module with DLED backlight DC Dimming Yes (Flicker Free) Resolution 3840 × 2160 (4K UHD) Orientation Landscape Brightness (Typ./Max.) 400 / 450 nits Viewing Angle H: 178° / V: 178° (typ.) Contrast Ratio 5000:1 (typ.), 50,000:1 (dynamic) Operating Hour 16 / 7 Frequency 60 Hz Backlight DLED Response Time 6.5 ms Color Gamut 98% sRGB Backlight Lifetime ≥ 50,000 hrs Haze 25% I/O Ports USB 2.0 ×1, 3.0 ×4, Type-C ×2 (USB 2.0+DP+5V3A; USB 2.0+DP+PD65W/15W with OPS) Touch Out Type-B (USB 3.0) ×2 HDMI In (2.0) ×3, Out (2.0) ×1 DP In ×1 VGA In ×1 RJ45 In ×1 (10/100/1000 Mbps), Out ×1 (10/100/1000 Mbps) Audio PC Audio In (3.5 mm) ×1, Audio Out (3.5 mm) ×1, SPDIF ×1 RS232 ×1 OPS Slot Internal connector ×1 TF Card Slot ×1 Wi-Fi Module SI07B SoC CPU A72 ×4 + A53 ×4 GPU G52 MC3 NPU 6 TOPS Touch System Type IR Touch Points 50 Accuracy ±0.5 mm (90% area) Min. Touch Object 1.5 mm Writing Height 1 mm Response Time < 2.5 ms Multi-Level ID 4 Bonding Zero bonding Palm Rejection Yes Operating System Android 14, Google EDLA Certified Storage RAM 8 GB, ROM 128 GB Camera Quantity 1 Pixel 50 MP FOV 99° DFOV Position Middle Features Manual Mode, Auto Framing, Speaker Tracking Microphone Quantity 8 Pickup Distance 0 12 m Audio 2 × 20 W speakers Accessory Power Cord (3 m) ×1, Passive Touch Pen ×2 (SW13F), Power Adaptor Power AC-In 100 240 VAC ±10% Sensor Light Sensor Button Power Button Physical Specification Dimension (W×H×D) 1709 × 1039 × 98 mm Shipping Dimension 1863 × 225 × 1163 mm Thickness (with wall mount) 128 mm (WIB9060H) Wall Mount M8 × 25 mm, VESA 800 × 400 mm Net Weight 44.25 kg Gross Weight 54.15 kg Environmental Condition Operating Temp. 0°C ~ 40°C Storage Temp. -20°C ~ 60°C Operating Humidity 10% ~ 90% RH Storage Humidity 10% ~ 90% RH Altitude < 5000 m Software System OS MAXHUB EDU OS V4 Whiteboard Tool MAXHUB Class Pro Screen Sharing MAXHUB Connect Device Management MAXHUB Pivot Google Apps Play, Drive, Meet, Maps, YouTube, etc. Other Apps Browser, Cloud Drive, Note, Palette, etc.
