Samsung TS-2 Series 65" 650TS-2 Commercial Optical Touchscreen Smart Interactive Display

Samsung TS-2 Series 65" 650TS-2 Commercial Optical Touchscreen Smart Interactive Display

Embedded Optical Touch System: High-accuracy interactive overlay supports fluid writing, drawing, and UI mapping annotation.

High-Impact 500-Nit Brightness: High-luminance commercial panel cuts cleanly through ambient office glare to prevent content fading.

Integrated 30W Stereo Audio: Dual 15W built-in speaker modules deliver full room audio coverage without requiring external speakers.

Comprehensive Input Patch Panel: Houses native HDMI, DisplayPort, DVI-D, and dual VGA links to ensure seamless device connectivity.

PIP & PBP Multi-Source Control: Splits the 65" presentation field into multi-window layouts for real-time asset comparison.

Network-Wide LAN/RS232C MDC: Enables IT technicians to execute remote power schedules, firmware updates, and input switching.

Rugged Commercial Build with Sensors: Features onboard temperature monitoring and auto-brightness optimization for 16/7 durability.

Samsung
Brand : Samsung
Model : 650TS-2 (650TS2 / Series TS)

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Corporate Boardrooms: High-impact collaborative strategy sessions and remote presentation loops in Dubai and Riyadh.

Higher Education & Training Halls: Immersive lecture notes, real-time annotations, and video playback across Cairo and Nairobi.

Command & Briefing Rooms: Multi-window dashboard tracking and layout mapping configurations in Almaty and Tashkent.

Public Information Kiosks: Interactive map directories and schedules inside institutional centers across the GCC and CIS regions.

Suggested Push-Pull Wall Mount - VSVW13-46T

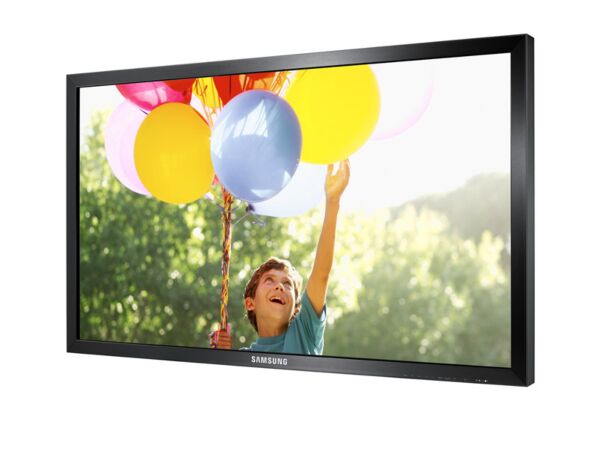

Samsung TS-2 Series 65 inch 650TS-2 commercial optical touchscreen smart interactive display whiteboard
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN 650TS-2 (650TS2 / Series TS)
Display Size & Type 65-inch Commercial CCFL-Backlit LCD Interactive Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Universal Widescreen Ratio
Touch Technology Embedded Optical Touch Sensing System
Panel Brightness 500 nits (Typical) high-luminance output for clear data legibility
Contrast Ratio 5000:1 (Static) | 10,000:1 (Dynamic Contrast Ratio)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Structural Viewing Geometry
Glass Treatment Reinforced Anti-Glare Coating with Anti-Retention Software
Integrated Audio High-Output 30W Multimedia Speakers (15W + 15W Dual Channel)
Duty Cycle / Reliability 16 Hours / 7 Days Continuous Commercial Operation

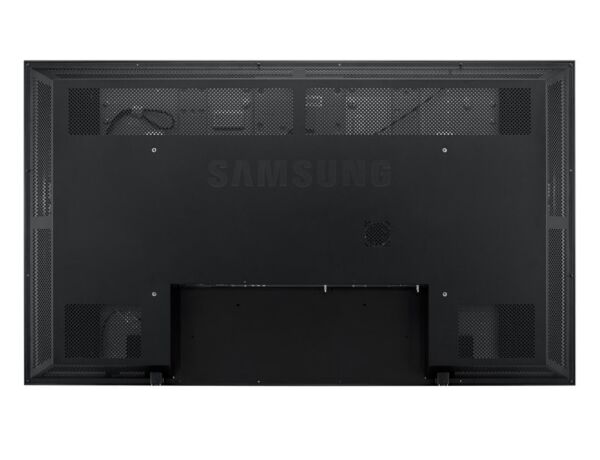

Video Input Interfaces 1x HDMI, 1x DVI-D, 1x DisplayPort, 2x VGA (D-Sub), Component, S-Video
Video Output Loop 1x VGA (D-Sub) Out | Supports Matrix Video Wall Scaling up to 5x5
Data & Control Ports USB (Touch Interface), RS232C In/Out, RJ45 LAN, Audio In/Out
Advanced Features PIP/PBP (Picture-in-Picture), Brightness & Temperature Sensors, Button Lock
Mechanical Dimensions 61.2" x 36.4" x 5.4" (Without Stand) | Weight: ~65.0 kg
Mounting Architecture VESA Mount Standard: 800 x 400 mm

Accelerate boardroom collaboration and classroom engagement with the heavy-duty Samsung TS-2 Series 65" Interactive Display (650TS-2). Built specifically as an all-in-one hardware solution for interactive presentations, this 65-inch commercial-grade touchscreen features an integrated Optical Touch Sensing System. This highly responsive touch framework allows presenters, educators, and team leaders to write, draw, annotate, and navigate complex system layouts natively using a passive stylus or finger gesture, providing fluid UI control without input lag. Operating at a powerful 500 nits of typical brightness, the high-luminance panel works alongside a 5000:1 static contrast ratio to preserve data readability under harsh, direct overhead lighting setups across Dubai, Riyadh, and Doha.

The mechanical architecture of the 650TS-2 is tailored for versatile, long-term commercial integration. The display includes a built-in 30W multimedia stereo speaker array (15W + 15W) that delivers clear audio projection across large training halls or corporate meeting rooms, completely removing the need to procure external audio equipment. On the connectivity front, the display houses a massive interface patch panel—including HDMI, DVI-D, DisplayPort, and dual VGA inputs—enabling frictionless device swapping for visiting teams. For installations stretching across Africa and the CIS region, the monitor supports advanced Multi-Display Control (MDC) through RS232C and RJ45 LAN channels, allowing IT managers to control and program multiple screens remotely from a central dashboard.

To handle multi-source presentation requirements, the interactive board features hardware-accelerated PIP (Picture-in-Picture) and PBP (Picture-by-Picture) scaling modes, letting teams inspect side-by-side video feeds and live presentations concurrently. The structural housing is built around a non-glossy, heavy-duty chassis featuring built-in temperature tracking and ambient light sensors that dynamically adapt backlight intensity to conserve power. TrianzeTech secures your high-value collaborative hardware assets by providing dedicated enterprise freight routing, reinforced industrial pallet stabilization, and complete international shipping tracking.

Technical Parameter Specification / Feature Details
Model / MPN 650TS-2 (650TS2 / Series TS)
Display Size & Type 65-inch Commercial CCFL-Backlit LCD Interactive Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Universal Widescreen Ratio
Touch Technology Embedded Optical Touch Sensing System
Panel Brightness 500 nits (Typical) high-luminance output for clear data legibility
Contrast Ratio 5000:1 (Static) | 10,000:1 (Dynamic Contrast Ratio)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Structural Viewing Geometry
Glass Treatment Reinforced Anti-Glare Coating with Anti-Retention Software
Integrated Audio High-Output 30W Multimedia Speakers (15W + 15W Dual Channel)
Duty Cycle / Reliability 16 Hours / 7 Days Continuous Commercial Operation
Video Input Interfaces 1x HDMI, 1x DVI-D, 1x DisplayPort, 2x VGA (D-Sub), Component, S-Video
Video Output Loop 1x VGA (D-Sub) Out | Supports Matrix Video Wall Scaling up to 5x5
Data & Control Ports USB (Touch Interface), RS232C In/Out, RJ45 LAN, Audio In/Out
Advanced Features PIP/PBP (Picture-in-Picture), Brightness & Temperature Sensors, Button Lock
Mechanical Dimensions 61.2" x 36.4" x 5.4" (Without Stand) | Weight: ~65.0 kg
Mounting Architecture VESA Mount Standard: 800 x 400 mm
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Traditional touchscreen designs that rely on sensitive, thin film overlays can wear down or lose tracking calibration after heavy daily use. The 650TS-2 features an integrated Optical Touch Sensing System that utilizes light-based sensor tracks embedded within the perimeter frame corners. This system registers touch inputs from any object—whether a finger, gloved hand, or passive stylus pointer—maintaining flawless coordination and responsiveness for corporate teams in Dubai and Riyadh.
Setting up auxiliary soundbars or ceiling speakers requires additional audio cabling, external amplifiers, and separate mounting brackets, which increases project overhead. The 650TS-2 streamlines space installation by integrating a high-output 30W (15W + 15W) stereo speaker array directly into the structural housing. This delivers crisp voice and multimedia audio projection across medium-to-large meeting rooms without adding extra hardware lines.
Operating high-brightness screens in changing ambient light or enclosed spaces can cause thermal buildup and unnecessary power consumption. The 650TS-2 addresses this with built-in ambient brightness and internal temperature sensors. The brightness sensor dynamically adjusts the CCFL backlight system to match room illumination, while the thermal sensor constantly tracks core heat metrics to prevent component degradation over long display sessions in Africa and the CIS region.
Manually configuring input channels or adjusting volumes across multiple presentation displays requires on-site technicians to manually use IR remotes at each display. The 650TS-2 features comprehensive RS232C and RJ45 LAN Multi-Display Control (MDC). This allows IT departments to execute automated power schedules, switch presentation sources, and monitor panel health status remotely from a centralized server network.
During cross-departmental briefings, team members frequently need to compare static data sets or document files alongside a live video conference feed. The 650TS-2 includes hardware-accelerated Picture-in-Picture (PIP) and Picture-by-Picture (PBP) display layouts. This engineering allows the 65-inch screen canvas to segment and showcase distinct active video sources at the same time, maximizing decision-making speed across corporate offices in Almaty or Cairo.
