Samsung DHE Series 55" DH55E Slim Direct-Lit LED 24/7 Professional Commercial Signage Display

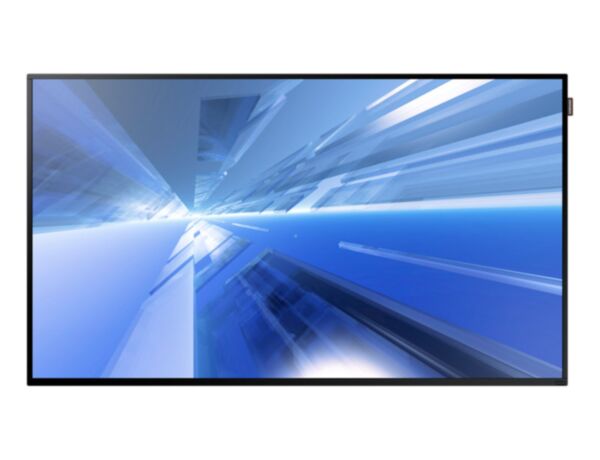

  • Samsung DHE Series 55 inch DH55E LH55DHEPLGC/UE slim direct lit LED 700 nits 24/7 commercial signage display

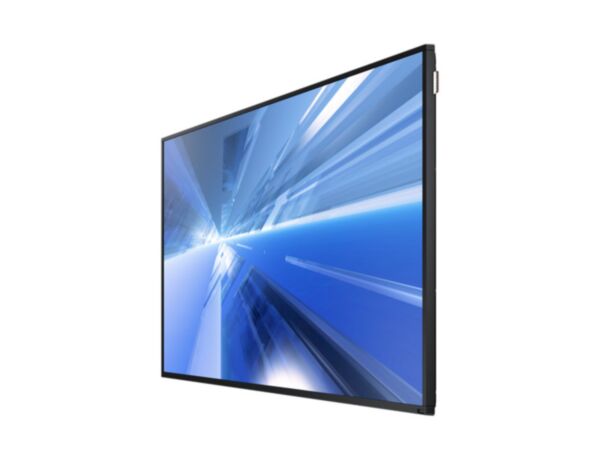

  • Side view highlighting the ultra thin 49.9mm chassis thickness profile of a Samsung DH55E professional monitor
1 5

Samsung DHE Series 55" DH55E Slim Direct-Lit LED 24/7 Professional Commercial Signage Display

Samsung DHE Series 55" DH55E Slim Direct-Lit LED 24/7 Professional Commercial Signage Display

Continuous 24/7 Heavy-Duty Runtime: High-reliability internal components and cooling layout optimized for non-stop industrial operation.

Premium 700-Nit Brightness Panel: Pushes extreme luminance to block ambient lighting washout and preserve visual depth.

Ultra-Slim 49.9mm Cabinet Thickness: Low-profile structural engineering enables flush wall alignment to blend smoothly into premium interiors.

Onboard SSSP Gen 3 & MagicINFO S3: Internal quad-core SoC decodes complex media files and plays overlays natively without external PCs.

DisplayPort 1.2 Native UHD Loop-Out: Links and routes high-definition signals sequentially across matrix layouts up to a 10x10 grid.

9.5mm Narrow Uniform Bezel: Slim border frames maximize the active viewing area and facilitate neat side-by-side positioning.

Centralized Network Control via MDC: RJ45 LAN and RS232C connections allow remote power programming, error tracking, and source switching.

Samsung
Brand : Samsung
Model : DH55E (LH55DHEPLGC/UE / LH55DHEPLGC)

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Full Motion Wall Bracket - VS02SE-466

Samsung DHE Series 55 inch DH55E LH55DHEPLGC/UE slim direct lit LED 700 nits 24/7 commercial signage display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN DH55E (LH55DHEPLGC/UE / LH55DHEPLGC)
Display Size & Type 55-inch Slim Direct-Lit LED (Slim d-LED BLU) 60Hz Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) high-luminance output for extreme visibility
Contrast Ratio 5000:1 (Static Layout) | 50,000:1 (Dynamic Contrast Ratio)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Response Time 6 ms (Gray-to-Gray)
Onboard SoC Platform Samsung Smart Signage Platform Gen 3 (SSSP v3)
Internal Player Engine MagicINFO Player S3 (Embedded Linux SoC Architecture)
Processor & Memory Quad-Core Cortex-A12 CPU (1.3 GHz) | 1.5GB DDR3 RAM | 8GB Storage
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Mission-Critical Operation
Chassis Profile Depth Ultra-Slim 49.9 mm (1.96 inches) structural cabinet thickness
Bezel Width Profile 9.5 mm (Top/Side), 15.0 mm (Bottom) Narrow Visual Border
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), 1x USB 2.0
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 10x10)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Mechanical Dimensions 1230.6 x 706.9 x 49.9 mm | VESA Mount: 400 x 400 mm | Weight: ~15.4 kg

Deliver uninterrupted visual excellence without overcrowding your interior spaces with the premium Samsung DHE Series 55" Slim Direct-Lit Display (LH55DHEPLGC/UE). Meticulously engineered to blend structural refinement with heavy-duty performance, this commercial-grade display features an ultra-slim 49.9mm cabinet depth. Operating on a relentless 24/7 continuous duty cycle, the DH55E serves as a high-reliability visual anchor for public transit kiosks, bank lobby paths, and control center feeds. Blasting an elite 700 nits of typical brightness alongside an incredible 5000:1 static contrast ratio, the direct-lit LED panel punches effortlessly through high-intensity glare to keep messages, metrics, and advertising visuals vibrant across Dubai, Riyadh, and Doha.

The hardware architecture completely eliminates the clutter of external computers and secondary video switchers by integrating the third-generation Samsung Smart Signage Platform (SSSP Gen 3). Driven by a powerful embedded quad-core Cortex-A12 CPU and a native MagicINFO Player S3 engine, the monitor decodes, schedules, and loops rich overlay layouts natively from local storage or streaming endpoints. For high-impact visual grids stretching across Africa and the CIS region, the board features hardware-accelerated DisplayPort 1.2 digital loop-out connections. This enables project integration teams to pipe a master feed into the initial display and daisy-chain uncompressed UHD content down the line for layouts up to a 10x10 matrix without requiring external graphic distribution amplifiers.

To match modern commercial interior aesthetics, the screen is wrapped in a narrow 9.5mm side bezel frame, maintaining visual balance whether configured in standard landscape or rotated portrait layouts. The rugged housing also incorporates smart eco-sensors that dynamically measure ambient room light to optimize backlight output, lowering total cost of ownership (TCO) over long deployments. TrianzeTech simplifies high-tier commercial workspace rollouts by managing certified multi-pack pallet routing, freight safety enforcement, and completely tracked B2B transport logistics.

Technical Parameter Specification / Feature Details
Model / MPN DH55E (LH55DHEPLGC/UE / LH55DHEPLGC)
Display Size & Type 55-inch Slim Direct-Lit LED (Slim d-LED BLU) 60Hz Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) high-luminance output for extreme visibility
Contrast Ratio 5000:1 (Static Layout) | 50,000:1 (Dynamic Contrast Ratio)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Response Time 6 ms (Gray-to-Gray)
Onboard SoC Platform Samsung Smart Signage Platform Gen 3 (SSSP v3)
Internal Player Engine MagicINFO Player S3 (Embedded Linux SoC Architecture)
Processor & Memory Quad-Core Cortex-A12 CPU (1.3 GHz) | 1.5GB DDR3 RAM | 8GB Storage
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Mission-Critical Operation
Chassis Profile Depth Ultra-Slim 49.9 mm (1.96 inches) structural cabinet thickness
Bezel Width Profile 9.5 mm (Top/Side), 15.0 mm (Bottom) Narrow Visual Border
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), 1x USB 2.0
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 10x10)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Mechanical Dimensions 1230.6 x 706.9 x 49.9 mm | VESA Mount: 400 x 400 mm | Weight: ~15.4 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard high-brightness commercial displays often feature bulky, deep enclosures that extend past 100mm from the partition, requiring custom wall recess cuts to meet building code safety standards. The mechanical framework of the DH55E packs a complete direct-lit LED engine into an ultra-thin 49.9mm profile depth. When matched with low-profile bracket hardware, the finished installation hangs flush, keeping corridors wide open and meeting structural building standards across corporate footprints in Dubai and Riyadh.
Attaching standalone media players behind a display panel complicates your cable mapping and creates more physical points of failure, such as loose HDMI plugs or hardware crashes. The DH55E resolves this operational challenge by embedding the SSSP Gen 3 hardware architecture driven by an internal quad-core CPU and MagicINFO S3 software. This allows network managers to stream, schedule, and cache content directly to the display natively, dropping hardware maintenance tickets across Africa and the CIS region.
Basic digital signage screens typically deliver a low 350-nit output, which easily washes out under direct afternoon sunlight or intense corporate lighting grids. The DH55E features an advanced Slim Direct-Lit LED panel that delivers a powerful 700 cd/m² (nits) of brightness. This heavy-duty lighting power cuts through reflections to preserve a clear static contrast field, keeping text strings, schedule graphics, and menu files completely legible.
Yes. To distribute high-definition content feeds down a line of multiple displays without introducing signal lag or frame stuttering, legacy systems require external matrix distribution servers. The LH55DHEPLGC/UE includes hardware-accelerated DisplayPort 1.2 input and digital loop-out routing. This enables technical teams to cascade an uncompressed source signal sequentially from panel to panel, natively scaling layouts up to a 10x10 array configuration without needing external signal amplifiers at sites in Almaty or Cairo.
In mission-critical monitoring spaces or finance rooms, standard low-contrast displays blur fine details, causing grey text to blend into dark backgrounds and causing operator eye strain. The DH55E boasts an industry-leading 5000:1 static contrast ratio, ensuring crisp division between deep blacks and sharp whites. This high performance guarantees that fine spreadsheets, real-time stock ticks, and detailed mapping vectors remain razor-sharp for continuous reading during around-the-clock shift cycles.
