• Display Configuration: The monitor features a 32-inch commercial-grade interactive screen built upon an advanced New Edge LED-backlit (Edge LED BLU) active matrix framework.

• Touch Interface and Technology: It integrates high-speed, 10-point multi-touch Projected Capacitive Touch (P-Cap) technology using an invisible micro-fine sensor grid embedded directly behind the front protective glass.

• Resolution and Scaling Architecture: It operates at a native Full HD resolution of $1920 \times 1080$ pixels, supported by an intelligent internal video engine capable of processing 4K signal inputs.

• Luminance and Visibility Performance: The screen outputs 400 nits of typical panel brightness without the glass, and maintains a high-visibility 300 nits of continuous luminance with the active touch glass layer installed.

• Contrast Performance: It achieves a deep 5000:1 static contrast ratio alongside a Mega Dynamic Contrast Ratio to ensure clear text boundaries, maps, and UI elements.

• Color Capability: The panel features an advanced 10-bit dithered color depth processing system capable of displaying up to 1.07 billion distinct color variations.

• Viewing Uniformity: It provides wide 178-degree horizontal and 178-degree vertical viewing angles, preventing off-axis color shifts or fading in public walk-ups.

• Anti-Glare Surface Diffusion: The durable front touch glass features a professional non-glare haze coating that eliminates mirror-like reflections from bright overhead track lighting.

• Onboard Operating System: It runs the modern Samsung Smart Signage Platform (SSSP) architecture powered by a native Tizen Enterprise operating system.

• Internal Hardware Processing: The processing engine is driven by an integrated Cortex A72 1.7GHz quad-core CPU backed by 2.5GB of LPDDR4 system RAM and 8GB of onboard high-speed flash storage.

• Duty Cycle and Reliability: The touchscreen is rated for continuous 24/7 mission-critical commercial operation, backed by industrial-grade internal cooling.

• Environmental Shielding: The chassis features an IP5X certified dust-proof structural rating and a specialized protective conformal coating on the internal circuit boards to defend against repeated public interaction.

• Physical Cabinet Geometry: It features an interactive profile measuring 48.2 mm in total cabinet depth, with a symmetrical, narrow bezel frame measuring 24.5 mm on the top/bottom and 21.5 mm on the left/right sides.

• Mounting Integration: It natively supports both landscape and portrait mounting orientations, balanced perfectly by standard centered VESA 200 x 200 mm mounting points.

• Core Video Interfaces: Input options include two HDMI 2.0 terminals supporting HDCP 2.2 and one DisplayPort 1.2 port.

• Signal Loop-Through Output: It features an HDMI 2.0 loop-out port for daisy-chaining video arrays natively without external distribution splitters.

• Data and Core Connectivity: It features built-in dual-band Wi-Fi, Bluetooth, two USB 2.0 data ports, a dedicated Touch-Out USB Type-B upstream port, and one RJ45 LAN connector.

• Network Command Control: It includes RS232C control input and output loops via a standard 3.5 mm jack, allowing full remote Multi-Display Control (MDC) management.

• Built-In Audio System: It includes an integrated 20W 2-channel professional sound system consisting of dual 10W speakers built into the chassis.

Key Features

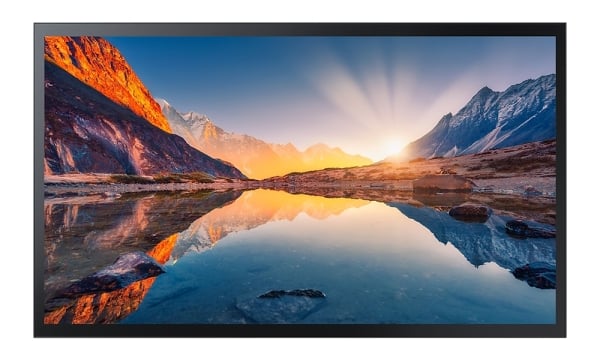

The Samsung QM32B-T represents an advanced all-in-one small-format interactive solution that eliminates the need for bulky add-on infrared frames or external PC hardware. Utilizing highly responsive Projected Capacitive Touch technology, the display provides an instantaneous, lag-free multi-touch interface that feels as smooth as a modern smartphone. Running on a robust Tizen Enterprise OS, the monitor serves as a powerful standalone interactive kiosk capable of driving custom wayfinding apps, digital menus, or transactional software natively out of the box. To withstand heavy public contact, the glass surface features an IP5X certified dust-proof enclosure and an invisible internal conformal coating, ensuring maximum up-time in demanding commercial settings.
