• Display Configuration: The panel features a 55-inch commercial-grade screen engineered with a slim Edge-Lit LED (E-LED BLU) backlight topology and an advanced Vertical Alignment (VA) liquid crystal matrix.

• Resolution and Refresh Fluidity: It operates at a native Ultra HD 4K resolution of $3840 \times 2160$ pixels, supporting a full 60Hz refresh rate natively over its dual DisplayPort 1.2 interface lines.

• Luminance and Ambient Output: The display outputs a continuous 500 nits of typical panel brightness, ensuring clear visibility in environments with bright overhead lighting.

• Contrast Performance: It achieves a high 4000:1 static contrast ratio paired with a Mega Dynamic Contrast Ratio to ensure crisp text boundaries and deep black level uniformity.

• Color Processing Architecture: The display uses a 10-bit dithered processing matrix capable of rendering over 1.07 billion distinct color shades across a 72% NTSC spectrum.

• Multi-Source Split Engine: It incorporates a native Quad-FHD Picture-by-Picture (PBP) and Picture-in-Picture (PIP) hardware processor that displays up to four isolated video feeds concurrently.

• Viewing Angle Coverage: It delivers uniform 178-degree horizontal and 178-degree vertical viewing windows, preventing off-axis color shifts or graphical fading.

• Anti-Glare Surface Glass: The front panel features a premium 25% non-glare haze diffusion coating that scatters direct reflections from artificial light sources.

• Hardware Expansion Support: The rear chassis includes a native Set-Back Box (SBB-DA/DI) extension module slide-in bay for slotting in an internal PC.

• Duty Cycle and Reliability: The monitor is rated for continuous 24/7 mission-critical commercial operation, backed by industrial-grade thermal dissipation systems.

• Environmental Infrastructure: The screen features an IP5X certified dust-proof structural rating that seals internal electronic pathways against airborne debris.

• Physical Cabinet Geometry: It features a narrow, symmetrical bezel profile measuring 12.0 mm on the top, bottom, and sides, with an overall chassis profile depth of 37.5 mm.

• Mounting Integration: It natively supports both landscape and portrait mounting orientations, balanced perfectly by standard centered VESA 400 x 400 mm structural hole arrangements.

• Core Video Interfaces: Input options include four HDMI 1.4 ports (supporting UHD at 30Hz), two DisplayPort 1.2 ports (supporting UHD at 60Hz), and one DVI-I lane.

• Data and Audio Connectivity: It features one stereo mini-jack input, one stereo mini-jack output, one USB service terminal, and an infrared loop receiver.

• Network Command Control: It provides RS232C control input and output loops via standard mini-jacks alongside an RJ45 LAN connector for Multi-Display Control (MDC) setups.

• Built-In Audio System: It includes an integrated 20W 2-channel professional sound system consisting of dual 10W speakers built into the chassis.

Key Features

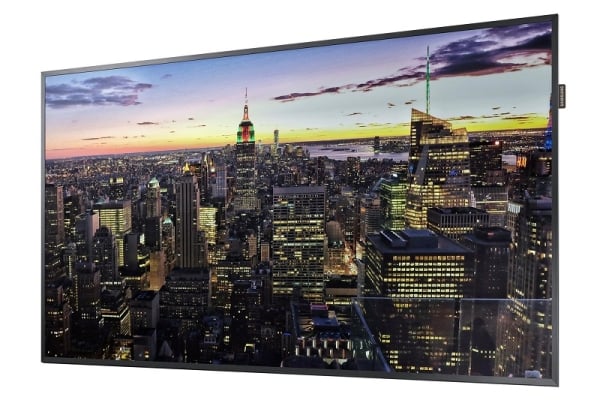

The Samsung QM55F is a specialized multi-screen commercial display designed to replace complex multi-monitor layouts with a single, seamless 4K glass canvas. Featuring a built-in Quad-FHD Picture-by-Picture (PBP) engine, it allows up to four entirely separate 1080p video feeds to tile simultaneously onto the screen without needing expensive external hardware matrix splitters. To ensure smooth video playback during complex data operations, its DisplayPort 1.2 connectivity natively loops 4K media at a full 60Hz frame rate, preventing the jerky motion common on lower-tier screens. This industrial screen includes an SBB slide-in expansion bay, allowing it to convert instantly into a self-contained, PC-driven workstation.
