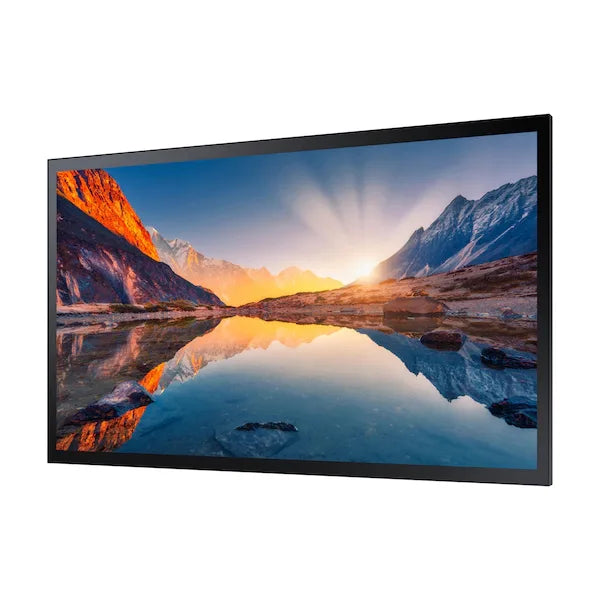

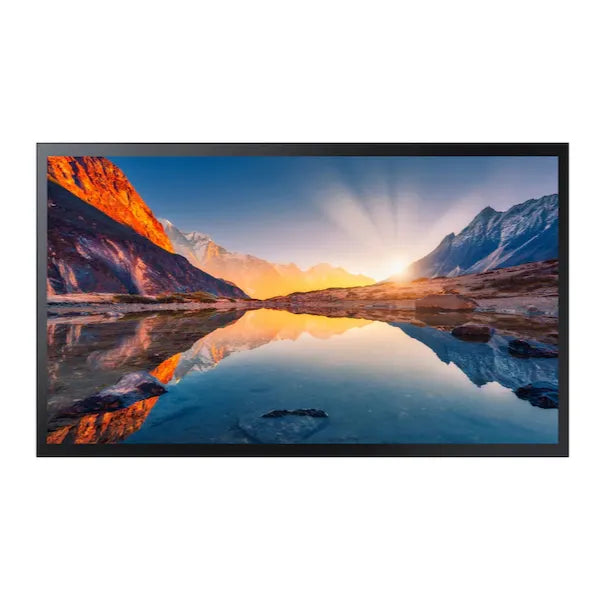

• Display Configuration: The monitor features a 55-inch commercial-grade interactive screen built upon a premium Vertical Alignment (VA) panel utilizing an advanced edge-lit LED backlight layout.

• Touch Interface and Technology: It integrates high-speed Capacitive Touch technology using a micro-fine sensor matrix embedded directly behind the front protective glass cover.

• Resolution and Aspect Ratio: It delivers a native Ultra HD 4K resolution of $3840 \times 2160$ pixels mapped across a standard 16:9 widescreen layout grid.

• Luminance and Visibility Performance: The display outputs 500 nits of typical panel brightness without touch glass, and maintains 400 nits of high-visibility luminance with the integrated touch layer active.

• Contrast Performance: It achieves a deep 4000:1 static contrast ratio alongside a Mega Dynamic Contrast Ratio to keep structural text and dark graphic details perfectly defined.

• Color Capability: The panel features Dynamic Crystal Display technology with 10-bit processing depth capable of rendering over 1.07 billion distinct color variations.

• Intelligent Video Engine: It incorporates Samsung's Crystal Processor 4K engine which automatically executes intelligent upscaling algorithms to sharpen legacy low-resolution business files.

• Viewing Angles: It provides uniform 178-degree horizontal and 178-degree vertical viewing angles, preventing color shifting from wide off-axis viewing positions.

• Anti-Glare Surface Diffusion: The durable front touch glass features a 25% non-glare haze diffusion coating that minimizes reflections from indoor lighting.

• Onboard Operating System: It runs the Samsung Smart Signage Platform (SSSP 6.0) architecture powered by a native Tizen 4.0 Enterprise operating system.

• Internal Hardware Processing: The processing architecture is driven by an integrated Cortex A72 1.7GHz quad-core CPU backed by 8GB of onboard high-speed flash storage.

• Duty Cycle and Reliability: The touchscreen is engineered for continuous 24/7 mission-critical operation in heavy public traffic footprints.

• Environmental Shielding: The chassis carries an IP5X certified dust-proof structural rating that seals internal component pathways against airborne contamination.

• Physical Cabinet Geometry: It features an ultra-slim, symmetrical interactive profile measuring 56.3 mm in depth with a balanced narrow bezel layout on all sides.

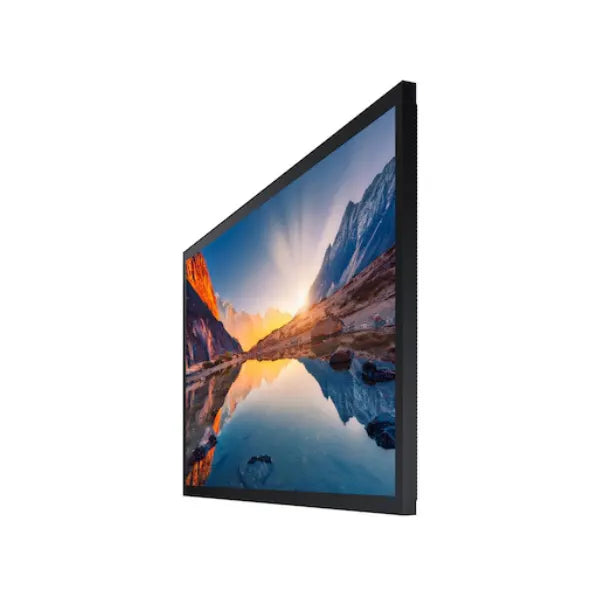

• Mounting and Orientation: It natively supports both landscape and portrait mounting alignments, perfectly balanced by centered VESA 200 x 200 mm structural mounting points.

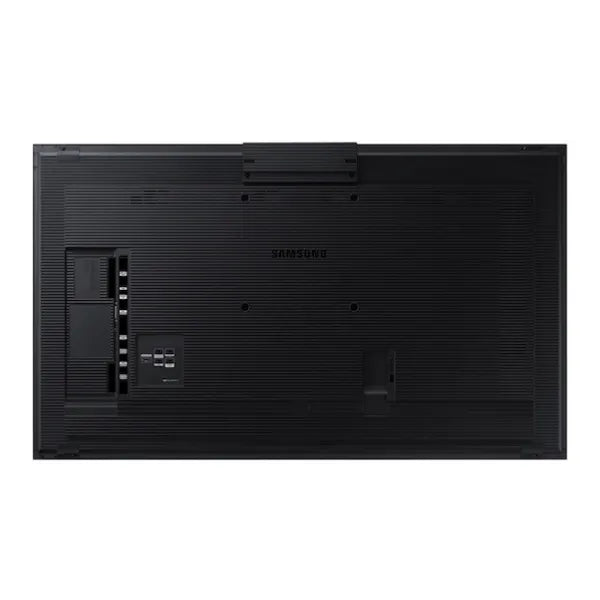

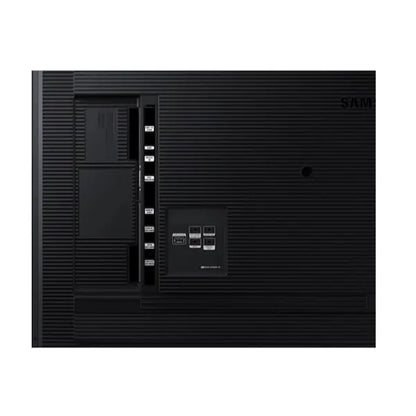

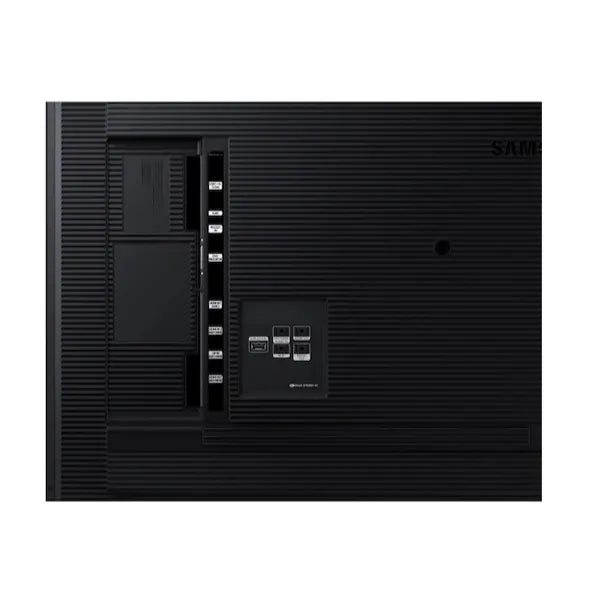

• Core Video Interfaces: Input options include two HDMI 2.0 terminals supporting HDCP 2.2, one DisplayPort 1.2 port, and one DVI-D lane.

• Data and Core Connectivity: It features built-in dual-band Wi-Fi, Bluetooth, two USB 2.0 data ports, two Dedicated Touch-Out USB Type-B upstream ports, and one RJ45 LAN connector.

• Network Command Control: It includes RS232C control input and output loops via a standard stereo jack interface, allowing full remote MDC infrastructure oversight.

Key Features

The Samsung QM55R-T represents an advanced all-in-one interactive solution that eliminates the need for bulky add-on infrared bezels or external PC hardware. Utilizing highly responsive Projected Capacitive Touch technology, the display provides an instantaneous, lag-free multi-touch interface that feels as smooth as a modern smartphone. Running on Tizen 4.0 Enterprise OS, the monitor serves as a powerful standalone interactive kiosk capable of driving custom wayfinding apps or digital catalogues natively out of the box. To withstand heavy public contact, the glass surface features a 25% anti-glare finish that reduces light reflections while ensuring a low-friction tracking surface for multiple users.
