| Technical Parameter | Specification / Feature Details |
| Model / MPN | QM65F (LH65QMFPLGC/XD / LH65QMFEBLG/GO) |
| Display Size & Type | 65-inch Commercial Grade Slim Edge-Lit LED (E-LED BLU Layout) |
| Native Resolution | Ultra HD 4K (3840 x 2160 @ 60Hz Native Native Fluidity via DP 1.2) |
| Panel Brightness | 500 nits (Typical) high-luminance industrial ambient output |
| Contrast Ratio | 4700:1 (Static Layout Core) | Mega Dynamic Contrast Ratio |
| Color Matrix Technology | 10-Bit Dithered Processing Architecture (1.07 Billion Colors) | 72% NTSC |
| Multi-Source Matrix | Quad-FHD 4-Way Picture-by-Picture (PBP) Integrated Split Engine |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Off-Axis Operational Viewing Window |
| Glass Haze / Non-Glare | 25% Premium Light Diffusion Anti-Glare Matte Surface |
| Hardware Extensibility | Native Set-Back Box (SBB-DA/DI) Extension Module Slide-In Slot |
| Duty Cycle / Reliability | 24 Hours / 7 Days Continuous Industrial Mission-Critical Operation |
| Environmental Protection | IP5X Certified Dust-Proof Solid Core Internal Architecture Shielding |
| Chassis Bezel Profile | Symmetrical 12.0 mm Ultra-Narrow Bezel (Top, Sides, Bottom) |
| Video Input Interfaces | 4x HDMI 1.4 (UHD @ 30Hz), 2x DisplayPort 1.2 (UHD @ 60Hz), 1x DVI-I |
| Data & Audio I/O | 1x Stereo Mini Jack Input, 1x Stereo Mini Jack Output, 1x USB (Service Only) |
| Remote Management | RS232C In/Out (Stereo Jack Connection), RJ45 LAN MDC Infrastructure |
| Onboard Audio System | Integrated 20W 2-Channel Professional Audio System (10W + 10W Speakers) |
| Mechanical Specs | Dimensions: 1456.1 x 835.6 x 37.5 mm | VESA: 400 x 400 mm | Weight: 23.1 kg |
| Technical Parameter | Specification / Feature Details |
| Model / MPN | QM65F (LH65QMFPLGC/XD / LH65QMFEBLG/GO) |
| Display Size & Type | 65-inch Commercial Grade Slim Edge-Lit LED (E-LED BLU Layout) |
| Native Resolution | Ultra HD 4K (3840 x 2160 @ 60Hz Native Native Fluidity via DP 1.2) |
| Panel Brightness | 500 nits (Typical) high-luminance industrial ambient output |
| Contrast Ratio | 4700:1 (Static Layout Core) | Mega Dynamic Contrast Ratio |
| Color Matrix Technology | 10-Bit Dithered Processing Architecture (1.07 Billion Colors) | 72% NTSC |
| Multi-Source Matrix | Quad-FHD 4-Way Picture-by-Picture (PBP) Integrated Split Engine |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Off-Axis Operational Viewing Window |
| Glass Haze / Non-Glare | 25% Premium Light Diffusion Anti-Glare Matte Surface |
| Hardware Extensibility | Native Set-Back Box (SBB-DA/DI) Extension Module Slide-In Slot |
| Duty Cycle / Reliability | 24 Hours / 7 Days Continuous Industrial Mission-Critical Operation |
| Environmental Protection | IP5X Certified Dust-Proof Solid Core Internal Architecture Shielding |
| Chassis Bezel Profile | Symmetrical 12.0 mm Ultra-Narrow Bezel (Top, Sides, Bottom) |
| Video Input Interfaces | 4x HDMI 1.4 (UHD @ 30Hz), 2x DisplayPort 1.2 (UHD @ 60Hz), 1x DVI-I |
| Data & Audio I/O | 1x Stereo Mini Jack Input, 1x Stereo Mini Jack Output, 1x USB (Service Only) |
| Remote Management | RS232C In/Out (Stereo Jack Connection), RJ45 LAN MDC Infrastructure |
| Onboard Audio System | Integrated 20W 2-Channel Professional Audio System (10W + 10W Speakers) |
| Mechanical Specs | Dimensions: 1456.1 x 835.6 x 37.5 mm | VESA: 400 x 400 mm | Weight: 23.1 kg |
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call

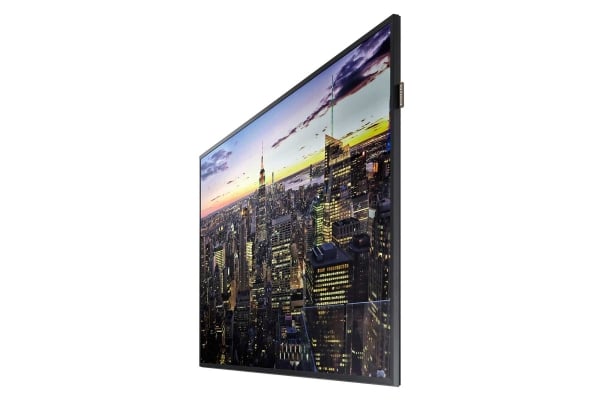

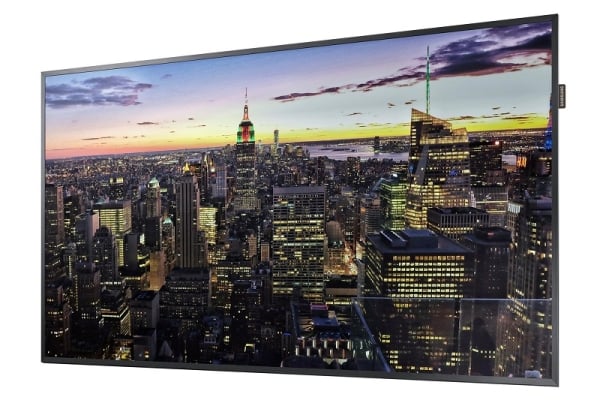

You can buy the genuine Samsung QM65F (Model: LH65QMFPLGC/XD) industrial-grade multi-screen commercial display directly through TrianzeTech. Operating from our central logistics and B2B core in Dubai, TrianzeTech maintains active physical inventory of this model to support local enterprise projects and secure cross-border industrial freight routing into Cairo, Almaty, and the broader CIS region.
Procuring professional 65-inch edge-lit commercial screens requires strict transport protocols due to their precise internal component alignment. Moving these panels requires specific measures to prevent panel flexing or glass fractures during transit. By centralizing operations at our Dubai office, TrianzeTech manages localized quality checks, applies reinforced dual-pallet industrial crating, and handles targeted customs documentation. This reduces transit times and eliminates delivery complications for projects expanding into Cairo, Almaty, and the wider CIS territory.
Standard displays require a dedicated external multi-window processor or matrix switch to split the screen layout, adding complexity, extra video cables, and multiple potential points of failure. The Samsung QM65F features an integrated Quad-FHD PBP processing matrix. It accepts up to four entirely separate video source connections directly into its hardware terminals, neatly tiling them into equal screen quadrants. Each quadrant displays uncompressed Full HD 1080p resolution, providing a clean, seamless multi-source workspace on a single display.
Many older or lower-tier 4K commercial screens only support 4K input over HDMI 1.4 or legacy interfaces, which caps the visual refresh rate at a choppy 30Hz. For applications like viewing panning security camera feeds, reading scrolling stock tickers, or interacting with rapid telemetry changes, a 30Hz limit causes fatiguing motion blur and jagged transitions. The QM65F features Dual DisplayPort 1.2 interfaces that natively support 4K at a smooth 60Hz refresh rate, ensuring fast-moving text and high-speed data animations remain sharp and easy on the eyes.
Mounting external media players behind wall-installed monitors often leads to messy cabling, extra wall-space requirements, and higher field maintenance effort. The QM65F solves this issue with its integrated Set-Back Box (SBB) slide-in bay. An SBB media module can slide directly into the display chassis, connecting internally to power and video lines. This creates a clean, self-contained, enterprise-grade all-in-one terminal that saves space and simplifies network management.
