| Technical Parameter | Specification / Feature Details |
| Model / MPN | QM75B (QM75B-G / LH75QMBBGCXZA / LH75QMBBGCXUE) |
| Display Size & Type | 75-inch Large-Format Commercial Direct-Lit LED / Advanced VA Panel |
| Native Resolution | Ultra HD 4K (3840 x 2160) | 16:9 Aspect Ratio Canvas |
| Panel Brightness | 500 nits (Typical) high-visibility indoor professional calibration |
| Contrast Ratio | 4000:1 (Static Layout Grid) | Mega Dynamic Contrast Ratio |
| Color Technology | Dynamic Crystal Color Engine | 10-Bit Processing (1.07 Billion Colors) |
| Color Gamut Spectrum | 92% DCI-P3 Wide Color Space (CIE 1976 Layout) |
| Video Engine | Intelligent UHD Upscaling via Quantum Processor Lite 4K |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Uniform Architectural Geometry |
| Glass Haze / Non-Glare | 25% Premium Anti-Glare Non-Glare Diffusion Coating |
| Onboard OS Platform | Samsung Smart Signage Platform (SSSP 10.0) | Tizen 6.5 Enterprise OS |
| Processor & Hardware | CA73 1.6GHz Quad-Core CPU | 16GB High-Speed Onboard Flash Storage |
| Duty Cycle / Reliability | 24 Hours / 7 Days Continuous Industrial Operation |
| Environmental Protection | IP5X Certified Dust-Proof Structural Shielding Rating |
| Chassis Profile Depth | Hyper-Slim 2nd-Gen Cabinet Profile (28.5 mm / 1.12 inches) |
| Bezel Width Profile | Symmetrical 13.4 mm Ultra-Narrow Even Bezel Design on all 4 sides |
| Mounting Orientation | Landscape & Portrait Native Hardware Orientation with Centered VESA Holes |
| Video Input Interfaces | 3x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2 |
| Data & Core Connectivity | Wi-Fi Dual-Band (2.4/5.0GHz), Bluetooth, 2x USB 2.0, 1x RJ45 LAN, 1x IR In |
| Remote Management | RS232C In/Out (3.5mm), Custom Home UI, SmartThings Pro IoT Integration |
| Mechanical Specs | Dimensions: 1682.3 x 960.4 x 28.5 mm | VESA: 400 x 400 mm | Weight: 33.4 kg |
| Technical Parameter | Specification / Feature Details |
| Model / MPN | QM75B (QM75B-G / LH75QMBBGCXZA / LH75QMBBGCXUE) |
| Display Size & Type | 75-inch Large-Format Commercial Direct-Lit LED / Advanced VA Panel |
| Native Resolution | Ultra HD 4K (3840 x 2160) | 16:9 Aspect Ratio Canvas |
| Panel Brightness | 500 nits (Typical) high-visibility indoor professional calibration |
| Contrast Ratio | 4000:1 (Static Layout Grid) | Mega Dynamic Contrast Ratio |
| Color Technology | Dynamic Crystal Color Engine | 10-Bit Processing (1.07 Billion Colors) |
| Color Gamut Spectrum | 92% DCI-P3 Wide Color Space (CIE 1976 Layout) |
| Video Engine | Intelligent UHD Upscaling via Quantum Processor Lite 4K |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Uniform Architectural Geometry |
| Glass Haze / Non-Glare | 25% Premium Anti-Glare Non-Glare Diffusion Coating |
| Onboard OS Platform | Samsung Smart Signage Platform (SSSP 10.0) | Tizen 6.5 Enterprise OS |
| Processor & Hardware | CA73 1.6GHz Quad-Core CPU | 16GB High-Speed Onboard Flash Storage |
| Duty Cycle / Reliability | 24 Hours / 7 Days Continuous Industrial Operation |
| Environmental Protection | IP5X Certified Dust-Proof Structural Shielding Rating |
| Chassis Profile Depth | Hyper-Slim 2nd-Gen Cabinet Profile (28.5 mm / 1.12 inches) |
| Bezel Width Profile | Symmetrical 13.4 mm Ultra-Narrow Even Bezel Design on all 4 sides |
| Mounting Orientation | Landscape & Portrait Native Hardware Orientation with Centered VESA Holes |
| Video Input Interfaces | 3x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2 |
| Data & Core Connectivity | Wi-Fi Dual-Band (2.4/5.0GHz), Bluetooth, 2x USB 2.0, 1x RJ45 LAN, 1x IR In |
| Remote Management | RS232C In/Out (3.5mm), Custom Home UI, SmartThings Pro IoT Integration |
| Mechanical Specs | Dimensions: 1682.3 x 960.4 x 28.5 mm | VESA: 400 x 400 mm | Weight: 33.4 kg |
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
You can buy the genuine Samsung QM75B (Model: LH75QMBBGCXZA) professional large-format commercial display directly through TrianzeTech. Operating from our central logistics and B2B office in Dubai, TrianzeTech maintains active physical inventory of this model to support local enterprise installations and secure cross-border industrial freight routing into Cairo, Almaty, and the broader CIS region.
Procuring professional 75-inch commercial screens requires strict transport protocols due to their physical scale and a 33.4 kg net set weight. Moving these panels requires specific measures to prevent panel flexing or glass fractures during transit. By centralizing operations at our Dubai office, TrianzeTech manages localized quality checks, applies reinforced dual-pallet industrial crating, and handles targeted customs documentation. This reduces transit times and eliminates delivery complications for projects expanding into Cairo, Almaty, and the wider CIS territory.

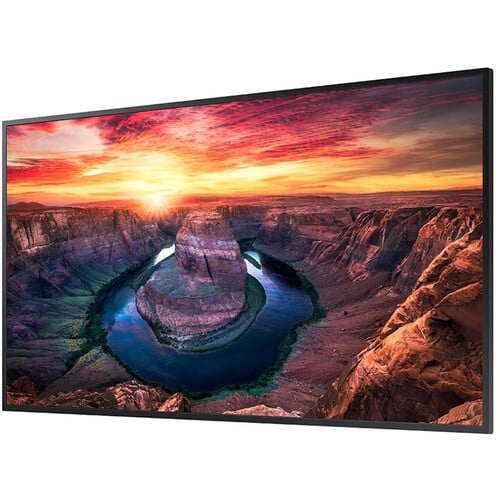

Legacy 75-inch commercial displays usually feature bulky interior cooling designs and power components, leading to a chassis depth ranging between 55mm to 90mm. This causes the screen to stand out awkwardly when wall-mounted. The QM75B uses a redesigned 2nd-generation chassis that reduces its total thickness to a hyper-slim 28.5mm. This ultra-thin profile allows the 75-inch screen to mount practically flush against the wall like a sleek brand frame, saving valuable space in corporate walkways and high-traffic retail environments.
On many standard large displays, the VESA mounting points are positioned lower on the frame to match the weight distribution of a landscape orientation. When these screens are rotated 90 degrees into portrait mode, the offset mounting pattern shifts the center of gravity, causing the monitor to lean or tilt forward on its brackets over time. The QM75B solves this by featuring Centered VESA Holes. This design distributes weight evenly across all four mounting points, ensuring the screen remains perfectly straight and secure when used on vertical pillars or portrait directories.
Modern corporate boardrooms are often built with large glass walls and bright overhead LED lighting panels. Standard glossy screens can act like mirrors under these conditions, creating harsh reflection spots that wash out fine-text presentation slides or spreadsheet data. The QM75B features a 25% premium anti-glare non-glare coating across its front panel. This surface treatment scatters incoming light paths across the glass surface, preserving sharp contrast and maintaining clear text legibility from any seat in the room.
