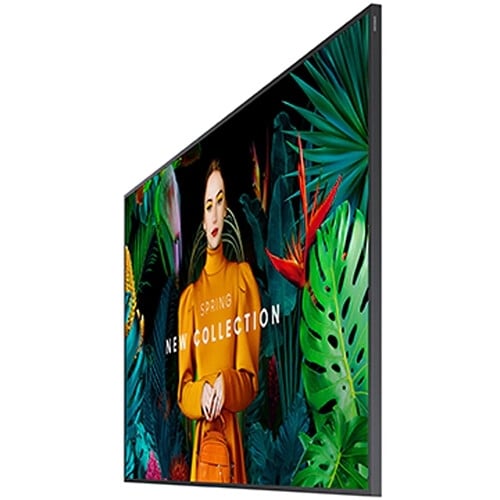

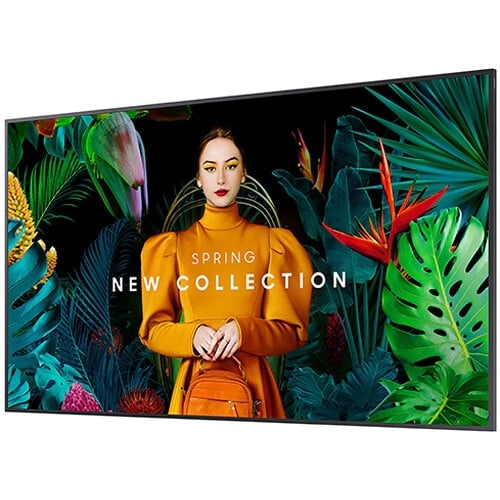

Samsung QMC Series 75" QM75C (REPEAT)
Samsung QMC Series 75" QM75C (REPEAT)
Samsung QMC Series 75" QM75C (REPEAT)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
| Technical Parameter | Specification / Feature Details |
| Model / MPN | QM75C (LH75QMCEBGCXGO / LH75QMCEBGCXEN) |
| Display Size & Type | 75-inch Large-Format Commercial Direct-Lit LED / Advanced VA Panel |
| Native Resolution | Ultra HD 4K (3840 x 2160) | 16:9 Aspect Ratio Canvas |
| Panel Brightness | 500 nits (Typical) high-visibility indoor professional calibration |
| Contrast Ratio | 4000:1 (Static Layout Grid) | Mega Dynamic Contrast Ratio |
| Color Technology | Dynamic Crystal Color Engine | 10-Bit Processing (1.07 Billion Colors) |
| Video Engine | Intelligent UHD Upscaling via Quantum Processor Lite 4K |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Uniform Architectural Geometry |
| Glass Haze / Non-Glare | 25% Premium Anti-Glare Diffusion Coating |
| Onboard OS Platform | Samsung Smart Signage Platform (SSSP 10.0) | Tizen 7.0 Enterprise OS |
| Processor & Hardware | CA73 1.6GHz Quad-Core CPU | 16GB High-Speed Onboard Flash Storage |
| Duty Cycle / Reliability | 24 Hours / 7 Days Continuous Industrial Operation |
| Environmental Protection | IP5X Certified Dust-Proof Structural Shielding Rating |
| Chassis Profile Depth | Hyper-Slim 2nd-Gen Cabinet Profile (28.5 mm / 1.12 inches) |
| Bezel Width Profile | Symmetrical 13.4 mm Ultra-Narrow Even Bezel Design on all 4 sides |
| Mounting Orientation | Landscape & Portrait Native Hardware Orientation with Centered VESA Holes |
| Video Input Interfaces | 3x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2 |
| Data & Core Connectivity | Wi-Fi Dual-Band (2.4/5.0GHz), Bluetooth, 2x USB 2.0, 1x RJ45 LAN, 1x IR In |
| Remote Management | RS232C In/Out (3.5mm), Custom Home UI, Samsung VXT Cloud Native CMS |
| Mechanical Specs | Dimensions: 1682.3 x 960.4 x 28.5 mm | VESA: 400 x 400 mm | Weight: 33.4 kg |
