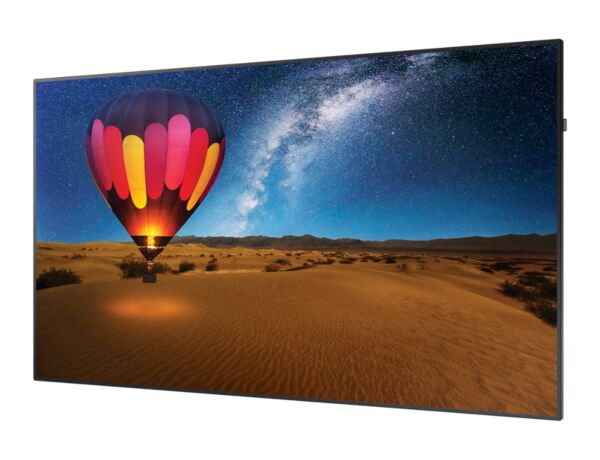

Samsung QM-F Series 98" QM98F UHD 4K 24/7 Professional Commercial Signage LED Display

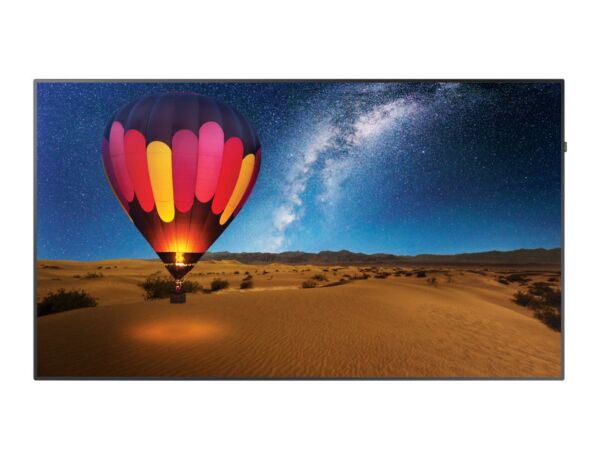

  • Samsung QM-F Series 98 inch QM98F LH98QMFPLB/EN ultra high definition 4K UHD 24/7 commercial signage led display

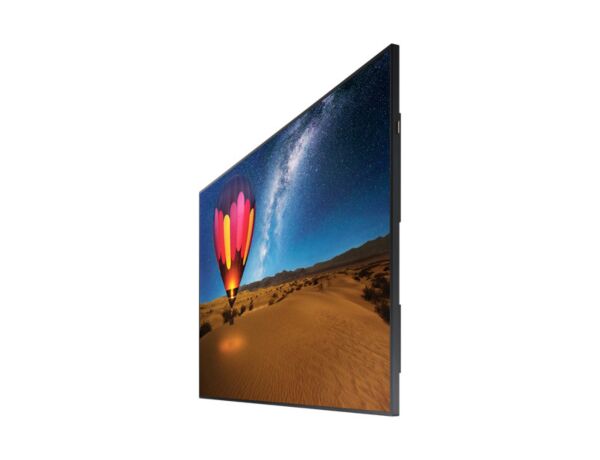

  • A 98 inch Samsung QM98F screen displaying four concurrent native Full HD presentation window fields via its internal PBP engine
1 6

Samsung QM-F Series 98" QM98F UHD 4K 24/7 Professional Commercial Signage LED Display

Samsung QM-F Series 98" QM98F UHD 4K 24/7 Professional Commercial Signage LED Display

Unified 98" Seamless 4K Canvas: Replaces segmented multi-panel video walls with a giant, uninterrupted Ultra HD presentation surface.

Hardware-Driven Quad-FHD PBP Split: Displays up to 4 separate video inputs concurrently, with each window maintaining crisp 1080p resolution.

Mission-Critical 24/7 Performance: Heavy-duty internal cooling paths optimized for reliable round-the-clock commercial operation.

IP5X Certified Dust-Proof Housing: Sealed optical chassis prevents airborne particulates from causing hot spots or panel degradation.

Balanced 500-Nit Non-Glare Output: Minimizes reflections from direct overhead lighting to ensure clear data reading at off-axis angles.

Massive Digital I/O Interconnect Panel: Equipped with dual DisplayPort 1.2 links and 4x HDMI ports for seamless multi-device connectivity.

Symmetrical 15.2mm Steel Bezel: Slim, uniform bezel edges maximize active screen space and simplify clean wall-flush mounting.

Samsung
Brand : Samsung
Model : QM98F (LH98QMFPLB/EN / LH98QMFPLB)

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Full Motion Wall Mount - VS02D-696

Samsung QM-F Series 98 inch QM98F LH98QMFPLB/EN ultra high definition 4K UHD 24/7 commercial signage led display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN QM98F (LH98QMFPLB/EN / LH98QMFPLB)
Display Size & Type 98-inch Giant-Format Edge-Lit LED (E-LED BLU) Commercial Panel
Native Resolution Ultra HD 4K (3840 x 2160) | 16:9 Aspect Ratio
Panel Brightness 500 nits (Typical) high-luminance output for commercial spaces
Contrast Ratio 4000:1 (Static) | Dynamic MEGA Contrast Ratio
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Response Time 8 ms (Gray-to-Gray)
Multi-Screen Support Advanced Quad-Screen PBP (Splits into 4x Native Full HD 1080p Windows)
Orientation Options Landscape & Portrait Orientation Native Hardware Support
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Mission-Critical Operation
Environmental Shielding IP5X Certified Dust-Proof Housing Architecture
Video Input Interfaces 4x HDMI 1.4, 2x DisplayPort 1.2 (Supports 4K @60Hz), 1x DVI-I
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Central Management, 1x USB
Integrated Audio Built-In 20W Stereo Sound System (15W + 15W Multi-Channel Out)
Mechanical Dimensions 2194.2 x 1249.8 x 76.5 mm (Without Handle) | Bezel Width: 15.2 mm (Even)
Chassis Weight Net Panel Weight: ~80.0 kg
Mounting Architecture Heavy-Duty VESA Mount Pattern: 900 x 600 mm

Replace distracting multi-panel video wall seams with a unified, breathtaking digital canvas: the Samsung QM-F Series 98" 4K Commercial Display (QM98F). Purpose-built to deliver immense visual impact without the grid lines of multi-screen arrays, this giant-format 98-inch panel displays content in native Ultra HD 4K resolution (3840 x 2160). Emitting a robust 500 nits of continuous brightness alongside a deep 4000:1 static contrast ratio, the display ensures that corporate graphics, high-density dashboard layouts, and targeted retail media look incredibly realistic and completely legible from anywhere in the room. This makes it a perfect fit for premium boardrooms, public transport halls, and high-end storefronts throughout Dubai, Riyadh, and Doha.

A key engineering highlight of the QM98F is its hardware-accelerated Quad-Screen Picture-by-Picture (PBP) matrix splitting technology. This feature allows multi-source environments to pipe up to four separate digital video feeds onto the 98-inch screen at the same time. Each independent quad-window maintains uncompromised Full HD 1080p native sharpness, completely eliminating the need for external video wall processors. This makes it an invaluable asset for videoconferencing rooms and financial trading desks. Built to handle grueling workloads across Africa and the CIS region, the monitor features an IP5X certified dust-proof housing and a relentless 24/7 mission-critical duty cycle, protecting your investment against airborne micro-particles and continuous operational wear.

The display's sleek, industrial chassis supports both landscape and portrait orientations, giving architecture and design crews complete layout flexibility. It also includes a built-in 20W stereo speaker system to deliver clear presentation audio right out of the box. Backed by multi-zone factory calibration that ensures uniform color balance and a non-glare surface treatment that diffuses reflections, this display stands out as a premium choice for global enterprises. TrianzeTech simplifies large-format commercial deployments by providing reinforced double-pallet shipping protection, heavy-duty project freight coordination, and fully tracked global B2B logistics.

Technical Parameter Specification / Feature Details
Model / MPN QM98F (LH98QMFPLB/EN / LH98QMFPLB)
Display Size & Type 98-inch Giant-Format Edge-Lit LED (E-LED BLU) Commercial Panel
Native Resolution Ultra HD 4K (3840 x 2160) | 16:9 Aspect Ratio
Panel Brightness 500 nits (Typical) high-luminance output for commercial spaces
Contrast Ratio 4000:1 (Static) | Dynamic MEGA Contrast Ratio
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Response Time 8 ms (Gray-to-Gray)
Multi-Screen Support Advanced Quad-Screen PBP (Splits into 4x Native Full HD 1080p Windows)
Orientation Options Landscape & Portrait Orientation Native Hardware Support
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Mission-Critical Operation
Environmental Shielding IP5X Certified Dust-Proof Housing Architecture
Video Input Interfaces 4x HDMI 1.4, 2x DisplayPort 1.2 (Supports 4K @60Hz), 1x DVI-I
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Central Management, 1x USB
Integrated Audio Built-In 20W Stereo Sound System (15W + 15W Multi-Channel Out)
Mechanical Dimensions 2194.2 x 1249.8 x 76.5 mm (Without Handle) | Bezel Width: 15.2 mm (Even)
Chassis Weight Net Panel Weight: ~80.0 kg
Mounting Architecture Heavy-Duty VESA Mount Pattern: 900 x 600 mm
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Traditional video setups that show multiple data feeds simultaneously require expensive external multi-window processors or graphic matrix splitters. This extra hardware introduces signal latency and more points of physical failure. The QM98F solves this layout problem via hardware-level Quad-Screen Picture-by-Picture (PBP) processing. This allows the panel to accept up to four separate input sources at the same time and organize them into a clean 2x2 grid, with each window maintaining native Full HD 1080p resolution for operations in Dubai and Riyadh.
Even the absolute thinnest extreme-narrow video wall bezels still leave thin grid lines across your imagery, which can fragment text characters, distort fine spreadsheets, and disrupt critical map lines. The QM98F provides a massive 98-inch active viewable canvas without any structural bezels across the center image area. This ensures that executive presentations and real-time security tracking loops stay perfectly continuous, clear, and unfragmented throughout locations in Africa and the CIS region.
Running a giant-format screen around the clock creates internal static fields that pull floating dust, lint, and airborne micro-particles through cooling vents. Over time, this buildup insulates internal circuits, leading to overheating, color shifts, and dark panel blemishes. The QM98F includes an IP5X certified dust-proof housing structure that shields the internal electronics, drastically reducing preventative maintenance costs and ensuring long-term 24/7 durability.
Yes. While standard commercial screens use legacy video connections that limit Ultra HD content to a choppy 30Hz refresh rate, the QM98F features twin DisplayPort 1.2 digital inputs. These high-bandwidth connections support uncompressed 4K resolution at a true 60Hz refresh rate, ensuring fast-moving data streams, live video feeds, and complex corporate presentations remain perfectly smooth and free of motion blur at corporate sites in Almaty or Cairo.
Sprawling public spaces, airport terminals, and executive offices often feature floor-to-ceiling windows or high-output LED light grids that cast bright mirror reflections across large screens. The QM98F uses a premium 25% anti-glare glass haze layer that diffuses incoming ambient light evenly across the panel surface. This keeps text fully legible and colors deeply saturated even when viewed from wide 178-degree off-axis angles.
