Samsung SHF Series 37" SH37F 32:9 Ultra-Wide Stretched Widescreen 24/7 Commercial Signage LED Display

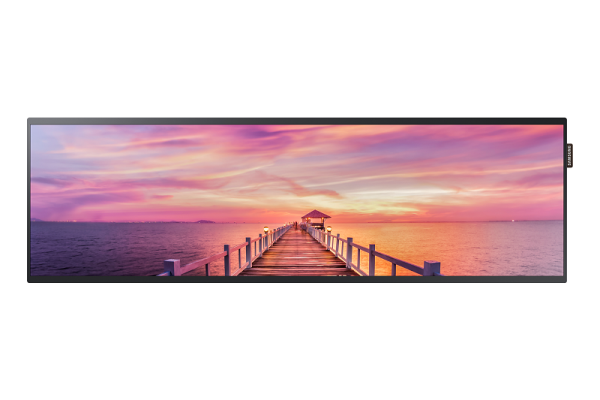

  • Samsung SHF Series 37 inch SH37F LH37SHFPLBB/EN 32:9 ultra wide stretched widescreen 700 nits commercial signage led display
  • Horizontal perspective of a Samsung SH37F bar type display showing flight arrivals schedule mounted above a structural corridor entryway
1 2

Samsung SHF Series 37" SH37F 32:9 Ultra-Wide Stretched Widescreen 24/7 Commercial Signage LED Display

Samsung SHF Series 37" SH37F 32:9 Ultra-Wide Stretched Widescreen 24/7 Commercial Signage LED Display

32:9 Specialized Stretched Layout: Stretched widescreen format brings high-impact digital messaging to narrow shelves, columns, and corridors.

Premium 700-Nit Brightness Panel: Pushes high-luminance output to ensure clear readability under harsh, bright overhead lighting.

IEC 61373 Shock & Vibration Rated: Toughened industrial chassis certified to operate safely on mass transit networks and moving platforms.

44% Heavy Haze Anti-Glare Glass: High-level reflection diffusion layer keeps fine text and digits legible from steep viewing angles.

Onboard SSSP Gen 3 & MagicINFO S3: Onboard quad-core SoC loops and schedules stretched media files natively without external media boxes.

Ultra-Slim 39.9mm Chassis Profile: Space-saving, low-profile frame allows flush wall mounting and clean integration inside built-in retail kiosks.

DisplayPort 1.2 Multi-Screen Loop-Out: Natively chains uncompressed signals sequentially across multi-display layouts without external video splitters.

Samsung
Brand : Samsung
Model : SH37F (LH37SHFPLBB/EN / LH37SHFPLBB)

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Full Motion Wall bracket - VS0SE-466

Samsung SHF Series 37 inch SH37F LH37SHFPLBB/EN 32:9 ultra wide stretched widescreen 700 nits commercial signage led display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN SH37F (LH37SHFPLBB/EN / LH37SHFPLBB)
Display Size & Type 37-inch Commercial Stretched Edge-Lit LED (E-LED BLU) Panel
Native Aspect Ratio 32:9 Ultra-Wide Bar-Type Format (16:4.5 Geometry)
Native Resolution 1920 x 540 pixels
Panel Brightness 700 nits (Typical) high-luminance output for extreme readability
Contrast Ratio 4000:1 (Static Layout) | Dynamic Mega Contrast Ratio
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Glass Haze / Non-Glare 44% Heavy-Duty Haze Treatment for maximum glare reduction
Industrial Certification IEC 61373 Certified Shock and Vibration Structural Rating
Onboard SoC Platform Samsung Smart Signage Platform Gen 3 (SSSP v3)
Internal Player Engine MagicINFO Player S3 (Embedded VDLinux SoC Architecture)
Processor & Hardware 1.0 GHz Quad-Core Cortex-A9 CPU | 1.5GB DDR3 RAM | 8GB Flash Storage
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Chassis Profile Depth Ultra-Slim 39.9 mm (1.57 inches) structural cabinet thickness
Bezel Width Profile Ultra-Narrow 5.7 mm (Sides) | 12.0 mm (Top/Bottom) Visual Border
Video Input Interfaces 1x DisplayPort 1.2, 1x HDMI 1.4, 1x DVI-I, 1x USB 2.0
Video Output Loop 1x DisplayPort 1.2 Out (Supports Matrix Daisy-Chaining & Video Walls)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Mechanical Dimensions 915.8 x 281.1 x 39.9 mm | VESA Mount: 400 x 200 mm | Weight: ~6.6 kg

Maximize underutilized spatial structures and niche architectures with the highly versatile Samsung SHF Series 37" Stretched LED Display (LH37SHFPLBB/EN). Precision-engineered with an eye-catching 32:9 ultra-wide bar-type aspect ratio (16:4.5 layout) and a native 1920 x 540 resolution, this commercial-grade display allows integration teams to place digital messaging where standard 16:9 panels physically cannot fit. Operating on a relentless 24/7 continuous duty cycle, the SH37F acts as an ideal informational anchor for low-ceiling transit corridors, quick-service pickup headers, over-doorward entryways, and retail shelf edges. Pushing a powerful 700 nits of high brightness alongside an exceptional 4000:1 static contrast ratio, it guarantees that terminal schedules and marketing callouts stand out vividly across Dubai, Riyadh, and Doha.

The mechanical design is built to withstand demanding industrial installations. The display features an ultra-slim 39.9mm cabinet thickness and has passed rigorous IEC 61373 shock and vibration certifications. This specialized structural engineering allows the display to be safely mounted on structural pillars, ceiling suspensions, and mass transit vehicles without risking panel alignment drifts or hardware cracks. To combat bright track lighting setups, the front glass panel features a heavy-duty 44% anti-glare haze treatment, scattering ambient reflections to keep texts and symbols highly readable even from steep, off-axis viewing positions.

The hardware layout removes external media player clutter by embedding the third-generation Samsung Smart Signage Platform (SSSP Gen 3). Backed by an internal quad-core Cortex-A9 processor and the native MagicINFO Player S3 platform, the display plays and schedules customized ultra-wide media loops natively from its internal storage or an attached USB drive. It supports both landscape horizontal arrays and vertical portrait columns with built-in image rotation software, allowing installation crews across Africa and the CIS region to deploy content without needing third-party editing tools. For cascading arrays, the integrated DisplayPort 1.2 loop-out digital port lets you daisy-chain multi-display setups seamlessly. TrianzeTech simplifies international infrastructure projects by providing reinforced transport palletizing, custom commercial AV logistics, and fully tracked global B2B routing

Technical Parameter Specification / Feature Details
Model / MPN SH37F (LH37SHFPLBB/EN / LH37SHFPLBB)
Display Size & Type 37-inch Commercial Stretched Edge-Lit LED (E-LED BLU) Panel
Native Aspect Ratio 32:9 Ultra-Wide Bar-Type Format (16:4.5 Geometry)
Native Resolution 1920 x 540 pixels
Panel Brightness 700 nits (Typical) high-luminance output for extreme readability
Contrast Ratio 4000:1 (Static Layout) | Dynamic Mega Contrast Ratio
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Glass Haze / Non-Glare 44% Heavy-Duty Haze Treatment for maximum glare reduction
Industrial Certification IEC 61373 Certified Shock and Vibration Structural Rating
Onboard SoC Platform Samsung Smart Signage Platform Gen 3 (SSSP v3)
Internal Player Engine MagicINFO Player S3 (Embedded VDLinux SoC Architecture)
Processor & Hardware 1.0 GHz Quad-Core Cortex-A9 CPU | 1.5GB DDR3 RAM | 8GB Flash Storage
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Chassis Profile Depth Ultra-Slim 39.9 mm (1.57 inches) structural cabinet thickness
Bezel Width Profile Ultra-Narrow 5.7 mm (Sides) | 12.0 mm (Top/Bottom) Visual Border
Video Input Interfaces 1x DisplayPort 1.2, 1x HDMI 1.4, 1x DVI-I, 1x USB 2.0
Video Output Loop 1x DisplayPort 1.2 Out (Supports Matrix Daisy-Chaining & Video Walls)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Mechanical Dimensions 915.8 x 281.1 x 39.9 mm | VESA Mount: 400 x 200 mm | Weight: ~6.6 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard 16:9 commercial monitors are too tall to fit inside constrained structural spaces like retail shelf edges, low-ceiling corridors, over-doorway frames, or transit luggage pillars. The SH37F overcomes these limits with an ultra-wide 32:9 bar-type aspect ratio (measuring 36" wide by 11" high). This space-saving geometry allows system designers to deploy digital messaging in highly visible locations that were previously inaccessible throughout Dubai and Riyadh.
Displays deployed in train terminals, bus depots, or airport walkways are subject to continuous structural building vibration and mechanical shock waves. Standard screens can experience internal weld fractures, bracket fatigue, or panel matrix alignment shifts under these stresses. The SH37F features an IEC 61373 certified design, indicating it has passed industrial shock and vibration testing to ensure reliable 24/7 operations on transit pathways across Africa and the CIS region.
Standard commercial screens typically feature a low 10% to 25% haze coating, which can still allow strong overhead lights to cast clear white reflection patches over text. The SH37F addresses this with an advanced 44% heavy-duty glass haze layer. This dense micro-surface disperses reflections across a much broader angle, ensuring that small text strings, train times, and pricing updates stay completely legible for passengers standing at sharp angles.
Yes. Running wide-format content on legacy monitors often requires an external computer configured with custom graphic resolution software. The SH37F removes this extra point of failure by leveraging the SSSP Gen 3 platform driven by an internal quad-core CPU and MagicINFO Player S3. This integrated hardware platform reads, decodes, and plays native 1920 x 540 stretched files directly from local flash storage, lowering infrastructure costs at sites in Almaty or Cairo.
When mounting a sequence of multiple stretched screens down a long corridor or ticket line, routing separate video cables from a central splitter matrix to each monitor can be a major logistical challenge. The LH37SHFPLBB/EN includes built-in DisplayPort 1.2 input and digital loop-out routing. This allows installation teams to loop an uncompressed video signal from screen to screen down the line sequentially, reducing cable clutter and ensuring perfect content synchronization.
