Samsung SLB Series 46" SL46B 1500-Nit Window-Facing Semi-Outdoor 24/7 Commercial LCD Display

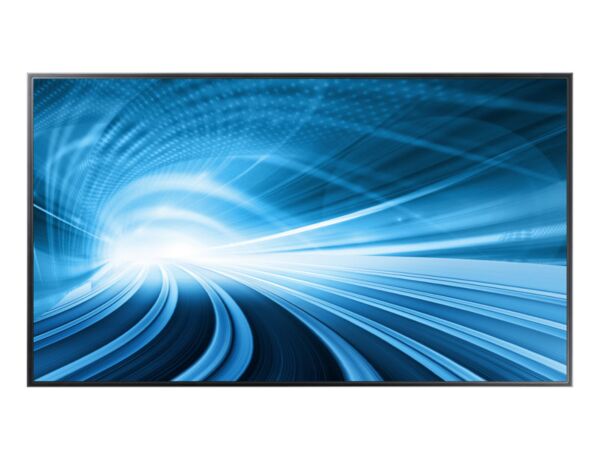

  • Samsung SLB Series 46 inch LH46SLBPLBC/XY 1500 nits high brightness window facing semi outdoor commercial display

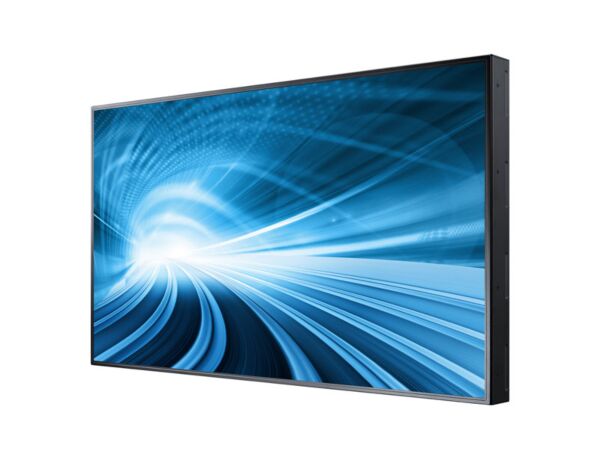

  • A high bright Samsung SL46B digital signage monitor installed inside a sunlit glass retail boutique window backdrop
1 7

Samsung SLB Series 46" SL46B 1500-Nit Window-Facing Semi-Outdoor 24/7 Commercial LCD Display

Samsung SLB Series 46" SL46B 1500-Nit Window-Facing Semi-Outdoor 24/7 Commercial LCD Display

Elite 1,500-Nit High-Brightness Core: High-luminance panel cuts through glare to maximize legibility in sunlit storefront windows.

Sunglasses-Free Polarized Coating: Prevents screen blackout for passers-by wearing polarized sunglasses.

Continuous 24/7 Sunlit Operation: Advanced cooling tech dissipates heat to handle direct solar exposure up to 30°C.

Onboard Media Player & Storage: Internal processor runs digital advertising assets natively without an external computer.

12mm Slim Frame Profile: Maximizes active visual canvas and simplifies tiling into storefront window video walls.

DVI-D Multi-Screen Daisy-Chaining: Loops high-resolution source signals across multi-display layouts up to 10x10 arrays without splitters.

Remote Network Control via MDC: RJ45 LAN and RS232C links empower IT teams to manage power schedules and inputs remotely.

Samsung
Brand : Samsung
Model : SL46B (LH46SLBPLBC/XY / LH46SLBPLBC)

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Mounting Solution - VSO1A-46F

Samsung SLB Series 46 inch LH46SLBPLBC/XY 1500 nits high brightness window facing semi outdoor commercial display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN SL46B (LH46SLBPLBC/XY / LH46SLBPLBC)
Display Size & Type 46-inch Heavy-Duty S-PVA Commercial Window-Facing LCD Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Landscape & Pivot Layout
Panel Brightness 1,500 nits (Typical) high-luminance output for sunlit visibility
Contrast Ratio 4000:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Structural Viewing Geometry
Polarized Lens Protection Sunglasses-Free Polarized Film Technology (No Screen Blackout)
Onboard SoC Platform Embedded Media Player Architecture (Cortex-A8 Single Core)
Onboard Local Storage 4GB Internal Flash Memory (1.2GB Occupied by Linux Operating System)
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Thermal Management Advanced Internal Cooling Engine | Direct Sunlight Rated up to 30°C

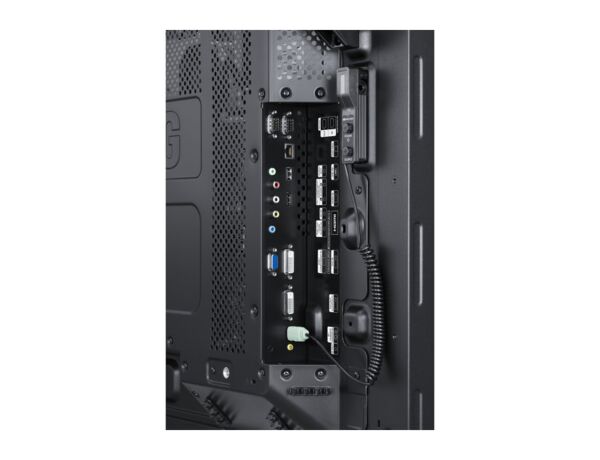

Video Input Interfaces 1x HDMI, 1x DVI-D, 1x DisplayPort, 1x Analog D-Sub (VGA), 1x USB 2.0, CVBS
Video Output Loop 1x DVI-D Out (Supports Daisy-Chain Matrix Walls up to 10x10)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Integrated Audio Built-In Stereo Speakers (Dual Channel Audio Output)
Mechanical Dimensions 1049.4 x 602.6 x 125.0 mm | Bezel Width: 12 mm | Weight: ~26.8 kg
Mounting Architecture VESA Mount Standard: 600 x 400 mm

Capture the attention of street traffic and passing crowds with the high-performance Samsung Semi-Outdoor SLB Series 46" Display (LH46SLBPLBC/XY). Specifically engineered to perform inside storefront windows, high-glare retail entrance vestibules, and commercial glass atriums, this heavy-duty 46-inch panel features an advanced S-PVA liquid crystal engine. Emitting an elite 1,500 nits of high brightness alongside a deep 4000:1 static contrast ratio, the SL46B cuts through direct ambient reflections and intense mid-day sun washout. This ensures your high-impact marketing clips, retail promotions, and directional schedules remain perfectly sharp, colorful, and legible for viewers across Dubai, Riyadh, and Doha.

The mechanical design addresses the severe thermal stresses of sunlit glass installations by incorporating an advanced internal cooling engine. This system significantly boosts heat dissipation and lowers core operational temperatures, allowing the display to sustain continuous 24/7 commercial duty cycles under direct sunlight (up to 30°C) without suffering black-panel solar loading or component degradation. Furthermore, the screen integrates a specialized polarized lens coating. On standard commercial monitors, polarized sunglasses cancel out the screen's output, rendering the display black; the SLB series bypasses this optical hurdle, maintaining a clear visual path from any off-axis viewing position for pedestrians across Africa and the CIS region.

The display features an integrated embedded hardware media player driven by a fast Cortex-A8 processing core and onboard storage. This allows your team to upload, cache, and loop high-definition advertisements directly from a USB flash drive or over the network using MagicInfo Lite, completely eliminating external media boxes. For sprawling retail windows, the tight 12mm slim bezel profile simplifies multi-panel layouts, while the integrated DVI-D loop-out port lets installers daisy-chain uncompressed layouts across matrices up to a 10x10 configuration without external splitters. TrianzeTech protects your high-tier signage installations with verified commercial project logistics, reinforced multi-layer pallet protection, and completely tracked global shipping.

Technical Parameter Specification / Feature Details
Model / MPN SL46B (LH46SLBPLBC/XY / LH46SLBPLBC)
Display Size & Type 46-inch Heavy-Duty S-PVA Commercial Window-Facing LCD Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Landscape & Pivot Layout
Panel Brightness 1,500 nits (Typical) high-luminance output for sunlit visibility
Contrast Ratio 4000:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Structural Viewing Geometry
Polarized Lens Protection Sunglasses-Free Polarized Film Technology (No Screen Blackout)
Onboard SoC Platform Embedded Media Player Architecture (Cortex-A8 Single Core)
Onboard Local Storage 4GB Internal Flash Memory (1.2GB Occupied by Linux Operating System)
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Thermal Management Advanced Internal Cooling Engine | Direct Sunlight Rated up to 30°C
Video Input Interfaces 1x HDMI, 1x DVI-D, 1x DisplayPort, 1x Analog D-Sub (VGA), 1x USB 2.0, CVBS
Video Output Loop 1x DVI-D Out (Supports Daisy-Chain Matrix Walls up to 10x10)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Integrated Audio Built-In Stereo Speakers (Dual Channel Audio Output)
Mechanical Dimensions 1049.4 x 602.6 x 125.0 mm | Bezel Width: 12 mm | Weight: ~26.8 kg
Mounting Architecture VESA Mount Standard: 600 x 400 mm
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard commercial LCD screens use a linear polarized film that aligns light waves in a single direction. When a pedestrian walks past wearing polarized sunglasses, the two filtering layers can cross and cancel each other out, making the display appear completely blacked out. The SL46B integrates a specialized polarized wave-retardation glass layer that realigns the output light into a circular path. This prevents screen blanking, ensuring your retail promotions stay perfectly clear for every customer in Dubai and Riyadh.
Storefront glass windows act like greenhouses, trapping solar radiation and causing rapid heat buildup behind the window panes. Standard commercial monitors exposed to these conditions can suffer liquid crystal boiling, leading to irreversible dark blemishes known as solar blackening. The SL46B incorporates an advanced thermal heat-dissipation chassis that pulls heat away from the S-PVA panel, allowing it to maintain continuous 24/7 operations in direct sunlight up to 30°C.
Installing separate external media players behind individual window displays increases initial hardware procurement costs and introduces long cable runs that act as physical points of failure. The LH46SLBPLBC/XY addresses this layout challenge by embedding an internal system microchip media player driven by an internal CPU core and 4GB of flash storage. This allows store managers to manage, schedule, and playback high-definition advertising loops natively from a USB drive or via local network commands.
Yes. To distribute video layouts across a multi-panel retail window array, standard monitors require external distribution amplifiers or inline signal repeaters. The SL46B features hardware-accelerated DVI-D digital input and loop-out connections. This robust video interface pipes an uncompressed master signal from display to display sequentially, supporting multi-screen layouts up to a 10x10 matrix configuration (100 monitors) without any signal degradation at installation sites across Africa and the CIS region.
Standard indoor displays typically deliver between 350 and 500 nits of brightness, which is easily washed out by direct ambient sunlight, making the screen appear dim or unreadable from the street. The SL46B features a high-impact 1,500 cd/m² (nits) direct-lit backlight array that produces up to three times the luminance of standard screens. This high light output ensures rich color saturation and excellent contrast balance even under intense daylight, maximizing marketing impact in sites like Almaty or Cairo.
