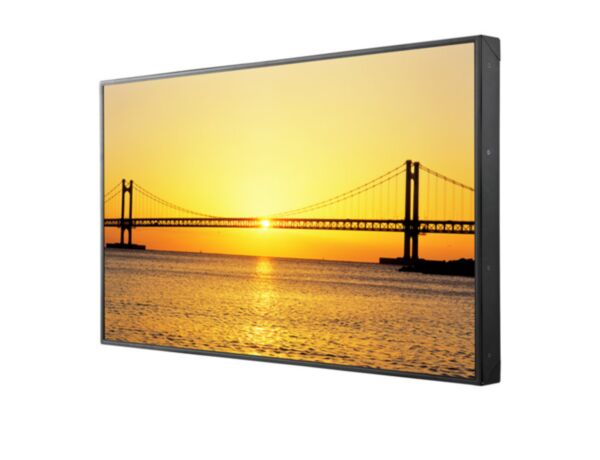

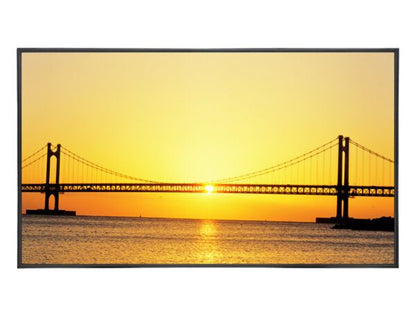

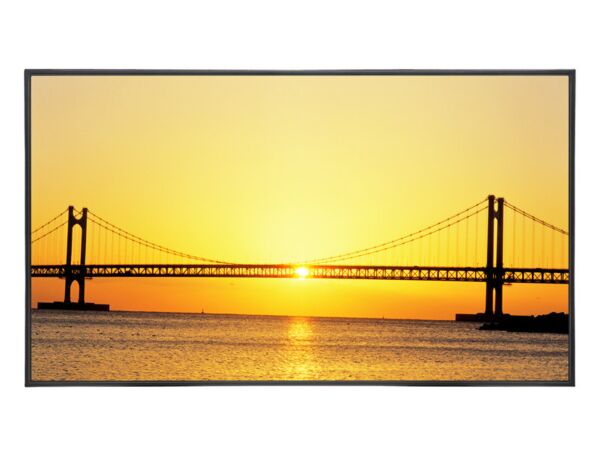

Samsung SyncMaster 460UX-3 46" UX-3 Series High-Brightness Heavy-Duty Commercial LCD Video Wall Display
Samsung SyncMaster 460UX-3 46" UX-3 Series High-Brightness Heavy-Duty Commercial LCD Video Wall Display
Samsung SyncMaster 460UX-3 46" UX-3 Series High-Brightness Heavy-Duty Commercial LCD Video Wall Display
Brand
:
Samsung
Model
:
460UX-3 / LH46GWPLBC/XY
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
| Technical Parameter | Specification / Feature Details |
| Model / MPN | 460UX-3 (LH46GWPLBC/XY / LH46GWPLBC/ZA) |
| Display Size & Type | 46-inch Professional S-PVA (DID) Commercial LCD Panel |
| Native Resolution | Full HD (1920 x 1080) @ 60 Hz | 16:9 Aspect Ratio |
| Panel Brightness | 700 nits (Typical) for high-illumination public visibility |
| Contrast Ratio | 3000:1 (Static) | 10,000:1 (Dynamic) |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Viewing Geometry |
| Response Time | 8 ms (Gray-to-Gray) |
| Bezel Width Profile | Ultra-Narrow Bezel (2.3 mm Top/Left, 1.2 mm Bottom/Right) |
| Multi-Screen Scaling | Embedded Video Matrix Processor (Supports 1x1 to 10x10 configurations) |
| Video Input Interfaces | 1x DisplayPort, 2x HDMI, 1x DVI-D, 1x VGA (D-Sub 15-pin), Component/Composite |
| Video Output Loop | 1x DVI-D (Digital Loop-Out for loss-free matrix routing) |
| Data & Control Ports | RS232C In/Out, RJ45 LAN, 1x USB 2.0, Stereo Mini Jack (IR In/Out) |
| Built-in Audio | Integrated 20W Sound System (Dual 10W Speakers) |
| Industrial Durability | Ruggedized Dust-Resistant Housing, Double-Layer Corner Sealing |
| Special Hardware Features | Lamp Error Detection, Anti-Image Retention, Built-in Temperature Sensor |
| Mechanical Dimensions | 1049.0 x 603.0 x 118.0 mm | VESA Mount: 600 x 400 mm | Weight: ~24.5 kg |
| Technical Parameter | Specification / Feature Details |
| Model / MPN | 460UX-3 (LH46GWPLBC/XY / LH46GWPLBC/ZA) |
| Display Size & Type | 46-inch Professional S-PVA (DID) Commercial LCD Panel |
| Native Resolution | Full HD (1920 x 1080) @ 60 Hz | 16:9 Aspect Ratio |
| Panel Brightness | 700 nits (Typical) for high-illumination public visibility |
| Contrast Ratio | 3000:1 (Static) | 10,000:1 (Dynamic) |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Viewing Geometry |
| Response Time | 8 ms (Gray-to-Gray) |
| Bezel Width Profile | Ultra-Narrow Bezel (2.3 mm Top/Left, 1.2 mm Bottom/Right) |
| Multi-Screen Scaling | Embedded Video Matrix Processor (Supports 1x1 to 10x10 configurations) |
| Video Input Interfaces | 1x DisplayPort, 2x HDMI, 1x DVI-D, 1x VGA (D-Sub 15-pin), Component/Composite |
| Video Output Loop | 1x DVI-D (Digital Loop-Out for loss-free matrix routing) |
| Data & Control Ports | RS232C In/Out, RJ45 LAN, 1x USB 2.0, Stereo Mini Jack (IR In/Out) |
| Built-in Audio | Integrated 20W Sound System (Dual 10W Speakers) |
| Industrial Durability | Ruggedized Dust-Resistant Housing, Double-Layer Corner Sealing |
| Special Hardware Features | Lamp Error Detection, Anti-Image Retention, Built-in Temperature Sensor |
| Mechanical Dimensions | 1049.0 x 603.0 x 118.0 mm | VESA Mount: 600 x 400 mm | Weight: ~24.5 kg |
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The 460UX-3 employs a specialized S-PVA Digital Information Display (DID) panel matrix engineered explicitly for heavy commercial applications. Standard LCD panels are vulnerable to gravity-induced liquid crystal sagging when mounted vertically or running in high-heat zones, which results in dark pooling. Samsung’s DID technology employs tighter structural cell barriers and custom liquid crystal viscosities to prevent sagging, ensuring absolute backlight uniformity across landscape and portrait orientations in locations like Dubai and Riyadh.
Airport arrival terminals and railway corridors frequently implement expansive glass atriums that generate intense ambient sunlight washout. While standard 500-nit video walls excel in regular office rooms, the 700-nit high-brightness output of the 460UX-3 pierces through high-intensity glare fields. This guarantees that flight paths, train schedules, and safety notifications remain fully legible from long viewing distances in transport hubs throughout Cairo, Casablanca, and Nairobi.
The internal circuitry of the 460UX-3 features a built-in hardware matrix scalar and processor. When managing a multi-screen wall setup, users can skip purchasing separate multi-window video wall controllers. System integrators can configure the display network directly via the on-screen menu or via RS232C commands, allowing the screen array to automatically crop and scale its portion of a single input signal across configurations up to a 10x10 grid matrix (100 displays).
In warehouses, transport terminals, or semi-outdoor public spaces across Central Asia and North Africa, airborne dust can ruin internal panel logic boards. The 460UX-3 features a specialized dust-resistant housing layout that incorporates sealed double-layer corner guards, rubberized shielding across screw ports, and fully protected user access holes. This layout prevents airborne dust accumulation from coating the high-voltage inverters, extending hardware lifespan and dropping maintenance callout rates.
For mission-critical command spaces in Almaty or Doha, a dead panel or thermal shutdown can jeopardize active tracking operations. The 460UX-3 integrates an automated Lamp Error Detection warning circuit that alerts network operators immediately via MagicInfo or MDC if an internal CCFL/backlight inverter drops current parameters. Simultaneously, embedded internal thermal probes actively log real-time operating temperatures, automatically regulating internal whisper-fans to keep the panel inside safe thermal guidelines without manually shutting down the array.
