Samsung SyncMaster UD55A UDA Series 55" High-Brightness Industrial LED Commercial Video Wall Display

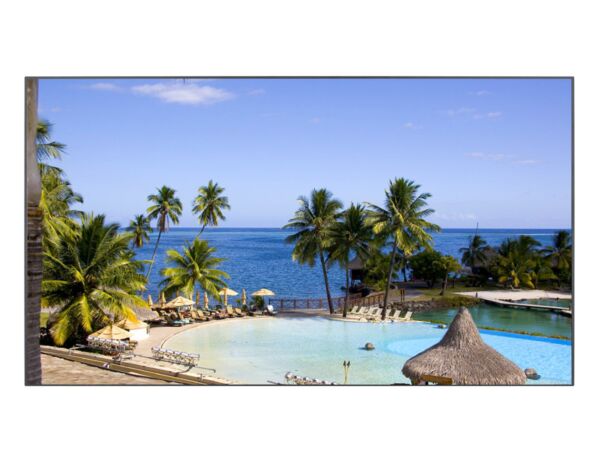

  • Samsung SyncMaster UD55A 55 inch LH55CPPLBB/EN industrial high brightness 700 nits direct lit LED video wall display

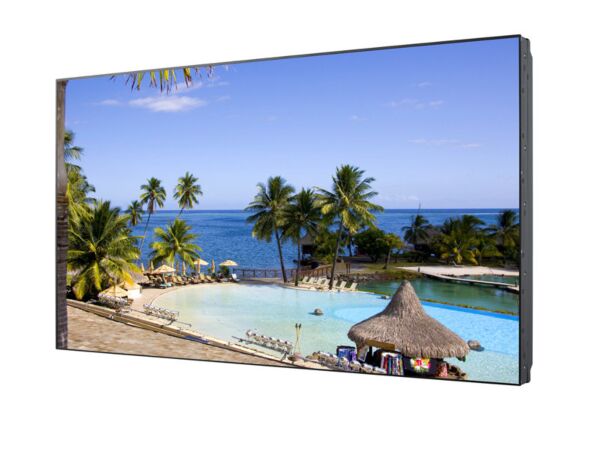

  • A 3x3 multi panel surveillance control room matrix utilizing Samsung UD55A super narrow bezel signage displays
1 5

Samsung SyncMaster UD55A UDA Series 55" High-Brightness Industrial LED Commercial Video Wall Display

Samsung SyncMaster UD55A UDA Series 55" High-Brightness Industrial LED Commercial Video Wall Display

Continuous 24/7 Heavy-Duty Runtime: Heavy-duty internal cooling paths and reinforced components built for relentless industrial performance.

Premium 700-Nit Brightness Panel: Delivers high-impact luminance that cuts through direct sunlight washout and harsh office glare.

5.5mm Bezel-to-Bezel Border Seam: Shrinks edge lines to maintain exceptional continuity for text, figures, and map telemetry.

DVI-D Digital Multi-Screen Loop-Out: Connects and routes uncompressed source feeds sequentially across large matrices up to 15x15 layouts.

Anti-Mura Liquid Crystal Protection: Shielding layer fortifies panels against cell darkening and localized clouding over years of service.

Multi-Step Factory Color Balancing: Adjustments optimize white balance consistency to eliminate the checkerboard effect across adjacent panels.

Centralized LAN & RS232C MDC Control: Empowers IT managers to execute remote power schedules, diagnostic tests, and input switching.

Samsung
Brand : Samsung
Model : UD55A (LH55CPPLBB/EN / LH55CPPLBB)

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Wall Bracket - VSVW02-46T

Samsung SyncMaster UD55A 55 inch LH55CPPLBB/EN industrial high brightness 700 nits direct lit LED video wall display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN UD55A (LH55CPPLBB/EN / LH55CPPLBB)
Display Size & Type 55-inch Direct-Lit LED (D-LED DID) Industrial LCD Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for high ambient-light performance
Contrast Ratio 3500:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Response Time 8 ms (Gray-to-Gray)
Bezel Width Profile Super-Narrow Bezel (3.7 mm Top/Left, 1.8 mm Bottom/Right | 5.5 mm B2B)
Panel Reliability Anti-Mura Panel Treatment | Specialized Image Retention Prevention
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation

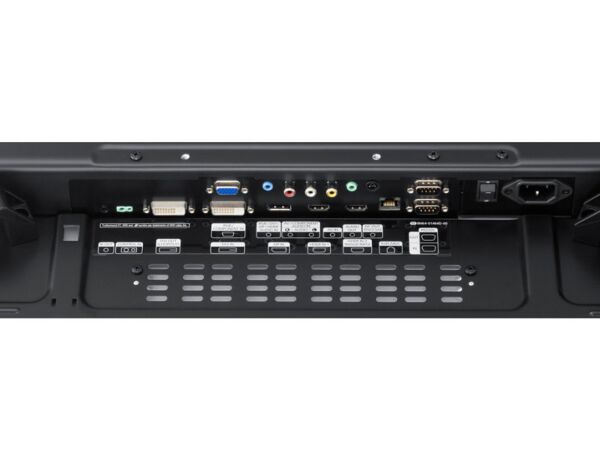

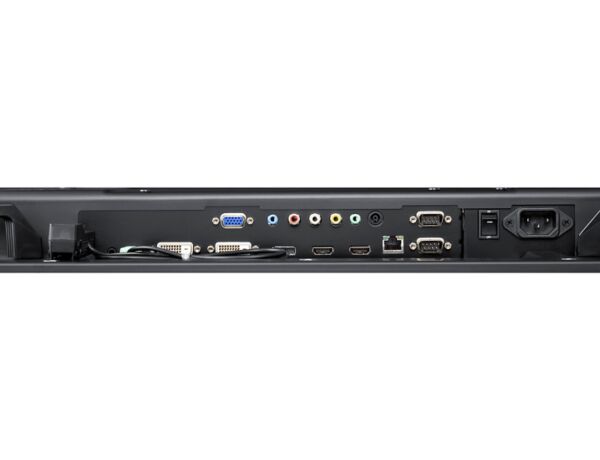

Video Input Interfaces 1x DisplayPort, 1x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component/Composite
Video Output Loop 1x DVI-D Out (Supports Digital Matrix Loop-Chaining up to 15x15 arrays)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Color Calibration Factory Multi-Step Uniformity Tuning | Built-In Hardware Color Calibration
Mechanical Dimensions 1215.3 x 686.1 x 96.0 mm | VESA Mount: 600 x 400 mm | Weight: ~24.0 kg

Ensure reliable, large-scale visual operations with the battle-tested Samsung SyncMaster UD55A Video Wall Display (LH55CPPLBB/EN). Purpose-built for critical environments that require continuous data tracking, high visibility, and maximum structural durability, this heavy-duty 55-inch commercial display features a rugged direct-lit DID LED architecture. Generating an elite 700 nits of high brightness alongside a strong 3500:1 static contrast ratio, the UD55A easily cuts through intense ambient glare and overhead industrial track lighting. This keeps complex mapping feeds, real-time telemetry metrics, and multi-window dashboard arrays perfectly sharp and readable across facilities in Dubai, Riyadh, and Doha.

The physical frame layout is built to combine individual monitors into a highly cohesive display canvas, utilizing a super-narrow 5.5mm bezel-to-bezel (B2B) seam profile (3.7mm on the top/left and 1.8mm on the bottom/right). This narrow spacing keeps visual line interruptions to a minimum at panel junctions, maintaining clean geometric lines for text strings and movement graphics across the complete array. Designed for expansive layout scaling across Africa and the CIS region, the UD55A comes equipped with a hardware-driven, high-bandwidth DVI-D loop-out video port. This digital routing interface enables installation crews to daisy-chain high-resolution source feeds across immense video wall configurations up to a massive 15x15 matrix (225 displays) without experiencing signal drop-off or needing external distribution amplifiers.

To handle the demands of around-the-clock deployments, the SyncMaster UD55A is treated with specialized anti-mura panel protections that reinforce the liquid crystal cell structures against heat spot blooming and clouding artifacts. Every monitor undergoes comprehensive multi-step factory calibration to align white balance and brightness values out of the box, preventing a distracting checkerboard look when displays are set up side-by-side. On-site AV teams can fine-tune display parameters across the entire network layout using the built-in Multi-Display Control (MDC) engine via RS232C or RJ45 LAN links. TrianzeTech secures your high-value infrastructure procurement with custom industrial pallet protection, verified freight safety, and end-to-end tracked global logistics.

Technical Parameter Specification / Feature Details
Model / MPN UD55A (LH55CPPLBB/EN / LH55CPPLBB)
Display Size & Type 55-inch Direct-Lit LED (D-LED DID) Industrial LCD Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for high ambient-light performance
Contrast Ratio 3500:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Response Time 8 ms (Gray-to-Gray)
Bezel Width Profile Super-Narrow Bezel (3.7 mm Top/Left, 1.8 mm Bottom/Right | 5.5 mm B2B)
Panel Reliability Anti-Mura Panel Treatment | Specialized Image Retention Prevention
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 1x DisplayPort, 1x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component/Composite
Video Output Loop 1x DVI-D Out (Supports Digital Matrix Loop-Chaining up to 15x15 arrays)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Color Calibration Factory Multi-Step Uniformity Tuning | Built-In Hardware Color Calibration
Mechanical Dimensions 1215.3 x 686.1 x 96.0 mm | VESA Mount: 600 x 400 mm | Weight: ~24.0 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard commercial screens often wash out or lose contrast when exposed to high-intensity track lighting or sunlit open-plan architectural spaces. The SyncMaster UD55A overcomes this with an industrial-grade Direct-Lit DID LED backlight array that produces 700 nits of continuous brightness. Combined with an optimized 3500:1 static contrast field, this ensures complex text matrices and critical security videos remain perfectly sharp for operators in Dubai and Riyadh.
Displays deployed in traffic monitoring hubs or energy grid centers show static layouts, maps, and system graphics for long periods. On lesser-grade monitors, the continuous heat can distort the liquid crystal layer, leading to localized clouding or irreversible dark spots known as mura. The LH55CPPLBB/EN features an advanced anti-mura panel design that structurally stabilizes the panel components, preventing color distortion over extended 24/7 operating cycles.
When multiple screens are combined to form a large dashboard canvas, thick border frames can create wide gap lines that fragment maps, cut off letters, and split numerical readouts. The UD55A features narrow frame edges measuring 3.7mm on the top/left and 1.8mm on the bottom/right sides. When tiled side-by-side, they create a crisp 5.5mm bezel-to-bezel (B2B) intersection, preserving graphic alignments and data accuracy across operations in Africa and the CIS region.
Yes. To avoid image degradation or split-second signal lag over a large multi-screen setup, standard systems often require expensive external signal splitters or matrix graphic processors. The LH55CPPLBB/EN features hardwired, high-bandwidth DVI-D input and loop-out connections. This robust interface passes uncompressed video down the display row sequentially, supporting massive digital wall layouts up to a 15x15 matrix configuration (225 monitors) without any signal loss.
If adjacent screens display slight variations in white balance or color temperature right out of their packaging, the complete video wall array looks like a mismatched, unappealing checkerboard. Every single UD55A panel undergoes systematic multi-step factory color calibration across the entire display canvas. This matches core chromaticity values and local brightness uniformity to ensure seamless color expression from day one across site installations in Almaty or Cairo.
