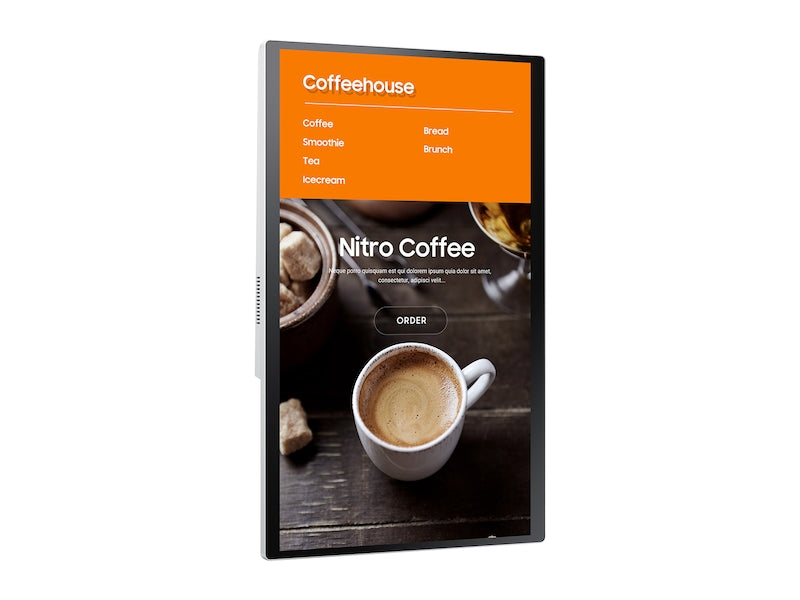

Samsung Kiosk KM24A 24" Full HD Smart Tizen All-in-One Self-Service Interactive Touch Display

Samsung Kiosk KM24A 24" Full HD Smart Tizen All-in-One Self-Service Interactive Touch Display

All-in-One PC-Less SoC Architecture: Internal Tizen 4.0 quad-core engine plays self-service apps natively to save premium countertop space.

10-Point Projective Capacitive Touch: Smooth P-CAP interface registers fast finger gestures and screen actions with instant precision.

UL-Certified Antimicrobial Glass: Specialized screen layer actively targets and reduces bacterial growth on the display panel.

3-Layer Samsung Knox Security Shield: Hardened hardware-level security paths keep user transaction profiles and customer data secure.

Modular Payment Box Expansion Option: Couples seamlessly with the KM24A-P cradle box to deploy a thermal printer, QR reader, and credit card mount.

Comprehensive MagicINFO Remote Control: Empowers your IT staff to diagnose operating bugs, check peripheral status, and schedule reboots remotely.

Versatile Placement Adaptation: Low-footprint, modern frame adapts easily to countertop stands, standalone floor pedestals, or flat wall mount brackets.

Samsung
Brand : Samsung
Model : KM24A (LH24KMATBGCXEN / LH24KMATBGCXUE)

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Samsung Kiosk KM24A 24 inch LH24KMATBGCXEN smart Tizen self service interactive touch display monitor
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN KM24A (LH24KMATBGCXEN / LH24KMATBGCXUE)
Display Size & Type 24-inch (23.8" Viewable) Commercial Advanced ADS LCD Touch Panel
Native Resolution Full HD (1920 x 1080) | Optimized Portrait Orientation Native Layout
Touch Interface Technology 10-Point Projective Capacitive Touch (P-CAP)
Panel Brightness 250 nits (Typical, without glass) for focused, high-clarity proximity use
Contrast Ratio 1000:1 (Static Layout) | Dynamic Mega Contrast Ratio
Glass Coating Treatments UL-Certified Antimicrobial Coating | Integrated Shatter-Resistant Film Layer
Onboard OS Platform Samsung Tizen 4.0 (VDLinux SoC Architecture)
Processor & Hardware Quad-Core Cortex A72 CPU (1.7 GHz) | 3GB LPDDR4 RAM | 8GB Flash Storage
Duty Cycle / Reliability 16 Hours / 7 Days Continuous Commercial Self-Service Operation
Data & Core Connectivity 1x HDMI In, 1x USB-A (Media/Peripherals), 1x RJ45 LAN, Wi-Fi
External Device Interface One Connect 44-Pin Proprietary Port (Hooks to KM24A-P Connection Box)
System Security Shield 3-Layer Hardware and App Security via Samsung Knox Platform
Remote Fleet Management Samsung MagicINFO Cloud Dashboard Monitoring and Maintenance
Mechanical Dimensions 547.9 x 334.4 x 48.8 mm | VESA Standard: 200 x 200 mm | Weight: ~4.4 kg

Transform standard retail transactional points and restaurant ordering workflows with the intelligent Samsung Tizen Kiosk Touch Display 24" (KM24A). Meticulously engineered as an all-in-one smart self-service interface, this highly responsive 24-inch system integrates an advanced 10-point projective capacitive touchscreen (P-CAP) to deliver smooth gesture navigation, precise menu scanning, and rapid virtual keyboard inputs. Operating on an enterprise-ready 16/7 runtime duty cycle, the KM24A streamlines quick-service restaurant operations, ticketing windows, and hotel check-in lines by transferring transaction queues directly to the buyer, dropping wait times and optimizing in-store workflow pathways across hubs in Dubai, Riyadh, and Doha.

The hardware configuration replaces clunky legacy kiosk terminal racks by embedding a highly capable Tizen 4.0 System-on-Chip (SoC) computer platform. Powered by a Cortex A72 quad-core 1.7 GHz processing brain and 3GB of LPDDR4 memory, this internal hardware runs menu layouts and processes self-checkout apps without requiring a standalone external PC. The screen is engineered with a specialized UL-certified antimicrobial coating that contains Zinc Pyrithione to continuously inhibit bacterial cell growth on the glass surface. This treatment works alongside a factory-fitted shatter-resistant film layer to prevent glass fragmentation in high-traffic commercial installations across Africa and the CIS region.

For full POS operational capability, the screen section utilizes a single-cable Samsung One Connect interface link to attach to the optional KM24A-P Connection Box (sold separately). This modular configuration gives you an integrated thermal ticket printer and fields for barcode readers, QR scanners, and EMV credit card terminals. System endpoints remain strongly defended by the integrated, 3-layer Samsung Knox security platform, which shields local consumer data paths and isolates applications from malicious attacks. Through Samsung MagicINFO cloud fleet monitoring networks, IT directors can remotely run network diagnostics, track active payment peripherals, and push global software patches. TrianzeTech facilitates complete corporate digital transformations with certified bulk shipping safety, pallet layout optimization, and fully tracked B2B transport fulfillment.

Technical Parameter Specification / Feature Details
Model / MPN KM24A (LH24KMATBGCXEN / LH24KMATBGCXUE)
Display Size & Type 24-inch (23.8" Viewable) Commercial Advanced ADS LCD Touch Panel
Native Resolution Full HD (1920 x 1080) | Optimized Portrait Orientation Native Layout
Touch Interface Technology 10-Point Projective Capacitive Touch (P-CAP)
Panel Brightness 250 nits (Typical, without glass) for focused, high-clarity proximity use
Contrast Ratio 1000:1 (Static Layout) | Dynamic Mega Contrast Ratio
Glass Coating Treatments UL-Certified Antimicrobial Coating | Integrated Shatter-Resistant Film Layer
Onboard OS Platform Samsung Tizen 4.0 (VDLinux SoC Architecture)
Processor & Hardware Quad-Core Cortex A72 CPU (1.7 GHz) | 3GB LPDDR4 RAM | 8GB Flash Storage
Duty Cycle / Reliability 16 Hours / 7 Days Continuous Commercial Self-Service Operation
Data & Core Connectivity 1x HDMI In, 1x USB-A (Media/Peripherals), 1x RJ45 LAN, Wi-Fi
External Device Interface One Connect 44-Pin Proprietary Port (Hooks to KM24A-P Connection Box)
System Security Shield 3-Layer Hardware and App Security via Samsung Knox Platform
Remote Fleet Management Samsung MagicINFO Cloud Dashboard Monitoring and Maintenance
Mechanical Dimensions 547.9 x 334.4 x 48.8 mm | VESA Standard: 200 x 200 mm | Weight: ~4.4 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard checkout kiosk networks utilize separate external PC boxes tucked under cabinets, requiring long video feeds and dedicated power blocks. This extra cabling can lead to connection drops, higher thermal output, and extra software vulnerabilities. The KM24A removes these risks by embedding an optimized Tizen 4.0 System-on-Chip (SoC) directly inside the monitor housing. This onboard computer handles customer app paths internally, dropping system-wide points of failure for businesses in Dubai and Riyadh.
Self-service screens installed in public retail environments handle hundreds of interactions daily, making them vectors for microscopic contaminants. The KM24A treats the surface glass layer with a UL-certified antimicrobial layer containing Zinc Pyrithione, which inhibits cell wall duplication for common bacteria. Additionally, a factory-fused shatter-resistant security film keeps the display fragments locked safely together if the panel suffers accidental impact damage in busy venues throughout Africa and the CIS region.
When store owners want to shift from basic ticket printing to advanced QR tracking or NFC mobile checkouts, legacy terminals often need complete hardware replacements. The display node of the KM24A links directly to the optional KM24A-P Connection Box via a high-density 44-pin Samsung One Connect structural port. This gives installers a modular foundation equipped with an internal thermal receipt printer, ready to snap onto cash-handling hardware, barcode readers, and EMV docks.
Kiosk platforms are primary targets for malicious digital intrusions aimed at collecting customer card files and checkout profiles. The KM24A is built with multi-layered Samsung Knox hardware-level security protection. Knox seals off the root system directory, monitors active memory pathways, and isolates application environments from unauthorized processes. This ensures transaction workflows comply with payment regulations across retail spaces in Almaty or Cairo.
Yes. Manually restarting or updating software across a scattered terminal layout can require significant technical travel time and costly store operational downtime. The KM24A fully supports the Samsung MagicINFO cloud management network. This centralized dashboard lets your off-site network team review system metrics, confirm active transaction printer rolls, read device error logs, and issue global software rollouts over the air.
