Samsung UDC Series 55" UD55C High Brightness Direct Lit LED Commercial Video Wall Display

Samsung UDC Series 55" UD55C High Brightness Direct Lit LED Commercial Video Wall Display

High-Output 700-Nit Luminance: Projects bright visual content that cuts through intense sunlight washout or glare fields.

Onboard Smart Signage Platform (SSSP): Built-in dual-core hardware runs synchronized multi-panel content configurations without external PCs.

44% High-Haze Glass Coating: Deflects reflections from overhead commercial tracks while guarding against static image burn-in.

5.5mm Bezel-to-Bezel Intersection: Super-narrow border profiles merge multiple displays into a near-seamless digital grid canvas.

DisplayPort 1.2 4K UHD Loop-Out: Links and routes high-resolution input sources across 100 displays simultaneously without matrix splitters.

24/7 Heavy-Duty Structural Build: Advanced internal cooling lines and integrated thermal sensors guarantee constant uptime.

Advanced Color Management Chipset: Integrated factory-tuned IC handles automated calibration for absolute brightness uniformity.

Samsung
Brand : Samsung
Model : UD55C / LH55UDCPLBB/UE

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Wall Bracket - VSVW02-46T

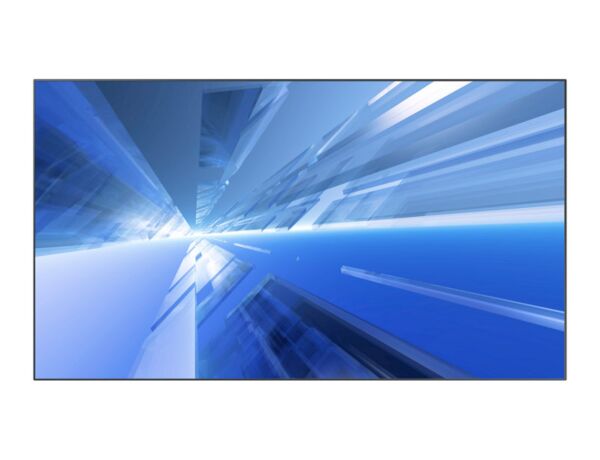

Samsung UDC Series 55 inch LH55UDCPLBB/UE high brightness 700 nits direct lit LED video wall display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN UD55C (LH55UDCPLBB/UE / LH55UDCPLBB/XY)
Display Size & Type 55-inch Direct-Lit LED (D-LED DID) Industrial Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for high ambient-light performance
Contrast Ratio 3500:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing
Response Time 8 ms (Gray-to-Gray)
Bezel Width Profile Super-Narrow Bezel (3.7 mm Top/Left, 1.8 mm Bottom/Right | 5.5 mm B2B)
Glass Haze / Non-Glare 44% Premium High-Haze Treatment for anti-retention & reflection deflection
Onboard SoC Platform Samsung Smart Signage Platform (SSSP) / MagicInfo VideoWall-S
Processor & Memory Cortex-A9 1GHz Dual-Core CPU | 1GB DDR3 RAM | 8GB Solid-State Storage
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 100 panels)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC), 1x USB 2.0
Color Calibration Factory Multi-Step Uniformity Tuning | Advanced Color Management (ACM) IC
Mechanical Dimensions 1215.3 x 686.1 x 96.0 mm | VESA Mount: 600 x 400 mm | Weight: ~24.0 kg

Command attention across any high-volume environment with the high-performance Samsung UDC Series 55" Video Wall Display (LH55UDCPLBB/UE). Engineered explicitly for public spaces, corporate lobbies, and command centers experiencing heavy ambient light, this display generates a powerful 700 nits of brightness. Unlike standard screens that wash out under overhead skylights, the direct-lit LED backlight structure pairs with a high native 3500:1 contrast ratio to preserve deep black fields and punchy color separation. This ensures that complicated informational matrices remain clearly legible across networks in Dubai, Riyadh, and Doha.

The display optimizes large-scale layout budgets by featuring the integrated Samsung Smart Signage Platform (SSSP). Backed by an internal Cortex-A9 dual-core system-on-chip and an embedded MagicInfo VideoWall-S player, the UD55C coordinates multi-screen configurations up to a 4x4 grid directly from a single master layout without requiring secondary PC hardware or media servers. When building larger display arrays across Africa and the CIS region, system integrators can deploy its advanced DisplayPort 1.2 loop-through digital connectivity. This architecture daisy-chains native 4K UHD signals seamlessly across massive matrices up to 10x10 grids without processing delay or frame lag.

To defend image quality under constant use, the UD55C includes an advanced 44% high-haze surface treatment that actively diffuses bright light sources while mitigating static ghosting through built-in anti-image retention cycles. Each device undergoes multi-step factory color calibration for white balance tracking and chromaticity matching right out of its shipping crate. For custom environments in Almaty or Cairo, internal Advanced Color Management (ACM) chipsets allow operators to push uniform adjustments across the entire local display network. TrianzeTech offers secure wholesale distribution and international logistics routing for this premier commercial AV solution.

Technical Parameter Specification / Feature Details
Model / MPN UD55C (LH55UDCPLBB/UE / LH55UDCPLBB/XY)
Display Size & Type 55-inch Direct-Lit LED (D-LED DID) Industrial Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for high ambient-light performance
Contrast Ratio 3500:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing
Response Time 8 ms (Gray-to-Gray)
Bezel Width Profile Super-Narrow Bezel (3.7 mm Top/Left, 1.8 mm Bottom/Right | 5.5 mm B2B)
Glass Haze / Non-Glare 44% Premium High-Haze Treatment for anti-retention & reflection deflection
Onboard SoC Platform Samsung Smart Signage Platform (SSSP) / MagicInfo VideoWall-S
Processor & Memory Cortex-A9 1GHz Dual-Core CPU | 1GB DDR3 RAM | 8GB Solid-State Storage
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 100 panels)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC), 1x USB 2.0
Color Calibration Factory Multi-Step Uniformity Tuning | Advanced Color Management (ACM) IC
Mechanical Dimensions 1215.3 x 686.1 x 96.0 mm | VESA Mount: 600 x 400 mm | Weight: ~24.0 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Edge-lit displays route backlighting from the perimeter of the panel, which can result in dimming zones near the center of a large 55-inch screen. The LH55UDCPLBB/UE utilizes a robust Direct-Lit LED backlight framework that places the light-emitting diodes directly behind the liquid crystal array. This provides a uniform 700 nits of consistent brightness across the entire panel layout, making it suitable for sunlit atriums or high-illumination public venues in Dubai and Riyadh.
In public security hubs or corporate data centers, text readouts, maps, and small numerical fields must remain clear from various viewing positions. The UD55C features a high 44% glass haze surface layer. This specialized treatment scatters sharp incoming reflection beams from office fixtures while integrating anti-retention software cycles, preventing screen glare from obscuring important visual elements.
Deploying traditional digital signage arrays usually involves running long video lines from external media players mounted behind each screen, creating multiple potential cable or hardware failure points. The UD55C features an integrated Samsung Smart Signage Platform (SSSP) driven by an onboard Cortex-A9 dual-core processor. This lets the display decode and run synchronized media files up to a 4x4 matrix configuration natively, removing the need for auxiliary player boxes.
Yes. Lower-tier digital signage walls that rely on legacy digital connections often require inline amplifiers to avoid signal degradation when expanding the display network. The LH55UDCPLBB/UE comes equipped with DisplayPort 1.2 input and loop-out digital channels. This high-bandwidth interface carries uncompressed video across daisy-chained configurations up to a 10x10 video wall layout (100 displays) while fully supporting 4K UHD resolutions across smaller 2x2 sections.
When multiple screens are mounted side-by-side, minor variations in manufacturing batches can lead to visible discrepancies in white balance or color temperature, creating an unappealing "checkerboard" effect. Each UD55C is calibrated at the factory using precision color-tuning tools to secure uniform color balance and matching color temperatures right out of the box. If unique lighting conditions in Almaty or Doha require field adjustments, the internal ACM integrated circuit allows for easy manual tuning over the local network.
