Samsung UDE-C Series 46" UD46E-C Ultra-Slim Bezel 24/7 Commercial LCD Video Wall Display

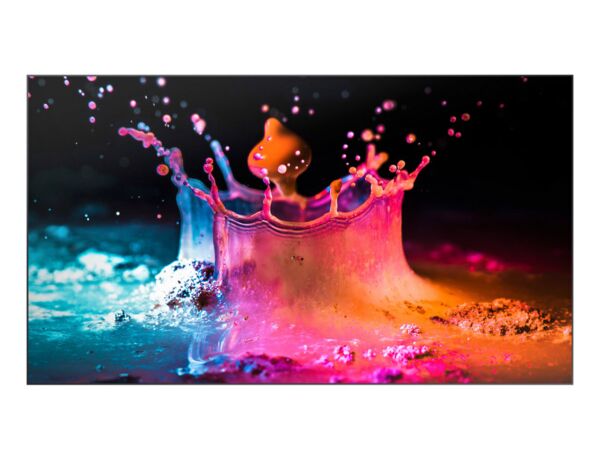

  • Samsung UDE-C Series 46 inch LH46UDECLBB/UE 24/7 commercial direct lit LED video wall display

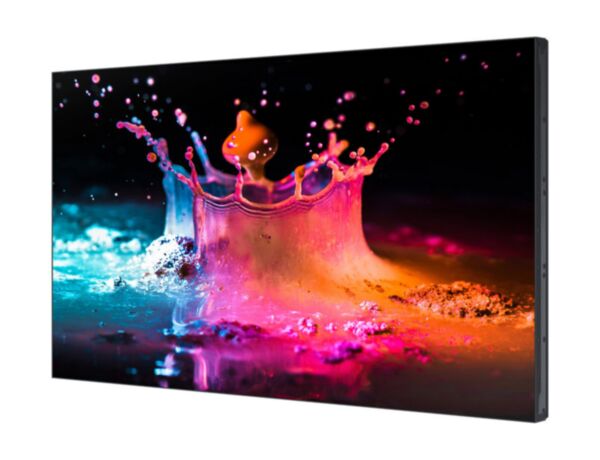

  • Front view of a multi screen digital signage wall configuration using Samsung UD46E-C ultra slim bezel monitors
1 5

Samsung UDE-C Series 46" UD46E-C Ultra-Slim Bezel 24/7 Commercial LCD Video Wall Display

Samsung UDE-C Series 46" UD46E-C Ultra-Slim Bezel 24/7 Commercial LCD Video Wall Display

Relentless 24/7 Industrial Runtime: Heavy-duty internal engineering optimized for uninterrupted performance in high-traffic hubs.

500-Nit Panel with 25% Anti-Glare Layer: Prevents reflections from overhead corporate lights while maintaining high visual contrast.

5.5mm Ultra-Slim Bezel Intersection: Shrinks the frame gap between panels to minimize visual alignment lines across layout grids.

SSSP Gen 3 Onboard Quad-Core SoC: Eliminates the necessity for standalone external PCs by decoding and pushing content files natively.

DisplayPort 1.2 Native UHD Daisy-Chaining: Splits and loops high-resolution input sources up to a 5x5 video wall array without matrix controllers.

Precision Factory Color Calibration: Multi-step adjustments align brightness and uniformity across all panels right from the assembly floor.

Space-Optimized 46-Inch Profile: Delivers high-density multi-panel grid arrays inside confined structural environments or retail kiosks.

Samsung
Brand : Samsung
Model : UD46E-C / LH46UDECLBB/UE / LH46UDECLBB/EN

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Wall Bracket - VSVW02-46T

Samsung UDE-C Series 46 inch LH46UDECLBB/UE 24/7 commercial direct lit LED video wall display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN UD46E-C (LH46UDECLBB/UE / LH46UDECLBB/EN)
Display Size & Type 46-inch Direct-Lit LED (D-LED DID) Industrial Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 500 nits (Typical) for continuous indoor clarity
Contrast Ratio 3500:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Response Time 8 ms (Gray-to-Gray)
Bezel Width Profile Ultra-Slim Bezel (3.7 mm Top/Left, 1.8 mm Bottom/Right | 5.5 mm B2B)
Glass Haze / Non-Glare 25% Premium Anti-Glare Layer for uniform light scattering
Onboard SoC Platform Samsung Smart Signage Platform (SSSP) Gen 3
Processor & Memory Embedded Quad-Core CPU | Integrated Solid-State Content Storage
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 5x5)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Color Calibration Factory Pre-Calibrated (ACM) | Local Uniformity >90% across 25 zones
Mechanical Dimensions 1023.8 x 578.4 x 96.0 mm | VESA Mount: 400 x 400 mm | Weight: ~18.0 kg

Sustain uncompromised operational performance in tight physical footprints with the space-efficient Samsung UDE-C Series 46" Video Wall Display (LH46UDECLBB/UE). Meticulously engineered for dependable 24/7 continuous duty cycles, this industrial-grade panel acts as a core visual building block for narrow retail corridors, quick-service restaurant menus, and compact security checkpoints. Emitting 500 nits of continuous brightness, the panel pairs an advanced direct-lit LED backlighting engine with a high native 3500:1 static contrast ratio. This keeps charts, digital menus, and surveillance analytics visually sharp without suffering from color fading under standard corporate track lighting networks across Dubai, Riyadh, and Doha.

The UD46E-C maximizes system deployment efficiency by utilizing the integrated third-generation Samsung Smart Signage Platform (SSSP Gen 3). Driven by an embedded quad-core system-on-chip (SoC), this built-in engine manages complex signage layouts and coordinates multi-screen scaling matrices directly, entirely removing the need for external media players or media server racks. The ultra-slim 5.5mm bezel-to-bezel structural gap minimizes visual separation between displays, creating a cohesive visual layout. By utilizing hardware-level DisplayPort 1.2 loop-out interfaces, system integration teams can daisy-chain uncompressed 4K UHD signals into matrices as large as a 5x5 layout without encountering signal drop-off or needing external distribution amplifiers.

To prevent the visual flaws associated with standard displays, each UDE-C monitor undergoes rigorous multi-step factory calibration to align white balance levels and color parameters right out of the box. This specialized tuning maintains local brightness uniformity of more than 90 percent across 25 layout zones, preventing a distracting checkerboard look across locations in Africa and the CIS region. Backed by advanced heat dissipating sub-components and a 25% anti-glare glass coating that disperses direct mirror reflections, the chassis maintains deep color accuracy over years of operation. TrianzeTech manages the complete commercial AV supply chains, secure freight packaging, and verified logistics fulfillment for multi-screen project rollouts.

Technical Parameter Specification / Feature Details
Model / MPN UD46E-C (LH46UDECLBB/UE / LH46UDECLBB/EN)
Display Size & Type 46-inch Direct-Lit LED (D-LED DID) Industrial Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 500 nits (Typical) for continuous indoor clarity
Contrast Ratio 3500:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry
Response Time 8 ms (Gray-to-Gray)
Bezel Width Profile Ultra-Slim Bezel (3.7 mm Top/Left, 1.8 mm Bottom/Right | 5.5 mm B2B)
Glass Haze / Non-Glare 25% Premium Anti-Glare Layer for uniform light scattering
Onboard SoC Platform Samsung Smart Signage Platform (SSSP) Gen 3
Processor & Memory Embedded Quad-Core CPU | Integrated Solid-State Content Storage
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 5x5)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Color Calibration Factory Pre-Calibrated (ACM) | Local Uniformity >90% across 25 zones
Mechanical Dimensions 1023.8 x 578.4 x 96.0 mm | VESA Mount: 400 x 400 mm | Weight: ~18.0 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The third-generation Samsung Smart Signage Platform (SSSP Gen 3) updates the display's internal computing architecture with an embedded quad-core processor and flash memory layer. This onboard platform decodes, loops, and synchronizes video wall playlists directly from local storage or network streams. By removing the need to connect separate external media players behind individual screens, it drops hardware procurement costs and limits network-wide physical points of failure across Dubai and Riyadh.
Deploying large 55-inch modules on narrow train platform columns or built-in retail kiosks can cause the monitors to overhang into walkways, violating code safety parameters. The UD46E-C features a compact 46-inch diagonal frame size that drastically reduces total width and height metrics. This ensures complex informational matrices remain highly visible in compact public layouts throughout Africa and the CIS region.
Traditional desktop or commercial monitors feature thick edge bezels that fragment graphs, texts, and geographic borders when tiled together. The LH46UDECLBB/UE features a narrow housing width measuring 3.7mm on the top/left and 1.8mm on the bottom/right sides. When mounted side-by-side, they form a clean 5.5mm bezel-to-bezel (B2B) intersection, ensuring that fine text strings and moving data graphics stay mathematically aligned across the multi-display layout.
Yes. The LH46UDECLBB/UE features built-in, hardware-accelerated DisplayPort 1.2 input and digital loop-out ports. Integration teams can route a single uncompressed UHD master feed into the first panel and daisy-chain the source down the display row line sequentially. This digital grid loop easily processes configurations up to a 5x5 video wall setup without dropping frames, completely avoiding the costs of distribution amplifiers or external splitter blocks.
If adjacent screens display slight variations in white balance or chromaticity right out of their packaging, the complete video wall array looks like a mismatched, unappealing checkerboard. Every single UDE-C panel undergoes systematic multi-step factory color calibration across 25 distinct sample points. This ensures a local uniformity rating of greater than 90 percent across the screen surface, giving technical crews in Almaty or Cairo perfectly aligned color matching on day one of operation.
