| Technical Parameter | Specification / Feature Details |
| Model / MPN | UD55E-P (LH55UDEPLBB/UE / LH55UDEPLBB/EN) |
| Display Size & Type | 55-inch Direct-Lit LED (D-LED DID) Industrial Panel |
| Native Resolution | Full HD (1920 x 1080) | 16:9 Aspect Ratio |
| Panel Brightness | 700 nits (Typical) for high ambient-light punching power |
| Contrast Ratio | 4000:1 (Static) | 10,000:1 (Dynamic MEGA DCR) |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry |
| Response Time | 8 ms (Gray-to-Gray) |

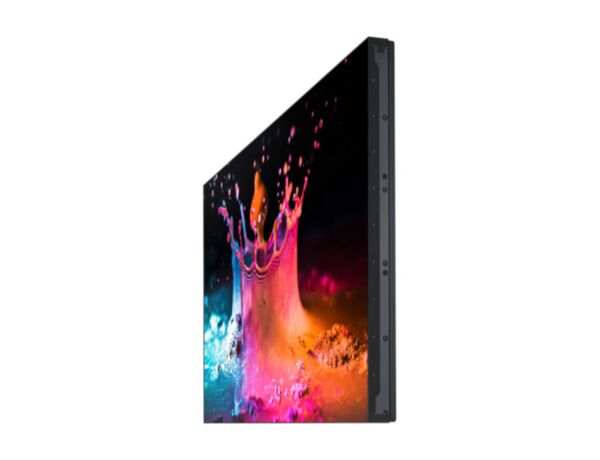

| Bezel Width Profile | Ultra-Narrow Bezel (2.3 mm Top/Left, 1.2 mm Bottom/Right | 3.5 mm B2B) |
| Glass Haze / Non-Glare | 25% Premium Anti-Glare Layer for uniform light scattering |
| Onboard SoC Platform | Samsung Smart Signage Platform (SSSP) Gen 3 |
| Processor & Memory | Embedded Quad-Core CPU | Integrated Solid-State Content Storage |
| Duty Cycle / Reliability | 24 Hours / 7 Days Continuous Industrial Operation |
| Video Input Interfaces | 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component |
| Video Output Loop | 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 5x5) |
| Data & Control Ports | RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC) |
| Color Calibration | Factory Pre-Calibrated (ACM) | Local Uniformity >90% across 25 zones |
| Mechanical Dimensions | 1213.5 x 684.3 x 96.6 mm | VESA Mount: 600 x 400 mm | Weight: ~23.3 kg |
| Technical Parameter | Specification / Feature Details |
| Model / MPN | UD55E-P (LH55UDEPLBB/UE / LH55UDEPLBB/EN) |
| Display Size & Type | 55-inch Direct-Lit LED (D-LED DID) Industrial Panel |
| Native Resolution | Full HD (1920 x 1080) | 16:9 Aspect Ratio |
| Panel Brightness | 700 nits (Typical) for high ambient-light punching power |
| Contrast Ratio | 4000:1 (Static) | 10,000:1 (Dynamic MEGA DCR) |
| Viewing Angle (H / V) | 178° / 178° Ultra-Wide Off-Axis Structural Viewing Geometry |
| Response Time | 8 ms (Gray-to-Gray) |
| Bezel Width Profile | Ultra-Narrow Bezel (2.3 mm Top/Left, 1.2 mm Bottom/Right | 3.5 mm B2B) |
| Glass Haze / Non-Glare | 25% Premium Anti-Glare Layer for uniform light scattering |
| Onboard SoC Platform | Samsung Smart Signage Platform (SSSP) Gen 3 |
| Processor & Memory | Embedded Quad-Core CPU | Integrated Solid-State Content Storage |
| Duty Cycle / Reliability | 24 Hours / 7 Days Continuous Industrial Operation |
| Video Input Interfaces | 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component |
| Video Output Loop | 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 5x5) |
| Data & Control Ports | RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC) |
| Color Calibration | Factory Pre-Calibrated (ACM) | Local Uniformity >90% across 25 zones |
| Mechanical Dimensions | 1213.5 x 684.3 x 96.6 mm | VESA Mount: 600 x 400 mm | Weight: ~23.3 kg |
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The third-generation Samsung Smart Signage Platform (SSSP Gen 3) upgrades the internal processing architecture to a heavy-duty quad-core processor. This hardware environment eliminates the requirement for separate external media server racks or local PCs mounted behind individual display nodes. The onboard engine directly processes, scales, and loops complex multi-screen media configurations natively, dramatically dropping hardware points of failure for businesses across Dubai and Riyadh.
In brightly lit facilities, lesser-grade panels can suffer from light bleed, color drift, or localized cell darkening when running around the clock. The LH55UDEPLBB/UE pairs a uniform Direct-Lit LED architecture with 700 nits of brightness, applying physical reinforcement grids directly behind the liquid crystal layers. This structural backing dissipates internal operating heat evenly, maintaining a 4000:1 static contrast field without color distortion or light leakage over long operational spans.
When uncalibrated panels are linked into a single video wall matrix, color disparities turn the layout into a mismatched checkerboard. Each UDE-P screen undergoes advanced multi-step factory tuning that holds white balance differences strictly under 300 degrees Kelvin, while securing an industry-leading local uniformity of over 90 percent across 25 layout zones. This provides uniform, flawless color expression out of the box in critical locations like Almaty and Doha.
Yes. The LH55UDEPLBB/UE includes an onboard DisplayPort 1.2 digital matrix link. System integration crews can input a single uncompressed 4K input feed into the first monitor and daisy-chain the source down the display array sequentially. This digital loop handles configurations up to a 5x5 video wall setup seamlessly, completely avoiding the costs of standalone distribution amplifiers or external graphic cards.
Aligning multiple 55-inch panels down a massive flat wall can be a tedious process for installation crews. The UDE-P series integrates with a slim 39mm depth video wall mount featuring an integrated three-dimensional mechanical axis layout. Installers can turn dedicated adjustment screws to execute perfect X-axis (up-down), Y-axis (left-right), and Z-axis (push-pull pop-up) alignments, allowing for fast individual screen replacement or alignment calibration in transport nodes throughout Cairo and Casablanca.
