Samsung UDE-S Series 55" Full HD Broadcast-Optimized Commercial LCD Video Wall Display (LH55UDEOLBB/UE)

Samsung UDE-S Series 55" Full HD Broadcast-Optimized Commercial LCD Video Wall Display (LH55UDEOLBB/UE)

Camera-Optimized 2,800K–6,500K Range: Matches studio lighting requirements to guarantee flawless color translation on broadcast cameras.

44% Premium High-Haze Non-Glare Layer: Eliminates severe mirror reflection blooms caused by high-intensity overhead studio spotlights.

3.5mm Ultra-Narrow Bezel Intersection: Minimizes panel seams to deliver a nearly uninterrupted digital canvas for newsroom sets.

Studio-Grade 700-Nit Brightness output: Pushes crisp, eye-catching visual elements that pop clearly on screen under studio conditions.

DisplayPort 1.2 Native UHD Daisy-Chaining: Splits and loops 4K input signals up to a 5x5 grid architecture without requiring external processor boxes.

24/7 Continuous Mission-Critical Uptime: Industrial-grade thermal defense panel layout deters heat, screen darkening, and light leaks.

Broadcast Home Menu Configuration: Simplified UI layer grants fast access to color balancing and white balance controls for fast-moving production teams.

Samsung
Brand : Samsung
Model : UDE-S Series 55" / LH55UDEOLBB/UE

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

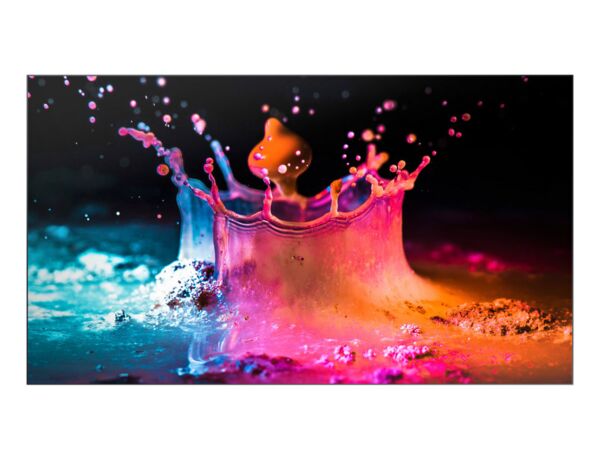

Samsung UDE-S Series 55 inch broadcast optimized studio video wall display LH55UDEOLBB
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN UDE-S Series 55" (LH55UDEOLBB/UE)
Display Size & Type 55-inch Direct-Lit LED (D-LED DID) Industrial Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for punchy, studio-grade luminance
Broadcast Color Temp 2,800 K – 6,500 K Optimized Range (Prevents camera color distortion)
Contrast Ratio 4000:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Studio Off-Axis Uniformity
Bezel Width Profile Ultra-Narrow Bezel (2.3 mm Top/Left, 1.2 mm Bottom/Right | 3.5 mm B2B)
Glass Haze / Non-Glare 44% Premium High-Haze Treatment for camera reflection deflection
Operating System Embedded MagicInfo Player S3 / Proprietary Tizen-based Engine
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Operational Certification
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Video Wall Daisy-Chaining)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Color Calibration Advanced Factory Tuning | Color Expert Pro Mobile Support
Mechanical Dimensions 1213.5 x 684.3 x 96.6 mm | VESA Mount: 600 x 400 mm | Weight: ~21.5 kg

Engineered specifically to solve the unique visual challenges of live television production, the Samsung UDE-S Series 55" Video Wall Display (LH55UDEOLBB/UE) is the industry standard for broadcast studio backdrops. Unlike conventional commercial signs that run at a cold 10,000 Kelvin color profile, the UDE-S panel features a targeted color value temperature range of 2,800 K to 6,500 K. This allows newsrooms and production studios across Dubai and Riyadh to match screen output perfectly with studio camera white balance settings, eliminating flickering, moiré effects, and unnatural skin tone skewing on air. Operating at 700 nits of high brightness, it maintains a vivid presence even under intense grid-lit soundstages.

The mechanical design limits visual distraction through an ultra-narrow 3.5mm bezel-to-bezel alignment gap (2.3mm top/left and 1.2mm bottom/right), allowing expansive imagery and studio backdrops to flow across multi-screen arrays without line fragmentation. Studio lighting grids generate massive mirror glare on standard panels; the UDE-S counters this with an advanced 44% high-haze non-glare surface treatment. This layer diffuses harsh spotlight reflections across the panel face while preserving a 4000:1 static contrast ratio for clean blacks and graphic definition. The display includes an integrated DisplayPort 1.2 loop-through digital matrix, enabling video walls up to a 5x5 array to push native 4K UHD signals without needing external splitters.

For broadcasters and corporate networks across Africa and the CIS region, color continuity across a massive digital canvas is mandatory. Every UDE-S screen is pre-tuned via a multi-step factory calibration process, securing local screen uniformity of more than 90 percent. On-site technical directors can handle rapid adjustments directly through an easily navigable, specialized studio home menu or via the Samsung Color Expert Pro Mobile app using a smartphone camera. Backed by a rugged chassis and a continuous 24/7 mission-critical duty cycle, this display maintains long-term panel stability without overheating. TrianzeTech offers dedicated logistics routing and wholesale enterprise delivery for this premium broadcast solution.

Technical Parameter Specification / Feature Details
Model / MPN UDE-S Series 55" (LH55UDEOLBB/UE)
Display Size & Type 55-inch Direct-Lit LED (D-LED DID) Industrial Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for punchy, studio-grade luminance
Broadcast Color Temp 2,800 K – 6,500 K Optimized Range (Prevents camera color distortion)
Contrast Ratio 4000:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Studio Off-Axis Uniformity
Bezel Width Profile Ultra-Narrow Bezel (2.3 mm Top/Left, 1.2 mm Bottom/Right | 3.5 mm B2B)
Glass Haze / Non-Glare 44% Premium High-Haze Treatment for camera reflection deflection
Operating System Embedded MagicInfo Player S3 / Proprietary Tizen-based Engine
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Operational Certification
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x Analog D-Sub (VGA), Component
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Video Wall Daisy-Chaining)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC)
Color Calibration Advanced Factory Tuning | Color Expert Pro Mobile Support
Mechanical Dimensions 1213.5 x 684.3 x 96.6 mm | VESA Mount: 600 x 400 mm | Weight: ~21.5 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard signage screens run at a native color profile of roughly 10,000 Kelvin, which looks blue and cold on television feeds. Professional studio cameras are calibrated to capture lighting profiles ranging from warm tungsten to natural daylight. The UDE-S series features a low-temperature panel tuned to a native 2,800 K – 6,500 K color spectrum. This matches studio environments in Dubai and Riyadh, avoiding tinting errors, image distortion, or weird skin tones during live broadcasts.
Television production soundstages use high-output overhead key lights and fill spots that create blind spots on standard glossy or low-haze screens. The LH55UDEOLBB/UE features a premium 44% glass haze surface treatment, which is significantly higher than standard commercial displays. This specialized non-glare coating scatters intense direct spot lines across the face of the glass, maintaining contrast levels and readability from tight angles without blooming into the camera lens.
Generating Ultra-High Definition (UHD) visuals across a massive background panel layout usually demands an external multi-output graphic matrix or an expensive media server array. The LH55UDEOLBB/UE features built-in DisplayPort 1.2 input and loop-out infrastructure. Production teams can send an uncompressed 4K media master feed into the first panel and daisy-chain the signal down the line to complete configurations up to a 5x5 video wall array natively, lowering hardware overhead costs.
Enclosed studio spaces get hot quickly under massive production lighting rigs, causing standard commercial screens to suffer from edge-backlight yellowing or liquid crystal pooling. The LH55UDEOLBB/UE uses an upgraded, reinforced direct-lit LED panel layout built for 24/7 continuous operations. It features high-grade internal heat sinks and automated temperature sensors that manage cooling dynamics to stop screen darkening and color drift over long broadcast schedules.
If adjacent screens on a video wall display tiny discrepancies in brightness or color uniformity, the entire backdrop can look like a fragmented checkerboard on camera. Each LH55UDEOLBB/UE is calibrated from the factory to hit an industry-leading local uniformity of more than 90 percent across 25 separate zones of the screen. This yields balanced color saturation and white balance parameters across the complete backdrop array out of the box, saving manual post-installation adjustment time for crews in Almaty or Cairo.
