Samsung UEA Series 46" UE46A Ultra Thin Slim Bezel Edge-Lit LED Commercial Video Wall Display

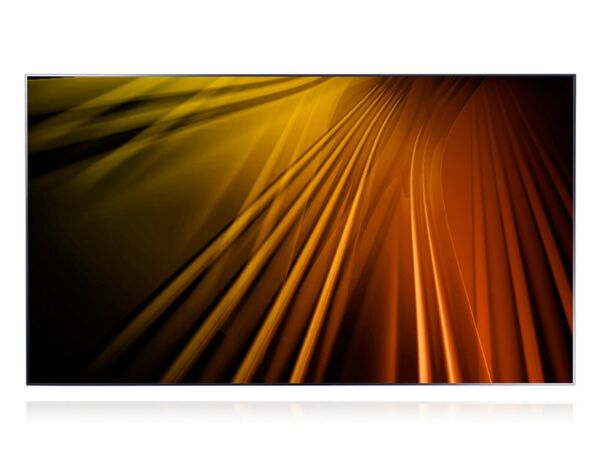

  • Samsung UEA Series 46 inch LH46UEAPLGC/NG ultra thin 29.9mm edge lit LED video wall signage display
  • Side profile view of ultra slim 29.9mm depth Samsung UE46A commercial video wall panel on a flush mount
1 10

Samsung UEA Series 46" UE46A Ultra Thin Slim Bezel Edge-Lit LED Commercial Video Wall Display

Samsung UEA Series 46" UE46A Ultra Thin Slim Bezel Edge-Lit LED Commercial Video Wall Display

Ultra-Slim 29.9mm Cabinet Depth: Low-profile build sits incredibly flush to the wall, saving spatial square footage in high-end environments.

Embedded Smart Signage Platform (SSSP): Onboard dual-core SoC runs standalone video wall content arrays without separate media player boxes.

High Contrast 5000:1 Image Panel: Edge-lit LED setup delivers punchy color depth, pure white balancing, and stark contrast values.

DisplayPort 1.2 Multi-Screen Loop-Out: Routes native high-definition inputs seamlessly across multi-screen walls up to 10x10 configurations.

Integrated 20W Stereo Sound: Dual 10W internal speaker banks handle complete multi-media audio tracks directly to reduce peripheral cost.

Lightweight 11.8 kg Framework: Slim structural build drastically simplifies mounting logistics on varied wall structures or partitions.

Lamp Error & Thermal Sensor Probes: Hardware monitoring arrays report operational metrics automatically to avoid sudden system downtime.

Samsung
Brand : Samsung
Model : UE46A / LH46UEAPLGC/NG

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Wall Bracket - VSVW02-46T

Samsung UEA Series 46 inch LH46UEAPLGC/NG ultra thin 29.9mm edge lit LED video wall signage display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN UE46A (LH46UEAPLGC/NG / LH46UEAPLGC/EN)
Display Size & Type 46-inch 240Hz Edge-Lit LED Commercial LCD Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Ultra-Slim Cabinet Depth 29.9 mm (1.18 inches) for flush architectural mounting
Panel Brightness 500 nits (Typical) for premium indoor clarity
Contrast Ratio 5000:1 (Static) | 100,000:1 (Dynamic in AV Mode)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Uniformity
Response Time 4 ms (Gray-to-Gray)
Bezel Width Profile Slim Bezel Layout (5.5 mm Screen-to-Screen)
Onboard SoC Platform Samsung Smart Signage Platform (SSSP) Gen 1
Processor & Memory Cortex-A9 1GHz Dual-Core CPU | 1GB DDR3 RAM | 8GB FDM Storage
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x VGA (D-Sub), Component/Composite
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining)
Data & Control Ports 2x USB 2.0, RS232C In/Out (Stereo Jack), RJ45 LAN In, Audio In/Out
Built-in Audio Integrated 20W System (Dual 10W Internal Speakers)
Color Calibration Factory Pre-Calibrated White Balance | Advanced Color Management (ACM)
Mechanical Dimensions 1030.9 x 585.4 x 29.9 mm | VESA Mount: 400 x 400 mm | Weight: ~11.8 kg

Maximize your visual impact while minimizing your physical footprint with the ultra-slim Samsung UEA Series 46" Video Wall Display (LH46UEAPLGC/NG). Specifically engineered for space-conscious corporate environments, luxury retail spaces, and upscale hospitality lounges where heavy commercial monitors disrupt clean interior design, this display features a cabinet depth of just 29.9mm (1.18 inches). This exceptionally thin profile enables multi-screen matrix walls to install virtually flush against surfaces, seamlessly blending with premium architecture while automatically complying with strict international public safety regulations and ADA clearance guidelines across Dubai, Riyadh, and Doha.

The display utilizes an advanced edge-lit LED matrix that pumps out 500 nits of continuous brightness, supported by an impressive native 5000:1 static contrast ratio that yields ink-like blacks and exceptional text legibility even under sharp ambient corporate lighting. The UEA Series streamlines content orchestration via the built-in Samsung Smart Signage Platform (SSSP). Backed by an onboard Cortex-A9 dual-core processor and internal flash storage running native MagicInfo VideoWall layers, this system allows operators to deploy synchronized signage playlists across arrays up to a 4x4 grid directly from a local USB or network directory without purchasing external media player boxes.

For enterprise scale-outs across Africa and the CIS region, the monitor supports uncompressed 4K matrix scaling via its hardware-driven DisplayPort 1.2 loop-through digital connections. This framework lets installation crews daisy-chain high-resolution source signals across video walls up to a 10x10 configuration with zero structural frame dropping or signal degradation. To shield your AV infrastructure from operational hazards, the lightweight chassis features smart environmental protections, including a built-in temperature sensor probe and an integrated Lamp Error Detection warning loop. TrianzeTech manages the project coordination, bulk packing, and verified global shipping for this high-tier Samsung display asset.

Technical Parameter Specification / Feature Details
Model / MPN UE46A (LH46UEAPLGC/NG / LH46UEAPLGC/EN)
Display Size & Type 46-inch 240Hz Edge-Lit LED Commercial LCD Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Ultra-Slim Cabinet Depth 29.9 mm (1.18 inches) for flush architectural mounting
Panel Brightness 500 nits (Typical) for premium indoor clarity
Contrast Ratio 5000:1 (Static) | 100,000:1 (Dynamic in AV Mode)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Uniformity
Response Time 4 ms (Gray-to-Gray)
Bezel Width Profile Slim Bezel Layout (5.5 mm Screen-to-Screen)
Onboard SoC Platform Samsung Smart Signage Platform (SSSP) Gen 1
Processor & Memory Cortex-A9 1GHz Dual-Core CPU | 1GB DDR3 RAM | 8GB FDM Storage
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x VGA (D-Sub), Component/Composite
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining)
Data & Control Ports 2x USB 2.0, RS232C In/Out (Stereo Jack), RJ45 LAN In, Audio In/Out
Built-in Audio Integrated 20W System (Dual 10W Internal Speakers)
Color Calibration Factory Pre-Calibrated White Balance | Advanced Color Management (ACM)
Mechanical Dimensions 1030.9 x 585.4 x 29.9 mm | VESA Mount: 400 x 400 mm | Weight: ~11.8 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard direct-lit commercial displays feature thick housings that can protrude up to 100mm from a wall surface, necessitating expensive recess construction to pass local building safety inspections. The LH46UEAPLGC/NG is engineered with an advanced edge-lit backlight array that reduces the entire cabinet depth profile to just 29.9mm. When paired with slim commercial mounts in corporate paths across Dubai and Riyadh, the video wall remains thin and flush against the surface, saving floor footprint.
Traditional video wall configurations require a separate external media player or dedicated PC attached to the rear of every single screen, which multiplies equipment costs and introduces points of failure. The UEA Series display integrates the first-generation Samsung Smart Signage Platform (SSSP). This system features an onboard Cortex-A9 dual-core processor and internal flash storage that decodes high-definition media fields natively, letting IT administrators run standalone loops up to a 4x4 array with zero external computer hardware.
Yes. The LH46UEAPLGC/NG is built with advanced DisplayPort 1.2 input and digital loop-out connections. When configuring large multi-panel arrays in Central Asia or North Africa, integration teams can pipe an uncompressed video signal into the initial monitor and loop it down the display line sequentially. This digital daisy-chain handles expansive multi-screen scaling up to a 10x10 video wall layout without signal drop-off, removing the need for external distribution amplifiers or hardware splitters.
Many standard high-speed video wall panels rely on IPS variants that offer a limited 1000:1 to 1200:1 native contrast boundary, which can make dark visual tones appear muddy or gray under bright overhead office track lighting. The UE46A utilizes an advanced commercial alignment layer that achieves a 5000:1 static contrast ratio. This ensures deeper black levels and excellent color separation, which is crucial for showing high-contrast branding graphics and intricate corporate data sets.
Heavy multi-panel video walls place enormous structural strain on interior partition walls, often requiring reinforcing steel studs or backing plates. Weighing an ultra-light 11.8 kg, the UE46A reduces structural strain significantly compared to bulky direct-lit alternatives. This allows fast, low-cost architectural integration onto lightweight drywall framing or freestanding retail kiosks in fast-paced rollout schedules throughout Almaty, Cairo, and Dubai.
