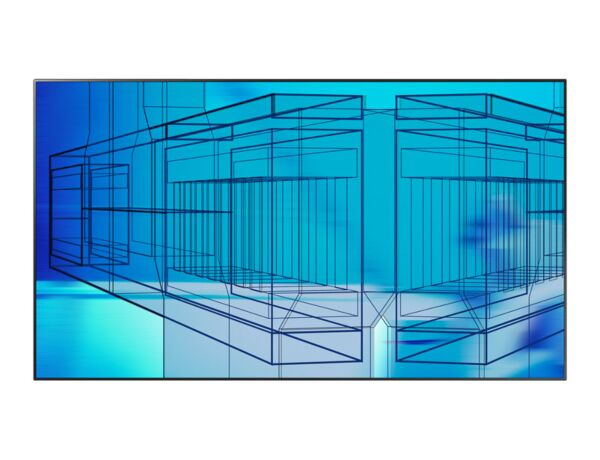

Samsung UEC Series 55" UE55C Ultra-Thin Edge-Lit LED Commercial Video Wall Display

  • Samsung UEC Series 55 inch UE55C ultra thin 29.9mm edge lit LED video wall signage display
1 3

Samsung UEC Series 55" UE55C Ultra-Thin Edge-Lit LED Commercial Video Wall Display

Samsung UEC Series 55" UE55C Ultra-Thin Edge-Lit LED Commercial Video Wall Display

Ultra-Slim 29.9mm Cabinet Depth: Low-profile build sits incredibly flush to the wall, saving spatial square footage in high-end environments.

Embedded Smart Signage Platform (SSSP): Onboard dual-core SoC runs standalone video wall content arrays without separate media player boxes.

High Contrast 5000:1 Image Panel: Edge-lit LED setup delivers punchy color depth, pure white balancing, and stark contrast values.

DisplayPort 1.2 Multi-Screen Loop-Out: Routes native high-definition inputs seamlessly across multi-screen walls up to 10x10 configurations.

Integrated 20W Stereo Sound: Dual 10W internal speaker banks handle complete multi-media audio tracks directly to reduce peripheral cost.

Factory Tuned Advanced Color Management: Arrives completely balanced for chromatic consistency across large multi-display arrangements.

Lamp Error & Thermal Sensor Probes: Hardware monitoring arrays report operational metrics automatically to avoid sudden system downtime.

Samsung
Brand : Samsung
Model : UE55C / LH55UECPLGC/XY

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Wall Bracket - VSVW02-46T

Samsung UEC Series 55 inch UE55C ultra thin 29.9mm edge lit LED video wall signage display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN UE55C (LH55UECPLGC/XY / LH55UECPLGC/EN)
Display Size & Type 55-inch 240Hz Edge-Lit LED Commercial LCD Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Ultra-Slim Cabinet Depth 29.9 mm (1.18 inches) for flush architectural mounting
Panel Brightness 500 nits (Typical) for premium indoor clarity
Contrast Ratio 5000:1 (Static) | 100,000:1 (Dynamic in AV Mode)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Uniformity
Response Time 4 ms (Gray-to-Gray)
Bezel Width Profile Narrow Bezel Layout (5.5 mm Screen-to-Screen)
Onboard SoC Platform Samsung Smart Signage Platform (SSSP) Gen 1
Processor & Memory Cortex-A9 1GHz Dual-Core CPU | 1GB DDR3 RAM | 8GB FDM Storage
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x VGA (D-Sub), Component/Composite
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining)
Data & Control Ports 2x USB 2.0, RS232C In/Out (Stereo Jack), RJ45 LAN In, Audio In/Out
Built-in Audio Integrated 20W System (Dual 10W Internal Speakers)
Color Calibration Factory Pre-Calibrated White Balance | Advanced Color Management (ACM)
Mechanical Dimensions 1221.8 x 693.0 x 29.9 mm | VESA Mount: 400 x 400 mm | Weight: ~15.4 kg

Deliver a premium, architectural-grade visual canvas with the ultra-slim Samsung UEC Series 55" Video Wall Display (LH55UECPLGC/XY). Specifically engineered for retail boutiques, corporate galleries, and premium boardrooms where deep, heavy monitors are a design liability, this display redefines space efficiency with a cabinet depth of just 29.9mm (1.18 inches). This ultra-low profile allows multi-screen installations to sit almost flush against wall surfaces, seamlessly blending with elite interior design themes while naturally conforming to strict international public safety and ADA clearance regulations across Dubai, Riyadh, and Doha.

The display is powered by an edge-lit LED matrix that outputs 500 nits of brightness, supported by a native 5000:1 static contrast ratio that ensures deep black levels, vibrant colors, and text readability. The UEC Series streamlines digital signage deployments via the embedded Samsung Smart Signage Platform (SSSP). Driven by an integrated Cortex-A9 dual-core processor, onboard DDR3 memory, and native MagicInfo VideoWall software layers, this system allows businesses to schedule and play synchronized multi-screen media configurations up to a 4x4 array directly from USB or local storage, eliminating the cost of third-party external media players.

For enterprise scale-outs spanning Africa and the CIS region, the monitor supports uncompressed 4K matrix scaling through its hardware-driven DisplayPort 1.2 loop-through digital connections. This architecture lets installation crews daisy-chain high-resolution source signals across video walls up to a 10x10 grid layout without structural frame dropping. To safeguard long-term performance under non-stop usage conditions, the chassis incorporates specialized commercial defense sensors, including integrated temperature probes and an advanced Lamp Error Detection warning loop. TrianzeTech manages the project coordination, bulk packing, and verified global shipping for this high-tier Samsung display asset.

Technical Parameter Specification / Feature Details
Model / MPN UE55C (LH55UECPLGC/XY / LH55UECPLGC/EN)
Display Size & Type 55-inch 240Hz Edge-Lit LED Commercial LCD Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Ultra-Slim Cabinet Depth 29.9 mm (1.18 inches) for flush architectural mounting
Panel Brightness 500 nits (Typical) for premium indoor clarity
Contrast Ratio 5000:1 (Static) | 100,000:1 (Dynamic in AV Mode)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Uniformity
Response Time 4 ms (Gray-to-Gray)
Bezel Width Profile Narrow Bezel Layout (5.5 mm Screen-to-Screen)
Onboard SoC Platform Samsung Smart Signage Platform (SSSP) Gen 1
Processor & Memory Cortex-A9 1GHz Dual-Core CPU | 1GB DDR3 RAM | 8GB FDM Storage
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI, 1x DVI-D, 1x VGA (D-Sub), Component/Composite
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining)
Data & Control Ports 2x USB 2.0, RS232C In/Out (Stereo Jack), RJ45 LAN In, Audio In/Out
Built-in Audio Integrated 20W System (Dual 10W Internal Speakers)
Color Calibration Factory Pre-Calibrated White Balance | Advanced Color Management (ACM)
Mechanical Dimensions 1221.8 x 693.0 x 29.9 mm | VESA Mount: 400 x 400 mm | Weight: ~15.4 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard direct-lit commercial displays feature thick housings that can protrude up to 100mm from a wall surface, necessitating expensive recess construction to pass local building safety inspections. The LH55UECPLGC/XY is engineered with an advanced edge-lit backlight array that reduces the entire cabinet depth profile to just 29.9mm. When paired with slim commercial mounts in corporate paths across Dubai and Riyadh, the video wall remains thin and flush against the surface, saving floor footprint.
Traditional video wall configurations require a separate external media player or dedicated PC attached to the rear of every single screen, which multiplies equipment costs and introduces points of failure. The UEC Series display integrates the first-generation Samsung Smart Signage Platform (SSSP). This system features an onboard Cortex-A9 dual-core processor and internal flash storage that decodes high-definition media fields natively, letting IT administrators run standalone loops up to a 4x4 array with zero external computer hardware.
Yes. The LH55UECPLGC/XY is built with advanced DisplayPort 1.2 input and digital loop-out connections. When configuring large multi-panel arrays in Central Asia or North Africa, integration teams can pipe an uncompressed video signal into the initial monitor and loop it down the display line sequentially. This digital daisy-chain handles expansive multi-screen scaling up to a 10x10 video wall layout without signal drop-off, removing the need for external distribution amplifiers or hardware splitters.
Many standard high-speed video wall panels rely on IPS variants that offer a limited 1000:1 to 1200:1 native contrast boundary, which can make dark visual tones appear muddy or gray under bright overhead office track lighting. The UE55C utilizes an advanced commercial alignment layer that achieves a 5000:1 static contrast ratio. This ensures deeper black levels and excellent color separation, which is crucial for showing high-contrast branding graphics and intricate corporate data sets.
When uncalibrated commercial displays are mounted side-by-side, tiny variances in white balance and color temperatures can create an uneven "checkerboard" appearance that distracts viewers. Each LH55UECPLGC/XY undergoes multi-step factory color calibration before leaving the facility, matching white balance thresholds and color differences right out of the shipping container. If custom environments in Almaty or Doha require specialized tweaks, users can utilize Samsung Advanced Color Management (ACM) software to easily adjust parameters across the local network.
