Samsung UHF5 Series 46" UH46F5 Slim Depth High Brightness Commercial LCD Video Wall Display

Skip to product information
1 of 6

Samsung UHF5 Series 46" UH46F5 Slim Depth High Brightness Commercial LCD Video Wall Display

Samsung UHF5 Series 46" UH46F5 Slim Depth High Brightness Commercial LCD Video Wall Display

Ultra-Slim 47.9mm Cabinet Depth: Reduced-thickness profile cuts panel depth significantly for low-clearance compliance on corporate partitions.

High-Output 700-Nit Brightness: Generates bright visual elements that remain sharp under strong overhead light fields.

Integrated ACM Calibration Chipset: Dedicated onboard hardware handles uniform color matching and white balance settings natively.

DisplayPort 1.2 Multi-Screen Loop-Out: Routes native high-definition inputs across display grids without requiring third-party matrix splitters.

24/7 Heavy-Duty Industrial Build: Engineered with reinforced mura-free panels that shield screens against darkening or color fading.

Lightweight 13.2 kg Design Frame: Simplified structural build drastically speeds up assembly and disassembly workflows.

UHD Video Wall Synchronization: Integrates cleanly with external Signage Player Boxes for fast, multi-source content processing.

Samsung
Brand : Samsung
Model : UH46F5 / LH46UHFCLBB/UE

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Wall Bracket - VSVW02-46T

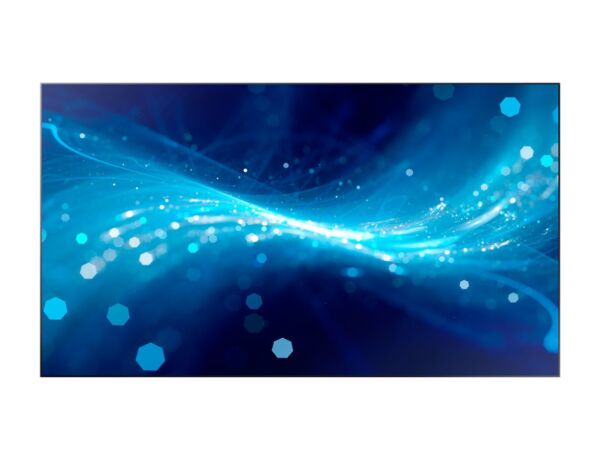

Samsung UHF5 Series 46 inch LH46UHFCLBB/UE slim depth 47.9mm direct lit LED video wall display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN UH46F5 (LH46UHFCLBB/UE / LH46UHFCLBB/GO)
Display Size & Type 46-inch Direct-Lit LED (D-LED DID) Industrial Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio

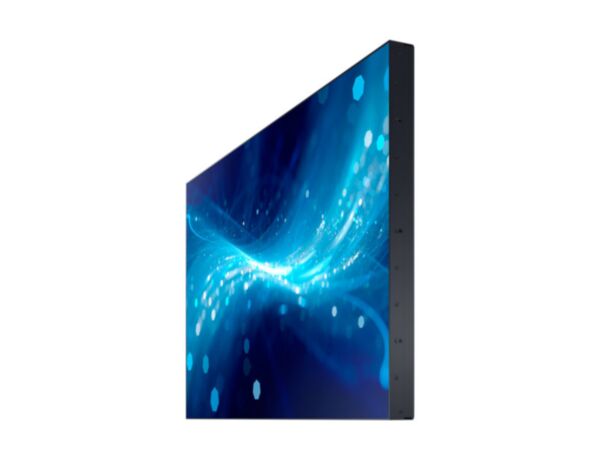

Ultra-Slim Cabinet Depth 47.9 mm (1.89 inches) for lightweight, low-profile safety
Panel Brightness 700 nits (Typical) for high ambient-light punching power
Contrast Ratio 4000:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Structural Viewing Geometry
Response Time 8 ms (Gray-to-Gray)
Bezel Width Profile Super-Narrow Bezel (3.4 mm Top/Left, 2.0 mm Bottom/Right | 5.4 mm B2B)
Glass Haze / Non-Glare 11% Light-Diffusing Haze Treatment against basic glare blooms
Media Player Compatibility External Signage Player Box (Tizen-backed) / Samsung SBB Series
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI 2.0 (HDCP 2.2), 1x DVI-D, 1x VGA (D-Sub)
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining)

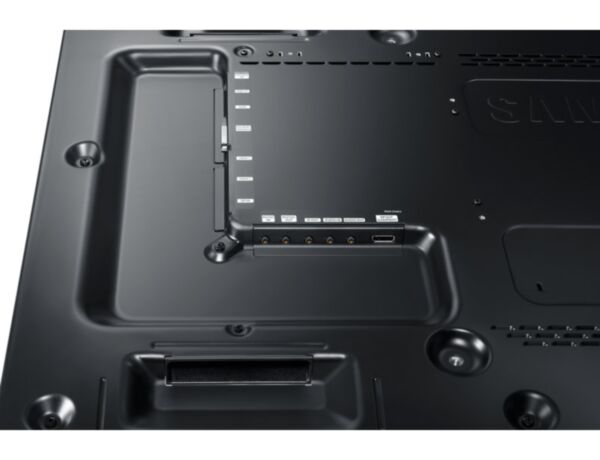

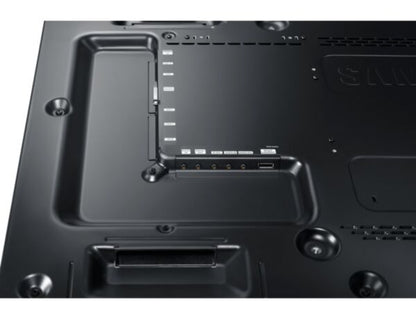

Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN In, 1x USB 2.0 (Firmware Only)
Color Calibration Advanced Color Management (ACM) Chipset | Factory Tuned Uniformity
Mechanical Dimensions 1023.8 x 578.4 x 47.9 mm | VESA Mount: 400 x 400 mm | Weight: ~13.2 kg

Streamline your structural installation logistics without sacrificing visual punch with the Samsung UHF5 Series 46" Video Wall Display (LH46UHFCLBB/UE). Specifically built for fast-moving rental systems, broadcast configurations, and corporate partitions where extra monitor thickness creates an engineering hazard, this direct-lit LED screen features a cabinet depth of only 47.9mm (1.89 inches). This shallow framework makes transport simple and ensures that when fixed to standard hardware, the entire multi-panel display wall naturally aligns with international safety regulations and ADA wall-clearance requirements across Dubai, Riyadh, and Doha.

The panel delivers excellent data visibility by firing a strong 700 nits of continuous brightness, working alongside a static 4000:1 contrast ratio to block visual fading caused by sharp overhead lighting tracks. To facilitate clean multi-panel expansion across corporate environments in Africa and the CIS region, the monitor features integrated DisplayPort 1.2 loop-out digital channels. This allow integration teams to daisy-chain high-resolution source signals across vast matrix setups up to a 10x10 configuration without introducing external graphic processing servers. Additionally, black, mura-free panels isolate individual LED clusters to stop localized light leakage or edge yellowing under heavy usage.

Color continuity across neighboring screens is managed via an integrated, hardware-level Advanced Color Management (ACM) Chipset. Every panel leaves the assembly floor after a precise factory tuning pass, matching white balance settings and brightness targets uniformly. To ensure long-term stability across locations in Almaty or Cairo, the screen uses reinforced, commercial-grade sub-components certified for a non-stop 24/7 industrial duty cycle. TrianzeTech manages the direct procurement pipelines, enterprise-grade freight packaging, and fully tracked global transit routing for this high-tier Samsung visual asset.

Technical Parameter Specification / Feature Details
Model / MPN UH46F5 (LH46UHFCLBB/UE / LH46UHFCLBB/GO)
Display Size & Type 46-inch Direct-Lit LED (D-LED DID) Industrial Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Ultra-Slim Cabinet Depth 47.9 mm (1.89 inches) for lightweight, low-profile safety
Panel Brightness 700 nits (Typical) for high ambient-light punching power
Contrast Ratio 4000:1 (Static) | 10,000:1 (Dynamic MEGA DCR)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Structural Viewing Geometry
Response Time 8 ms (Gray-to-Gray)
Bezel Width Profile Super-Narrow Bezel (3.4 mm Top/Left, 2.0 mm Bottom/Right | 5.4 mm B2B)
Glass Haze / Non-Glare 11% Light-Diffusing Haze Treatment against basic glare blooms
Media Player Compatibility External Signage Player Box (Tizen-backed) / Samsung SBB Series
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 1x DisplayPort 1.2, 2x HDMI 2.0 (HDCP 2.2), 1x DVI-D, 1x VGA (D-Sub)
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN In, 1x USB 2.0 (Firmware Only)
Color Calibration Advanced Color Management (ACM) Chipset | Factory Tuned Uniformity
Mechanical Dimensions 1023.8 x 578.4 x 47.9 mm | VESA Mount: 400 x 400 mm | Weight: ~13.2 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard direct-lit commercial panels carry heavy, deep chassis boxes that extend past 90mm, pushing out too far into emergency pathways or office corridors. The LH46UHFCLBB/UE cuts this footprint down to a slim 47.9mm depth build. When mounted using flat low-profile wall mounts, the completed wall matrix stays well within strict public design guidelines and structural clearances across Dubai and Riyadh, avoiding deep spatial wall carving.
When multiple commercial monitors run side-by-side, minute variances in component batches can create a distracting checkerboard look. The UH46F5 features an integrated Advanced Color Management (ACM) Chipset that uses internal calibration algorithms to adjust factory color values. This hardware layer locks screen parameters to a uniform matrix, preventing tint errors and color drifting over years of continuous project operations.
Security centers and traffic monitoring arrays display static graphical interfaces and map grids for long periods, which can cause backlight non-uniformity and heat spots. The LH46UHFCLBB/UE is manufactured with a specialized black, mura-free industrial panel design. This configuration fortifies the liquid crystal cell structure to prevent clouding artifacts, edge-light leakage, or panel darkening under a constant 24/7 operational cycle.
Yes. Lower-tier digital signage walls that rely on legacy digital connections often require inline amplifiers to avoid signal degradation when expanding the display network. The LH46UHFCLBB/UE comes equipped with DisplayPort 1.2 input and loop-out digital channels. This high-bandwidth interface carries uncompressed video across daisy-chained configurations up to a 10x10 video wall layout (100 displays) while fully supporting 4K UHD resolutions across smaller 2x2 sections.
Heavy display frames demand heavy support brackets, increasing structural costs for pop-up show walls or temporary media backdrops. Weighing just 13.2 kg, the UH46F5 cuts physical load metrics by more than 40 percent compared to older display generations. This optimizes safety during fast mobile setups, cutting structural backing requirements for temporary media backdrops across Almaty, Cairo, and Dubai.
