Samsung VHC-E Series 55" VH55C-E Extreme Narrow Bezel 24/7 Non-Glare Commercial LCD Video Wall Display

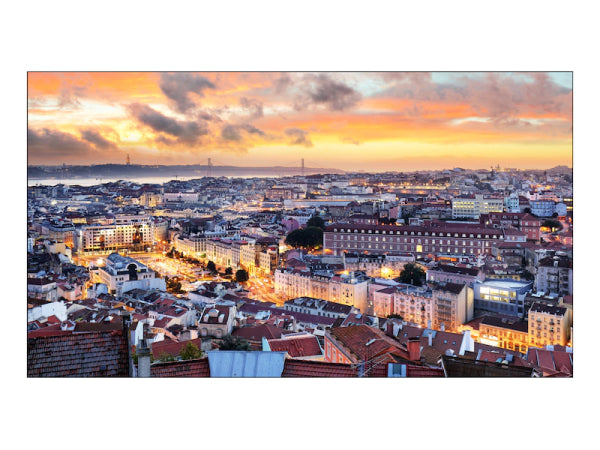

  • Samsung VHC-E Series 55 inch VH55C-E LH55VHCEBGBXUE extreme narrow 1.74mm bezel 700 nits non glare video wall display
  • Close up view of the 1.74mm extreme narrow bezel panel seam line on a Samsung VH55C-E commercial monitor display
1 13

Samsung VHC-E Series 55" VH55C-E Extreme Narrow Bezel 24/7 Non-Glare Commercial LCD Video Wall Display

Samsung VHC-E Series 55" VH55C-E Extreme Narrow Bezel 24/7 Non-Glare Commercial LCD Video Wall Display

1.74mm Extreme-Narrow Bezel Seam: Blends individual panels into a cohesive digital matrix canvas to minimize visual border gaps.

700-Nit High-Output Backlight: High-luminance IPS panel pierces through intense indoor lighting and sunlit commercial spaces.

28% Haze Non-Glare Glass Treatment: Scatters reflections from overhead light tracks while preserving rich color accuracy from extreme viewing angles.

Onboard SSSP 6.0 & MagicINFO S6 Player: Embedded quad-core SoC processes and schedules media assets natively without auxiliary computers.

IP5X Dust-Proof Structural Chassis: Sealed internal housing blocks dust accumulation to guarantee reliable 24/7 continuous duty cycles.

DisplayPort 1.2 4K UHD Daisy-Chaining: Sequences native high-definition inputs across display walls up to a 10x10 layout with no external processors.

Mobile Color Expert Pro Access: Enables on-site engineers to run rapid matrix color-balancing sweeps using a standard smartphone camera interface.

Samsung
Brand : Samsung
Model : VH55C-E / LH55VHCEBGBXUE/ LH55VHCEBGBXEN

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Wall Bracket - VSVW13-46T

Samsung VHC-E Series 55 inch VH55C-E LH55VHCEBGBXUE extreme narrow 1.74mm bezel 700 nits non glare video wall display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN VH55C-E (LH55VHCEBGBXUE / LH55VHCEBGBXEN)
Display Size & Type 55-inch Commercial Direct-Lit LED / Advanced IPS Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for elite high ambient-light performance
Contrast Ratio 1200:1 (Static) | 500,000:1 (Dynamic Contrast Ratio)
Bezel Width Profile Extreme-Narrow Bezel (1.15 mm Top/Left, 0.59 mm Bottom/Right | 1.74 mm B2B)
Glass Haze / Non-Glare 28% Premium Haze Treatment for specialized reflection deflection
Onboard SoC Platform Samsung Smart Signage Platform Gen 6 (SSSP 6.0) | MagicINFO S6
Environmental Protection IP5X Dust-Proof Certified Durability Rating
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation

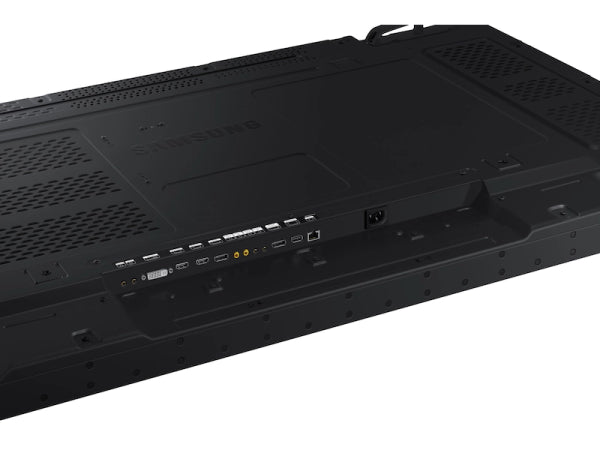

Video Input Interfaces 2x HDMI 2.0, 1x DisplayPort 1.2, 1x DVI-D, 1x USB 2.0 (Media Input)
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 10x10)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC), IR In/Out
Color Calibration Factory Pre-Calibrated | Color Expert Pro PC & Color Expert Pro Mobile App
Mechanical Dimensions 1212.2 x 683.0 x 70.4 mm | VESA Mount: 600 x 400 mm | Weight: ~19.2 kg

Deliver striking, high-impact commercial visuals with the ultra-reliable Samsung VHC-E Series 55" Video Wall Display (VH55C-E). Specifically engineered to meet the demanding requirements of control centers, luxury automotive showrooms, and television broadcast backdrops, this premium display features an extreme-narrow 1.74mm bezel-to-bezel (B2B) border configuration. This minimized seam width ensures that complex geographical mapping data, close-up promotional feeds, and multi-window monitoring spreadsheets run flawlessly across your screen matrix without geometric interruption or image alignment shifting. Operating at a powerful 700 nits of high-output brightness, the VH55C-E prevents visual fading or screen washout even when installed in glass-fronted lobbies or areas under intense overhead spotlight tracks in Dubai, Riyadh, and Doha.

The hardware architecture pairs this elite luminance with an advanced 28% premium haze non-glare surface treatment. This layer scatters incoming reflection blooms uniformly across the display face, allowing audiences to view crisp imagery from wide angles without encountering distracting mirror reflections. Internally, the display features the powerful Samsung Smart Signage Platform Gen 6 (SSSP 6.0) running on an embedded quad-core System-on-Chip (SoC) with an integrated MagicINFO S6 media player. This allows system administrators to deploy and program high-definition marketing campaigns directly over the local network without connecting external media players or server racks.

For enterprise screen scale-outs expanding across Africa and the CIS region, the monitor features integrated, hardware-level DisplayPort 1.2 daisy-chain channels. This framework allows installation teams to pass uncompressed native 4K UHD content across video wall arrays up to a 10x10 configuration without frame drop-off or external splitter hardware. Built with a rugged, IP5X certified dust-proof housing, the display is protected against fine particulate accumulation to survive non-stop 24/7 continuous operations. TrianzeTech handles your high-tier professional AV rollouts with verified project fulfillment, customized industrial pallet safety packing, and end-to-end tracked global shipping.

Technical Parameter Specification / Feature Details
Model / MPN VH55C-E (LH55VHCEBGBXUE / LH55VHCEBGBXEN)
Display Size & Type 55-inch Commercial Direct-Lit LED / Advanced IPS Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for elite high ambient-light performance
Contrast Ratio 1200:1 (Static) | 500,000:1 (Dynamic Contrast Ratio)
Bezel Width Profile Extreme-Narrow Bezel (1.15 mm Top/Left, 0.59 mm Bottom/Right | 1.74 mm B2B)
Glass Haze / Non-Glare 28% Premium Haze Treatment for specialized reflection deflection
Onboard SoC Platform Samsung Smart Signage Platform Gen 6 (SSSP 6.0) | MagicINFO S6
Environmental Protection IP5X Dust-Proof Certified Durability Rating
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 2x HDMI 2.0, 1x DisplayPort 1.2, 1x DVI-D, 1x USB 2.0 (Media Input)
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 10x10)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC), IR In/Out
Color Calibration Factory Pre-Calibrated | Color Expert Pro PC & Color Expert Pro Mobile App
Mechanical Dimensions 1212.2 x 683.0 x 70.4 mm | VESA Mount: 600 x 400 mm | Weight: ~19.2 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
In mission-critical monitoring networks, standard wide frames create visual fragmentation that can break up lines, numbers, and map fields at screen seams. The LH55VHCEBGBXUE addresses this layout challenge with an extreme-narrow border measuring 1.15mm on the top/left and 0.59mm on the bottom/right perimeters. When mounted side-by-side, they form a tight 1.74mm bezel-to-bezel (B2B) intersection, allowing dense telemetry blocks and moving surveillance maps to flow naturally across the display matrix in Dubai and Riyadh.
Television broadcast studios and premium vehicle showrooms utilize high-power overhead lighting structures that can cause blinding white reflections on standard glossy display panels. The VH55C-E implements an advanced 28% non-glare glass haze layer that diffuses direct lighting paths uniformly across the surface. This prevents distracting glare blooms from entering camera lenses or reflecting onto viewers, maintaining a static contrast field from any off-axis position.
Running separate standalone media players behind each screen panel increases procurement costs and introduces extra cables that act as physical points of failure. The VH55C-E bypasses this by embedding the sixth-generation Samsung Smart Signage Platform (SSSP 6.0). Driven by an internal quad-core system-on-chip and an integrated MagicINFO S6 player engine, the screen decodes and runs sophisticated digital signage playlists natively, streamlining multi-site operations across Africa and the CIS region.
Yes. To maintain uncompressed video signal strength across sprawling digital backdrops, lower-tier systems require expensive external matrix graphic servers or inline signal amplifiers. The LH55VHCEBGBXUE includes built-in DisplayPort 1.2 input and digital loop-out connections. This high-bandwidth interface carries uncompressed video across daisy-chained configurations up to a 10x10 video wall layout (100 displays) while fully supporting 4K UHD resolutions across smaller 2x2 sections.
Continuous 24/7 video wall deployments inside transportation terminals or corporate lobbies generate massive static fields that attract airborne particulate matter and micro-debris through cooling channels. Over time, dust accumulation can build up inside standard display panels, causing localized overheating, backlight dimming, or yellowing edges. The VH55C-E features an IP5X dustproof certified chassis that insulates internal optical systems, protecting panel life in heavy-use zones throughout Almaty and Cairo.
