Samsung VHC-R Series 55" VH55C-R Razor Narrow Bezel 24/7 Smart Signage Commercial LCD Video Wall Display

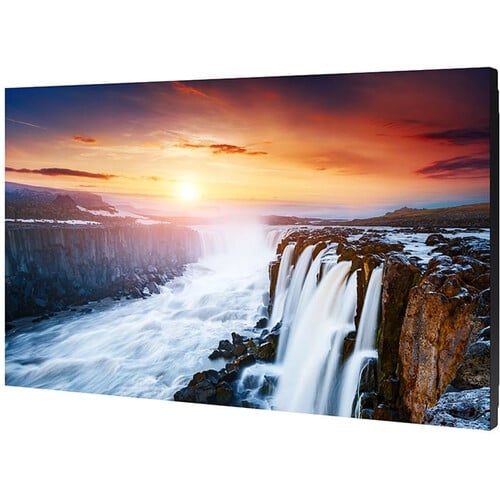

  • Samsung VHC-R Series 55 inch VH55C-R LH55VHCRBGBXUE razor narrow 0.88mm bezel 700 nits video wall display
  • Angled side perspective showing the thin 69.9mm chassis box of a Samsung VH55C-R smart signage panel
1 13

Samsung VHC-R Series 55" VH55C-R Razor Narrow Bezel 24/7 Smart Signage Commercial LCD Video Wall Display

Samsung VHC-R Series 55" VH55C-R Razor Narrow Bezel 24/7 Smart Signage Commercial LCD Video Wall Display

0.88mm Razor Bezel-to-Bezel Gap: Ultra-thin frame boundaries eliminate visual line distortion to produce a near-seamless multi-screen grid.

Elite 700-Nit Luminance Panel: Pushes punchy visual depth that cuts cleanly through harsh sunlight or high-intensity ambient office fixtures.

Ultra-Slim <70mm Housing Depth: Reduced structural thickness saves premium floor layout space and speeds up flush alignment tuning.

Onboard SSSP 6.0 & MagicINFO S6: Integrated system-on-chip network decodes and runs complex digital signage schedules natively without external computers.

IP5X Dust-Proof Certified Chassis: Rugged internal engineering blocks dust ingress to extend component life under 24/7 heavy duty cycles.

Color Expert Pro Mobile Calibration: Facilitates rapid white balance and grid calibration for up to a 3x3 layout using a standard mobile phone camera.

Advanced UHD Daisy-Chain Scaling: Streams native uncompressed 4K imagery across 100 displays simultaneously via onboard DisplayPort 1.2 channels.

Samsung
Brand : Samsung
Model : VH55C-R / LH55VHCRBGBXUE

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Samsung VHC-R Series 55 inch VH55C-R LH55VHCRBGBXUE razor narrow 0.88mm bezel 700 nits video wall display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN VH55C-R (LH55VHCRBGBXUE / LH55VHCRBGBXEN)
Display Size & Type 55-inch Commercial Direct-Lit LED / Advanced IPS Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for elite high ambient-light performance
Contrast Ratio 1100:1 (Static) | 140,000:1 (Dynamic MEGA DCR)
Ultra-Slim Profile Depth 69.9 mm (2.75 inches) structural chassis for flush mounting
Bezel Width Profile Razor-Narrow Bezel (0.44 mm Even | 0.88 mm Bezel-to-Bezel Gap)
Glass Haze / Non-Glare 28% Premium High-Haze Treatment for optical glare deflection
Onboard SoC Platform Samsung Smart Signage Platform Gen 6 (SSSP 6.0) | MagicINFO S6
Environmental Protection IP5X Dust-Proof Certified Durability Rating
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 2x HDMI 2.0, 1x DisplayPort 1.2, 1x DVI-D, 1x USB 2.0 (Media Input)
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 10x10)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC), IR In/Out
Color Calibration Factory Pre-Calibrated | Color Expert Pro PC & Color Expert Pro Mobile App
Mechanical Dimensions 1211.0 x 681.7 x 69.9 mm | VESA Mount: 600 x 400 mm | Weight: ~16.8 kg

Deliver an unfragmented visual spectacle across your enterprise matrix with the class-leading Samsung VHC-R Series 55" Video Wall Display (VH55C-R). Specifically developed to eliminate the heavy layout frame gridlines seen in older display panels, this screen features a razor-narrow 0.44mm even bezel, bringing the total combined bezel-to-bezel (B2B) gap to a nearly invisible 0.88mm. This allows engineering data, corporate graphics, or high-definition marketing reels to flow across massive configurations like a single uniform fabric canvas. Firing 700 nits of high brightness, the display cuts through direct environmental lighting washout to maintain readability across corporate workspaces and control rooms in Dubai, Riyadh, and Doha.

The mechanical engineering shifts standard video wall footprints by featuring an ultra-slim cabinet profile measuring under 70mm deep (69.9mm). This low profile saves spatial square footage and simplifies adherence to strict public accessibility safety clearances without carving deep wall recesses. Driven internally by the advanced Samsung Smart Signage Platform Gen 6 (SSSP 6.0) running an embedded MagicINFO S6 player engine, the display processes and sequences high-definition media fields natively, avoiding the need to acquire auxiliary player units. For grand layout expansions across Africa and the CIS region, integrated DisplayPort 1.2 and HDMI 2.0 loop-through lines support uncompressed 4K UHD distribution across daisy-chained multi-screen matrices up to a massive 10x10 grid layout without frame delay.

To ensure performance under continuous operational workloads, the display is backed by an IP5X dust-proof structural certification, preventing particulate buildup within the internal optics. Color continuity is safeguarded through precision factory multi-step tuning, matching white balance thresholds and luminance profiles right out of the box. Technical directors can also execute on-the-fly network calibration via Samsung Color Expert Pro Mobile, configuring layout color zones using a standard smartphone camera. TrianzeTech backs enterprise project procurement with verified bulk shipping, industrial pallet safety packaging, and tracked logistics routing.

Technical Parameter Specification / Feature Details
Model / MPN VH55C-R (LH55VHCRBGBXUE / LH55VHCRBGBXEN)
Display Size & Type 55-inch Commercial Direct-Lit LED / Advanced IPS Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 700 nits (Typical) for elite high ambient-light performance
Contrast Ratio 1100:1 (Static) | 140,000:1 (Dynamic MEGA DCR)
Ultra-Slim Profile Depth 69.9 mm (2.75 inches) structural chassis for flush mounting
Bezel Width Profile Razor-Narrow Bezel (0.44 mm Even | 0.88 mm Bezel-to-Bezel Gap)
Glass Haze / Non-Glare 28% Premium High-Haze Treatment for optical glare deflection
Onboard SoC Platform Samsung Smart Signage Platform Gen 6 (SSSP 6.0) | MagicINFO S6
Environmental Protection IP5X Dust-Proof Certified Durability Rating
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 2x HDMI 2.0, 1x DisplayPort 1.2, 1x DVI-D, 1x USB 2.0 (Media Input)
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 10x10)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN Multi-Display Control (MDC), IR In/Out
Color Calibration Factory Pre-Calibrated | Color Expert Pro PC & Color Expert Pro Mobile App
Mechanical Dimensions 1211.0 x 681.7 x 69.9 mm | VESA Mount: 600 x 400 mm | Weight: ~16.8 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Standard commercial panels carry multi-millimeter frame borders that interrupt graphs, map strings, and fine metrics, distorting visuals at the panel intersections. The LH55VHCRBGBXUE breaks this barrier by engineered a razor-narrow housing measuring 0.44mm even width on all four perimeters. When tiled side-by-side, the resulting 0.88mm bezel-to-bezel (B2B) gap renders fine text, numerical metrics, and graphic paths smoothly across the layout interface, making it perfect for data rooms in Dubai and Riyadh.
Video wall installations in high-traffic commercial spaces or public hubs generate massive ambient air movement, pulling lint and dust into the rear cooling vents of standard panels. This particulate buildup can settle on internal light arrays, leading to overheating or dark spots. The VH55C-R includes a verified IP5X dust-proof rating, insulating critical operational sub-components and circuit tracts to guarantee continuous 24/7 durability with reduced maintenance overhead.
Deep commercial display panels that protrude past 100mm require deep structural recess carving to avoid breaking strict international fire and safety walkway compliance codes. The sleek structural layout of the VH55C-R restricts total panel depth to a thin 69.9mm. When matched with low-profile video wall bracket hardware, the entire digital layout hangs flush to the partition face, preserving walking clearance across transport hubs in Africa and the CIS region.
Calibrating a massive display wall historically required complex photometer hardware, dedicated computer links, and hours of tuning. The VH55C-R overcomes this via compatibility with the Samsung Color Expert Pro Mobile platform. Using the camera sensor on a compatible smartphone, installers can run automated white balance and chromaticity sweeps across layout setups up to a 3x3 matrix simultaneously, balancing color saturation within minutes across sites in Almaty or Cairo.
Yes. Equipped with the sixth-generation Samsung Smart Signage Platform (SSSP 6.0) and an embedded quad-core SoC layer running MagicINFO S6, the display possesses standalone media processing power. Via native DisplayPort 1.2 loop-out digital channels, the system accepts a master high-definition feed and loops uncompressed UHD layouts across daisy-chained configurations up to a 10x10 array (100 panels) without requiring external matrix graphic cards or distribution amplifier hubs.
