Samsung VM46B-U 46" Full HD VMB-U Series Ultra-Narrow Bezel Commercial LCD Video Wall Display

Samsung VM46B-U 46" Full HD VMB-U Series Ultra-Narrow Bezel Commercial LCD Video Wall Display

Space-Optimized 46-Inch Form Factor: Ideal for compact security desks, structural pillars, and slim commercial partitions.

3.5mm Ultra-Narrow Bezel Gap: Shrinks border profiles to maintain uninterrupted visual flow across sprawling matrix grids.

4K UHD Multi-Screen Daisy-Chaining: Utilizes integrated DisplayPort 1.2 loop-out to sync massive multi-screen walls without external processor blocks.

24/7 Commercial Duty Cycle: Industrial internal engineering built for relentless, round-the-clock uptime in control centers.

500-Nit Panel with 25% Haze Treatment: Disperses direct mirror reflections from overhead lights while protecting rich contrast fields.

Precision Factory Color Calibration: Every unit arrives pre-calibrated to match brightness and hue right out of the shipping crate.

Mobile Color Expert Pro Access: Enables rapid network-wide balance alignment using a smartphone camera over local network links.

Samsung
Brand : Samsung
Model : VM46B-U

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Bracket - VSVW02-46T

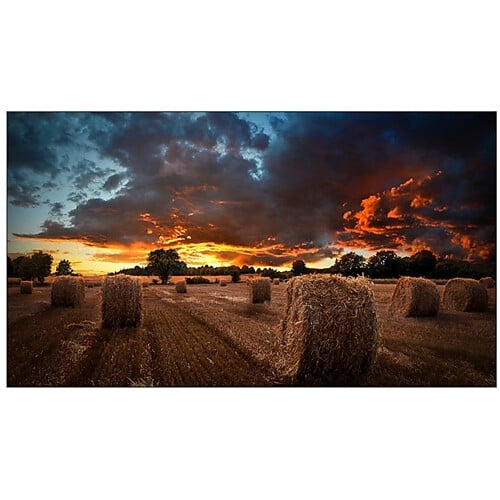

Samsung 46 inch VM46B-U space optimized 3.5mm ultra narrow bezel commercial video wall panel
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN VM46B-U (LH46VMBUBGBXGO / LH46VMBUBGBXUE)
Display Size & Type 46-inch IPS-Type Direct-Lit LED Commercial Panel
Native Resolution Full HD (1920 x 1080) | Supports 4K UHD Video Wall Arrays
Bezel-to-Bezel Width 3.5 mm Ultra-Narrow Bezel (2.25 mm Top/Left, 1.25 mm Bottom/Right)
Panel Brightness 500 nits (Typical) for clear visibility under continuous indoor lighting
Contrast Ratio 1200:1 (Static) | 500,000:1 (Dynamic)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing
Glass Haze / Non-Glare 25% Haze Treatment for reflection prevention
Operating System Embedded MagicINFO Player S10 / Proprietary Signage Engine
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Mission-Critical Operation
Dust Protection Rating IP5x Certified Dust-Resistant Housing Shell
Video Input Interfaces 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Video Wall Daisy-Chaining)
Data & Control Ports 1x USB 2.0, RS232C In/Out (Stereo Jack), RJ45 LAN In/Out
Color Calibration Factory Pre-Calibrated (ACM) | Mobile App Calibration Support
Mechanical Dimensions 1022.1 x 576.6 x 70.4 mm | VESA Mount: 600 x 400 mm | Weight: ~15.7 kg

Achieve high-impact visual performance even in spatially constrained environments with the Samsung VMB-U Series 46" Video Wall Display – VM46B-U. Engineered specifically for high-stress, always-on corporate, transit, and security environments where a standard 55-inch display is too large, this professional 46" screen minimizes visual disruption through an ultra-narrow 3.5mm bezel-to-bezel design. The VM46B-U eliminates the need for expensive external graphic matrix splitters by leveraging an integrated DisplayPort 1.2 loop-through mechanism. This allows system integrators to scale multi-screen arrays up to a 5x5 configuration while preserving native 4K Ultra HD resolution across the entire video wall layout.

The core visual panel uses a high-grade IPS direct-lit LED matrix that pumps out 500 nits of brightness, counteracting harsh indoor ambient lighting with a specialized 25% haze anti-glare surface treatment. Designed for control rooms, luxury retail boutiques, bank branches, and broadcast studios across Dubai, Riyadh, and Almaty, the display maintains absolute color accuracy and image structural alignment across off-angle perspectives. Outfitted with an advanced non-glare panel design and an industrial-grade internal cooling chassis, the VM46B-U is built for non-stop, 24/7 mission-critical duty cycles without screen burn-in or color degradation.

For multi-site corporate networks spanning Africa and the CIS region, uniform calibration is the baseline for professional presentation. Each VM46B-U undergoes meticulous multi-step factory calibration to align brightness and chromaticity right out of the box. For localized micro-adjustments post-installation, IT teams can utilize Samsung's Color Expert Pro Mobile software, executing color balancing across large matrices via a mobile phone camera over the local network. TrianzeTech backs this elite display infrastructure with secure international logistics routing and factory-supported enterprise warranties.

Technical Parameter Specification / Feature Details
Model / MPN VM46B-U (LH46VMBUBGBXGO / LH46VMBUBGBXUE)
Display Size & Type 46-inch IPS-Type Direct-Lit LED Commercial Panel
Native Resolution Full HD (1920 x 1080) | Supports 4K UHD Video Wall Arrays
Bezel-to-Bezel Width 3.5 mm Ultra-Narrow Bezel (2.25 mm Top/Left, 1.25 mm Bottom/Right)
Panel Brightness 500 nits (Typical) for clear visibility under continuous indoor lighting
Contrast Ratio 1200:1 (Static) | 500,000:1 (Dynamic)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Off-Axis Structural Viewing
Glass Haze / Non-Glare 25% Haze Treatment for reflection prevention
Operating System Embedded MagicINFO Player S10 / Proprietary Signage Engine
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Mission-Critical Operation
Dust Protection Rating IP5x Certified Dust-Resistant Housing Shell
Video Input Interfaces 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Video Wall Daisy-Chaining)
Data & Control Ports 1x USB 2.0, RS232C In/Out (Stereo Jack), RJ45 LAN In/Out
Color Calibration Factory Pre-Calibrated (ACM) | Mobile App Calibration Support
Mechanical Dimensions 1022.1 x 576.6 x 70.4 mm | VESA Mount: 600 x 400 mm | Weight: ~15.7 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The 46-inch physical dimensions are crucial for facilities in Dubai and Riyadh that must mount multi-panel video arrays onto restricted wall layouts, narrow structural support pillars, or low-profile security consoles. It lets system integrators scale functional 2x2 or 3x3 dashboard setups inside spatial footprints where 55-inch models would physically overlap trim lines or block sightlines, ensuring total design flexibility.
The VM46B-U features an embedded, hardware-level DisplayPort 1.2 loop-through array. Rather than running individual long-distance signal cables from an expensive central media matrix to every screen, installers run a single 4K input feed to panel one and daisy-chain the signal from screen to screen up to a 5x5 arrangement. This preserves uncompressed 4K graphics and saves thousands on external splitters and signal extenders.
Industrial sites, transit hubs, and commercial zones across North Africa and the CIS region often battle fine airborne particulate matter. The VM46B-U is built with an IP5x certified dust-proof housing that seals off the direct-lit LED backlights and circuit pathways. This design prevents internal dust build-up from creating localized hot spots, thermal tracking failures, or panel darkening over years of heavy usage.
Standard retail display panels are typically certified for 16 hours of daily operation, running a high risk of developing pixel ghosting, edge-backlight yellowing, or power supply burnout if left on permanently. The VM46B-U features industrial-grade capacitors and a heat-releasing chassis engineered for non-stop 24/7 mission-critical operations. This layout ensures flight information systems (FIDS) or train scheduling walls in Cairo or Tashkent run uninterrupted without premature failure.
Corporate office environments and transport corridors use high-output LED fixtures and large windows that produce intense reflections on glassy surfaces. The VM46B-U panel carries an advanced 25% non-glare haze surface layer that scatters incoming glare patterns uniformly across the display face. This prevents harsh mirror reflection blocks while maintaining crisp visibility for critical text data and fine metrics from extreme off-axis viewing angles.
