Samsung VMB-E Series 55" VM55B-E Extreme-Narrow Bezel 24/7 Professional Commercial LCD Video Wall Display

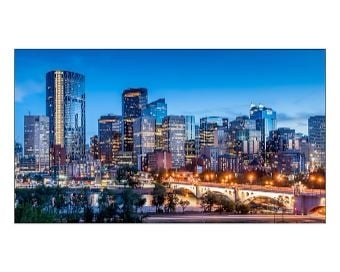

  • Samsung VMB-E Series 55 inch VM55B-E LH55VMBEBGBXGO extreme narrow 1.74mm bezel 500 nits video wall display

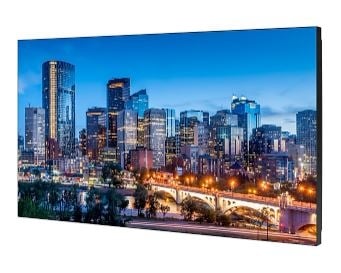

  • Close up view showing the incredibly thin 1.74mm extreme narrow bezel panel intersection on a Samsung VM55B-E monitor
1 13

Samsung VMB-E Series 55" VM55B-E Extreme-Narrow Bezel 24/7 Professional Commercial LCD Video Wall Display

Samsung VMB-E Series 55" VM55B-E Extreme-Narrow Bezel 24/7 Professional Commercial LCD Video Wall Display

1.74mm Extreme-Narrow Bezel Seam: Blends individual display modules into a near-seamless digital canvas to eliminate visual line fragmentation.

Balanced 500-Nit Indoor Brightness: Delivers a reliable, energy-efficient luminance level ideal for corporate offices and control rooms.

Ultra-Slim 69.9mm Cabinet Profile: Low-thickness structural chassis saves space and enables flush, low-profile wall mount alignments.

25% Haze Anti-Glare Glass Treatment: Uniformly disperses reflections from direct ambient lighting to keep text legible from extreme viewing angles.

IP5X Dust-Proof Structural Shielding: Sealed internal housing blocks airborne micro-particles to protect performance over long 24/7 duty cycles.

DisplayPort 1.2 Native 4K Daisy-Chaining: Routes uncompressed high-resolution source signals across multi-screen arrays without external splitters.

Mobile Color Expert Pro Access: Enables integration teams to execute quick color-balancing passes using a standard smartphone camera.

Samsung
Brand : Samsung
Model : VM55B-E (LH55VMBEBGBXGO / LH55VMBEBGBXUE)

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Wall Bracekt - VSV02-46T

Samsung VMB-E Series 55 inch VM55B-E LH55VMBEBGBXGO extreme narrow 1.74mm bezel 500 nits video wall display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN VM55B-E (LH55VMBEBGBXGO / LH55VMBEBGBXUE)
Display Size & Type 55-inch Commercial Direct-Lit LED / Advanced IPS Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 500 nits (Typical) for reliable, energy-efficient indoor clarity
Contrast Ratio 1200:1 (Static) | 500,000:1 (Dynamic Contrast Ratio)
Ultra-Slim Profile Depth 69.9 mm (2.75 inches) structural chassis for flush mounting
Bezel Width Profile Extreme-Narrow Bezel (1.15 mm Top/Left, 0.59 mm Bottom/Right | 1.74 mm B2B)
Glass Haze / Non-Glare 25% Premium Haze Treatment for reflection prevention
Onboard SoC Platform Samsung Smart Signage Platform Gen 10 / Proprietary Signage Engine
Environmental Protection IP5X Dust-Proof Certified Durability Rating
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 5x5)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN In/Out, 1x USB 2.0
Color Calibration Factory Pre-Calibrated | Color Expert Pro Mobile App Support
Mechanical Dimensions 1212.2 x 683.0 x 69.9 mm | VESA Mount: 600 x 400 mm | Weight: ~18.8 kg

Deliver a pristine, unfragmented digital canvas with the dependable Samsung VMB-E Series 55" Video Wall Display (VM55B-E). Meticulously engineered to eliminate thick framing lines from multi-screen arrays, this commercial-grade display offers an extreme-narrow 1.74mm bezel-to-bezel (B2B) border configuration. This ultra-thin frame width guarantees that intricate spreadsheets, financial charts, corporate branding graphics, and high-density map telemetry run seamlessly across your tiled matrix without visual interruption or line clipping. Operating at a balanced 500 nits of continuous brightness, the VM55B-E provides an energy-efficient yet high-impact visual surface perfect for corporate boardrooms, public briefing centers, and reception halls throughout Dubai, Riyadh, and Doha.

The mechanical engineering behind the VM55B-E addresses architectural spatial limits by keeping the entire structural cabinet depth to under 70mm (69.9mm). This remarkably shallow profile saves premium room square footage and ensures that once fixed to flat mounting brackets, the complete display wall complies effortlessly with international public safety accessibility codes and ADA clearance requirements. Outfitted with a 25% premium anti-glare haze surface layer, the display scatters direct reflections from overhead commercial track lights. This layer ensures that viewers standing at steep off-axis angles can easily read content without struggling against harsh mirror blooms.

For sprawling multi-panel integrations spanning across Africa and the CIS region, the monitor features hardware-accelerated DisplayPort 1.2 loop-out digital connectivity. This enables installation teams to route a single high-definition master feed into the initial display and loop an uncompressed native 4K UHD signal down the line sequentially, supporting configurations up to a 5x5 grid layout without requiring external graphic matrix splitters or distribution amplifiers. Built to withstand continuous, round-the-clock workloads, the display features a robust IP5X certified dust-proof housing and a non-stop 24/7 mission-critical duty cycle. TrianzeTech simplifies international B2B AV deployment with secure project logistics, customized industrial pallet packaging, and fully tracked global freight routing.

Technical Parameter Specification / Feature Details
Model / MPN VM55B-E (LH55VMBEBGBXGO / LH55VMBEBGBXUE)
Display Size & Type 55-inch Commercial Direct-Lit LED / Advanced IPS Panel
Native Resolution Full HD (1920 x 1080) | 16:9 Aspect Ratio
Panel Brightness 500 nits (Typical) for reliable, energy-efficient indoor clarity
Contrast Ratio 1200:1 (Static) | 500,000:1 (Dynamic Contrast Ratio)
Ultra-Slim Profile Depth 69.9 mm (2.75 inches) structural chassis for flush mounting
Bezel Width Profile Extreme-Narrow Bezel (1.15 mm Top/Left, 0.59 mm Bottom/Right | 1.74 mm B2B)
Glass Haze / Non-Glare 25% Premium Haze Treatment for reflection prevention
Onboard SoC Platform Samsung Smart Signage Platform Gen 10 / Proprietary Signage Engine
Environmental Protection IP5X Dust-Proof Certified Durability Rating
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Video Input Interfaces 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Matrix Daisy-Chaining up to 5x5)
Data & Control Ports RS232C In/Out (Stereo Jack), RJ45 LAN In/Out, 1x USB 2.0
Color Calibration Factory Pre-Calibrated | Color Expert Pro Mobile App Support
Mechanical Dimensions 1212.2 x 683.0 x 69.9 mm | VESA Mount: 600 x 400 mm | Weight: ~18.8 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Traditional digital signage screens feature thick framing bezels that create large grid lines when tiled together, fracturing text strings and graphical indicators. The LH55VMBEBGBXGO limits this visual distortion with a precision-engineered frame measuring 1.15mm on the top/left and 0.59mm on the bottom/right sides. When aligned side-by-side, they form a tight 1.74mm bezel-to-bezel (B2B) seam, ensuring that fine numbers, telemetry coordinates, and map lines stay perfectly continuous across the video wall in Dubai and Riyadh.
Deep commercial display panels that protrude past 100mm from the wall surface present an engineering liability, often requiring expensive custom wall recessing to meet building codes. The structural engineering of the VM55B-E keeps the entire cabinet profile down to an ultra-thin 69.9mm. When paired with slim commercial hardware, the finished video wall hangs flush against the wall surface, optimizing premium floor square footage and streamlining code compliance in Africa and the CIS region.
Corporate conference rooms and presentation spaces utilize high-output LED overhead grids or window walls that can cast blinding mirror blooms onto glossy screens. The VM55B-E features a premium 25% anti-glare glass haze layer that diffuses incoming ambient light evenly across the screen. This allows team members, spectators, or operators sitting at sharp viewing angles up to 178 degrees to see crystal-clear content fields without combating bright white reflection blocks.
Running a high-stress video wall continuously inside open public atriums or data rooms creates strong static fields that draw in floating dust and airborne micro-particles. Over time, internal buildup can insulate electrical systems, causing localized overheating, panel darkening, or color degradation. The VM55B-E addresses this via an IP5X certified dustproof housing structure that seals off sensitive optical electronics, minimizing maintenance callout fees and ensuring long-term 24/7 durability.
Yes. To distribute high-definition content across multiple screens without dropping frames or signal quality, secondary systems often necessitate expensive external graphic splitters or matrix servers. The LH55VMBEBGBXGO includes hardware-level DisplayPort 1.2 input and digital loop-through channels. This lets system installers pipe a single uncompressed signal into the first panel and daisy-chain it down the line to run an ultra-high-definition layout across configurations up to a 5x5 video wall setup natively, minimizing equipment overhead at project sites in Almaty or Cairo.
