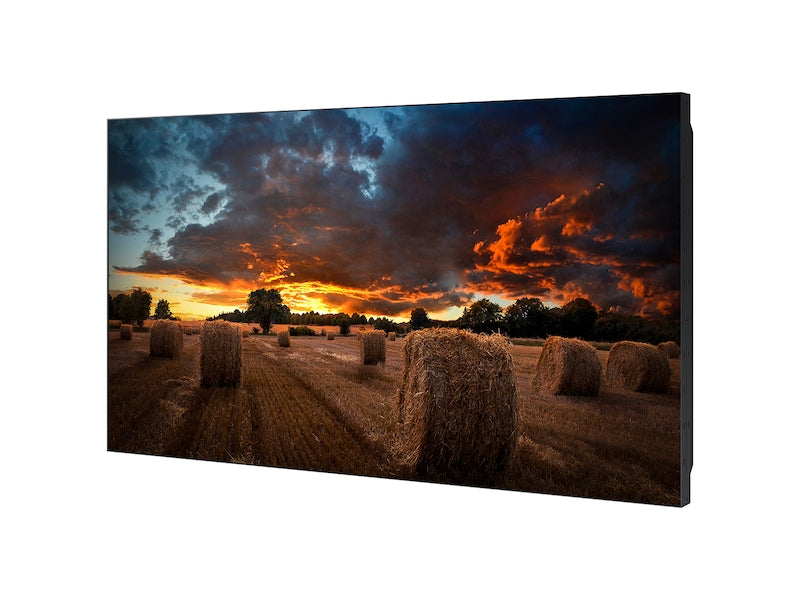

Samsung VMB-U Series 55" Video Wall Display (VM55B-U) – Ultra-Narrow Bezel 4K Daisy-Chain Commercial Signage Display

  • Samsung 55 inch VM55B-U ultra narrow bezel professional digital signage video wall display
1 1

Samsung VMB-U Series 55" Video Wall Display (VM55B-U) – Ultra-Narrow Bezel 4K Daisy-Chain Commercial Signage Display

Samsung VMB-U Series 55" Video Wall Display (VM55B-U) – Ultra-Narrow Bezel 4K Daisy-Chain Commercial Signage Display

3.5mm Ultra-Narrow Bezel: Minimizes screen gaps to create an immersive, continuous multi-display surface across expansive configurations.

4K UHD Multi-Screen Daisy-Chain: Utilizes DisplayPort 1.2 loop-out to run multi-panel video walls without requiring external graphic splitters or matrix controllers.

24/7 Commercial Duty Cycle: Heavy-duty internal engineering optimized for uninterrupted, continuous performance in control rooms and transportation hubs.

500-Nit Panel with 25% Haze Treatment: Prevents reflections from overhead warehouse or office lights while maintaining high visual contrast.

Precision Factory Color Calibration: Multi-step adjustments align brightness and uniformity across all panels before leaving the factory floor.

Mobile Color Expert Pro Access: Allows on-site engineers to calibrate matrix arrays quickly using a mobile device camera over local network lines.

Samsung
Brand : Samsung
Model : VM55B-U / LH55VMBUBGBXGO

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Optimized for high-impact visual platforms across the UAE, GCC, Africa, and CIS markets. Excellent as a 24/7 security control room display array for monitoring stations in Abu Dhabi and Riyadh. Serves as a dynamic digital backdrop and informational display wall for transit passenger terminals in Cairo and Nairobi. Prominent as an immersive visual focal point for luxury fashion retail storefronts and financial trading floors in Almaty, Baku, and Dubai.

Suggested Push-Pull Bracket

Samsung 55 inch VM55B-U ultra narrow bezel professional digital signage video wall display
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN VM55B-U (LH55VMBUBGBXGO)
Display Size & Type 55-inch IPS-Type Direct-Lit LED Commercial Panel
Native Resolution Full HD (1920 x 1080) | Supports 4K UHD Daisy-Chain
Bezel-to-Bezel Width 3.5 mm Ultra-Narrow Bezel (2.25 mm Top/Left, 1.25 mm Bottom/Right)
Panel Brightness 500 nits (Typical) for clear visibility under indoor lighting
Contrast Ratio 1200:1 (Static) | 500,000:1 (Dynamic)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Viewing Angle
Haze / Anti-Glare 25% Haze Treatment for reflection prevention
Operating System Embedded MagicINFO Player S10 / Proprietary Signage Engine
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Mission-Critical Operation
Video Input Interfaces 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Video Wall Daisy-Chaining)
Data & Control Ports 1x USB 2.0, RS232C In/Out (Stereo Jack), RJ45 LAN In/Out
Color Calibration Factory Pre-Calibrated (ACM) | Mobile App Calibration Support
Mechanical Dimensions 1213.5 x 684.3 x 73.1 mm | VESA Mount: 600 x 400 mm | Weight: ~19.5 kg

Achieve seamless visual synchronization and maximize operational impact with the Samsung VMB-U Series 55" Video Wall Display – VM55B-U. Engineered specifically for high-stress, always-on corporate, transit, and security environments, this professional display minimizes visual disruption through an ultra-narrow 3.5mm bezel-to-bezel design. The VM55B-U eliminates the need for expensive external graphic matrix splitters by leveraging an integrated DisplayPort 1.2 loop-through mechanism. This allows system integrators to scale multi-screen arrays up to a 5x5 configuration while preserving native 4K Ultra HD resolution across the entire video wall layout.

The core visual panel uses a high-grade IPS direct-lit LED matrix that pumps out 500 nits of brightness, counteracting harsh indoor ambient lighting with a specialized 25% haze anti-glare surface treatment. Designed for command centers, luxury retail storefronts, and broadcast studios across Dubai, Riyadh, and Almaty, the display maintains absolute color accuracy and image structural alignment across off-angle perspectives. Outfitted with an advanced non-glare panel design and an industrial-grade internal cooling chassis, the VM55B-U is built for non-stop, 24/7 mission-critical duty cycles without screen burn-in or color degradation.

For multi-site corporate networks spanning Africa and the CIS region, uniform calibration is the baseline for professional presentation. Each VM55B-U undergoes meticulous multi-step factory calibration to align brightness and chromaticity right out of the box. For localized micro-adjustments post-installation, IT teams can utilize Samsung's Color Expert Pro Mobile software, executing color balancing across large matrices via a mobile phone camera over the local network. TrianzeTech backs this elite display infrastructure with secure international logistics routing and factory-supported enterprise warranties.

Technical Parameter Specification / Feature Details
Model / MPN VM55B-U (LH55VMBUBGBXGO)
Display Size & Type 55-inch IPS-Type Direct-Lit LED Commercial Panel
Native Resolution Full HD (1920 x 1080) | Supports 4K UHD Daisy-Chain
Bezel-to-Bezel Width 3.5 mm Ultra-Narrow Bezel (2.25 mm Top/Left, 1.25 mm Bottom/Right)
Panel Brightness 500 nits (Typical) for clear visibility under indoor lighting
Contrast Ratio 1200:1 (Static) | 500,000:1 (Dynamic)
Viewing Angle (H / V) 178° / 178° Ultra-Wide Viewing Angle
Haze / Anti-Glare 25% Haze Treatment for reflection prevention
Operating System Embedded MagicINFO Player S10 / Proprietary Signage Engine
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Mission-Critical Operation
Video Input Interfaces 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Video Wall Daisy-Chaining)
Data & Control Ports 1x USB 2.0, RS232C In/Out (Stereo Jack), RJ45 LAN In/Out
Color Calibration Factory Pre-Calibrated (ACM) | Mobile App Calibration Support
Mechanical Dimensions 1213.5 x 684.3 x 73.1 mm | VESA Mount: 600 x 400 mm | Weight: ~19.5 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The VM55B-U features a hardware-driven DisplayPort 1.2 input and loop-through output architecture. When installing large video wall arrays, system integrators in Dubai and Riyadh can feed a single 4K source video stream into the first screen and loop the signal down the line sequentially up to a 5x5 layout. This native processing preserves 4K resolution clarity across the display matrix and eliminates the need for expensive external distribution amplifiers, multi-output graphics servers, or active matrix switches.
Every individual VM55B-U undergoes a rigorous multi-step factory calibration process that tunes the display's brightness, contrast, and gray-scale balance to precise uniformity standards. Over time, or when individual panels are replaced in regions like Central Asia or North Africa, shifts can occur. Samsung Color Expert Pro Mobile enables technicians on the ground to execute fine color-balancing adjustments across the network using a compatible smartphone camera, bypassing the need for specialized, costly spectrophotometer hardware.

Standard commercial signage screens are typically rated for 16 hours of daily runtime, running the risk of panel burn-in or component overheating if pushed harder. The VM55B-U is built with a fortified industrial backlight panel and an optimized passive heat-dissipation design rated for 24/7 continuous operation. This ensures maximum operational uptime in high-stress command rooms in Almaty or Cairo, preventing pixel degradation and panel failures under constant runtime constraints.
Corporate building lobbies and airport terminals frequently use glass facades and high-intensity overhead lighting, which create reflections on standard screens. The VM55B-U panel features an advanced 25% haze anti-glare surface treatment. This layer scatters incoming light reflections across the display face without distorting image clarity or reducing the 500-nit base brightness output, ensuring critical metrics or branding elements remain visible from any viewing angle.
Because the VM55B-U features an ultra-narrow 3.5mm bezel-to-bezel profile, micro-movements in structural walls can warp array lines. Integrators should couple these panels with heavy-duty pop-out video wall mounts that offer 3-axis micro-adjustments. When exporting these units to infrastructure projects in Kazakhstan or Kenya, TrianzeTech recommends leaving a safety gap of roughly 0.5mm between the physical panel bezels during construction to allow for building settling and structural heat expansion without damaging the glass.
