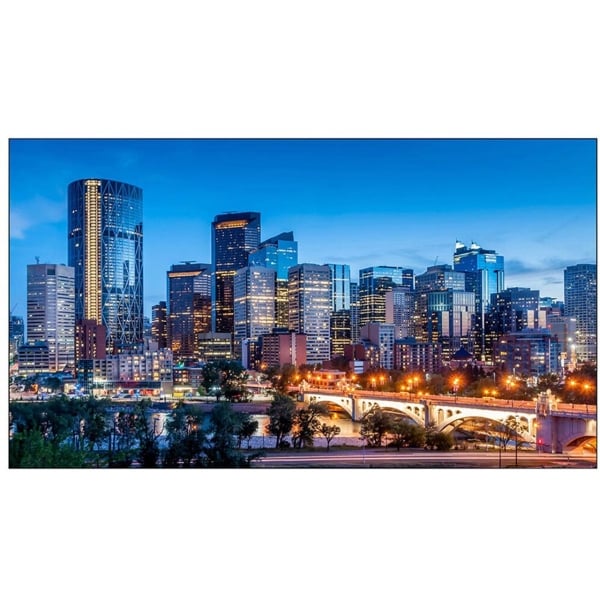

Samsung VM55C-E 55" Full HD VMC-E Series Extreme Narrow Bezel Commercial LCD Video Wall Display

  • Samsung VM55C-E 55 inch extreme narrow bezel 1.74mm LCD video wall display for command centers
1 8

Samsung VM55C-E 55" Full HD VMC-E Series Extreme Narrow Bezel Commercial LCD Video Wall Display

Samsung VM55C-E 55" Full HD VMC-E Series Extreme Narrow Bezel Commercial LCD Video Wall Display

1.74mm Extreme-Narrow Bezel: Shrinks the frame gap between panels to near-invisibility, maximizing seamless visual consistency.

IP5x Certified Dust Protection: Built-in resilience against debris accumulation, ensuring stable operations in high-traffic hubs.

4K UHD Multi-Screen Daisy-Chain: Utilizes DisplayPort 1.2 loop-out to run multi-panel video walls without requiring external graphic splitters or matrix controllers.

24/7 Commercial Duty Cycle: Heavy-duty internal engineering optimized for uninterrupted, continuous performance in control rooms and transportation hubs.

500-Nit Panel with 28% Haze Treatment: Prevents reflections from overhead warehouse or office lights while maintaining high visual contrast.

Precision Factory Color Calibration: Multi-step adjustments align brightness and uniformity across all panels before leaving the factory floor.

Mobile Color Expert Pro Access: Allows on-site engineers to calibrate matrix arrays quickly using a mobile device camera over local network lines.

Samsung
Brand : Samsung
Model : VM55C-E

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Command Centers: 24/7 continuous surveillance array for municipal traffic, energy plants, and security hubs in Dubai and Riyadh.

Transit Hubs: High-density flight information or train schedule matrix in terminals across Cairo and Nairobi.

Luxury Retail & Showrooms: Immersive promotional loops for flagship stores in Dubai Mall or elite boutiques in Almaty.

Corporate & Finance Floors: Real-time data feeds and branding walls inside banking headquarters across the GCC and CIS regions.

Suggested Push-Pull Bracket - VSVW02-46T

Samsung VM55C-E 55 inch extreme narrow bezel 1.74mm LCD video wall display for command centers
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN VM55C-E (LH55VMCEBGBXGO / LH55VMCEBGBXUE)
Display Size & Type 55-inch IPS-Type Direct-Lit LED Commercial Panel
Native Resolution Full HD (1920 x 1080) | Supports 4K UHD Video Wall Arrays
Bezel-to-Bezel Width 1.74 mm Extreme Narrow Bezel (1.3 mm Top/Left, 0.44 mm Bottom/Right)
Panel Brightness 500 nits (Typical) for continuous indoor clarity
Contrast Ratio 1000:1 (Static) | 100,000:1 (Dynamic)
Viewing Angle (H / V) 178° / 178° Extra-Wide Structural Viewing Angles
Glass Haze / Non-Glare 28% Haze Treatment for high-intensity reflection deflection
Operating System Supported by Samsung Tizen / UHD Signage Player Box Compatible
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Dust Protection Rating IP5x Certified Dust-Resistant Housing
Video Input Interfaces 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2, 1x DVI-D
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Video Wall Daisy-Chaining)
Data & Control Ports 1x USB 2.0 (Firmware), RS232C In/Out (Stereo Jack), RJ45 LAN In/Out
Image Optimization Embedded Picture Enhancer & Black Equalizer Modes
Color Calibration Factory Multi-Step Uniformity Tuning | Color Expert Pro Mobile App
Mechanical Dimensions 1212.2 x 683.0 x 70.4 mm | VESA Mount: 600 x 400 mm | Weight: ~19.5 kg

Deliver an uninterrupted, visually dominant viewing experience with the Samsung VM55C-E 55" VMC-E Series Video Wall Display. Engineered specifically for high-stress, always-on corporate, transit, and security environments, this screen pushes past the limitations of standard digital layouts by introducing an extreme-narrow 1.74mm bezel-to-bezel structural gap. The display eliminates the need for expensive external graphic matrix splitters by leveraging an integrated DisplayPort 1.2 loop-through mechanism. This allows system integrators to scale multi-screen arrays up to a 5x5 configuration while preserving native 4K Ultra HD resolution across the entire video wall layout.

The core visual panel uses a high-grade IPS direct-lit LED matrix that pumps out 500 nits of brightness, counteracting harsh indoor ambient lighting with a specialized 28% haze anti-glare surface treatment. Designed for command centers, luxury retail storefronts, and broadcast studios across Dubai, Riyadh, and Almaty, the display maintains absolute color accuracy and image structural alignment across off-angle perspectives. Outfitted with an advanced non-glare panel design and an industrial-grade internal cooling chassis, the VM55C-E is built for non-stop, 24/7 mission-critical duty cycles without screen burn-in or color degradation.

For multi-site corporate networks spanning Africa and the CIS region, uniform calibration is the baseline for professional presentation. Each VM55C-E undergoes meticulous multi-step factory calibration to align brightness and chromaticity right out of the box. For localized micro-adjustments post-installation, IT teams can utilize Samsung's Color Expert Pro Mobile software, executing color balancing across large matrices via a mobile phone camera over the local network. TrianzeTech backs this elite display infrastructure with secure international logistics routing and factory-supported enterprise warranties.

Technical Parameter Specification / Feature Details
Model / MPN VM55C-E (LH55VMCEBGBXGO / LH55VMCEBGBXUE)
Display Size & Type 55-inch IPS-Type Direct-Lit LED Commercial Panel
Native Resolution Full HD (1920 x 1080) | Supports 4K UHD Video Wall Arrays
Bezel-to-Bezel Width 1.74 mm Extreme Narrow Bezel (1.3 mm Top/Left, 0.44 mm Bottom/Right)
Panel Brightness 500 nits (Typical) for continuous indoor clarity
Contrast Ratio 1000:1 (Static) | 100,000:1 (Dynamic)
Viewing Angle (H / V) 178° / 178° Extra-Wide Structural Viewing Angles
Glass Haze / Non-Glare 28% Haze Treatment for high-intensity reflection deflection
Operating System Supported by Samsung Tizen / UHD Signage Player Box Compatible
Duty Cycle / Reliability 24 Hours / 7 Days Continuous Industrial Operation
Dust Protection Rating IP5x Certified Dust-Resistant Housing
Video Input Interfaces 2x HDMI 2.0 (HDCP 2.2), 1x DisplayPort 1.2, 1x DVI-D
Video Output Loop 1x DisplayPort 1.2 Out (Supports UHD Video Wall Daisy-Chaining)
Data & Control Ports 1x USB 2.0 (Firmware), RS232C In/Out (Stereo Jack), RJ45 LAN In/Out
Image Optimization Embedded Picture Enhancer & Black Equalizer Modes
Color Calibration Factory Multi-Step Uniformity Tuning | Color Expert Pro Mobile App
Mechanical Dimensions 1212.2 x 683.0 x 70.4 mm | VESA Mount: 600 x 400 mm | Weight: ~19.5 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The VM55C-E is structurally designed with an extreme narrow bezel width measuring just 1.3mm on the top/left and 0.44mm on the bottom/right, resulting in a 1.74mm bezel-to-bezel (B2B) composite gap. For control rooms and premium enterprise lobbies in Dubai and Riyadh, this micro-bezel architecture minimizes the harsh black alignment grids common in older digital installations, preserving the geometry of maps, architectural line data, and fine text telemetry.
Airborne particulate matter and localized dust are major threats to the lifespan of LCD matrix backlights. The VM55C-E features an enclosed internal chassis that has achieved an IP5x dust-resistance validation. When deployed in high-traffic logistics environments or transport corridors across Egypt, Kenya, or Saudi Arabia, it prevents dust ingestion from causing internal hot-spots or panel darkening, avoiding the need for specialized external cooling enclosures.
When scaling low-resolution or legacy video streams up onto a massive multi-screen array, images can appear muddy or lose contrast in dark spaces. The VM55C-E includes proprietary processing algorithms: Picture Enhancer mode maps custom gamma curves to elevate deep saturation targets in real time, while Black Equalizer mode analyzes dark pixel blocks and balances black levels. This improves visibility for nighttime CCTV surveillance feeds in Kazakhstan or the UAE.

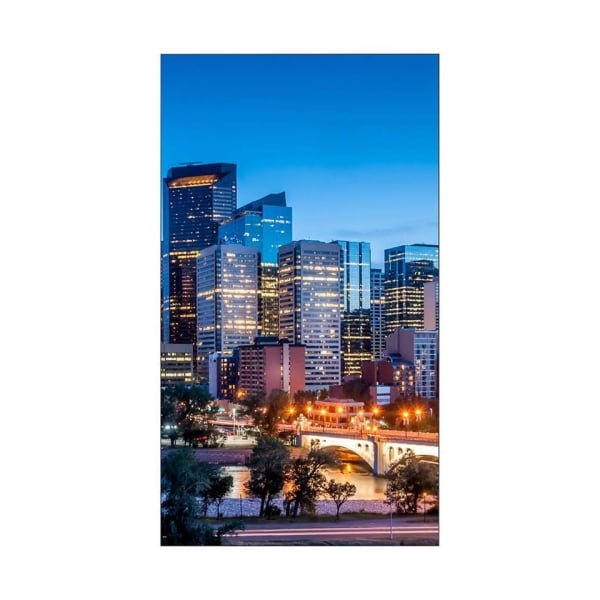

Yes. The structural mechanical framework and liquid crystal cells of the VM55C-E are optimized for both landscape and portrait installations. Standard displays can suffer from "gravity-flow" light bleeding or asymmetrical heat pooling when turned vertically, but the cooling vents and internal supports on this screen distribute thermal energy evenly across a 24/7 duty cycle, opening up versatile options for tall retail pillars or creative artwork displays in Almaty or Doha.
While lower-spec screens carry a 15% to 25% haze rating, the VM55C-E features an enhanced 28% glass haze layer. This specific chemical treatment completely diffuses direct reflections from high-output LED spotlights and office lighting. This feature ensures that dashboards and branding assets stay visible without glare blooming across the panel, which is essential for television broadcast backdrops and brightly lit corporate meeting rooms across the GCC.
