Samsung 86" WA86FX-P 4K Interactive Touchscreen Display – All-in-One AI-Powered Corporate Boardroom & Collaborative Panel

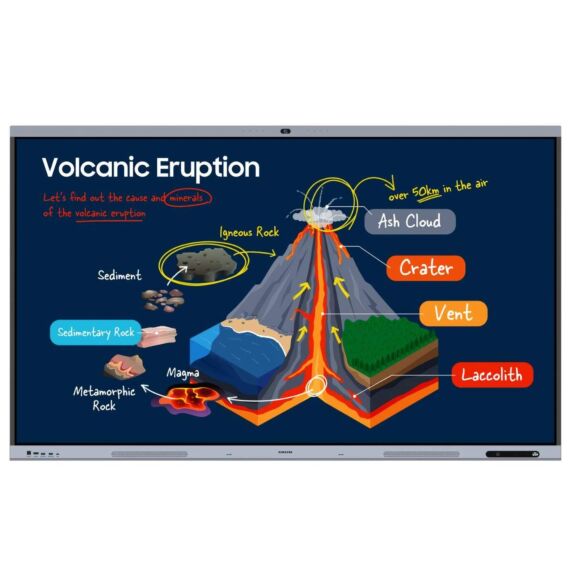

  • Samsung 86 inch WA86FX-P 4K interactive touchscreen display for corporate boardrooms

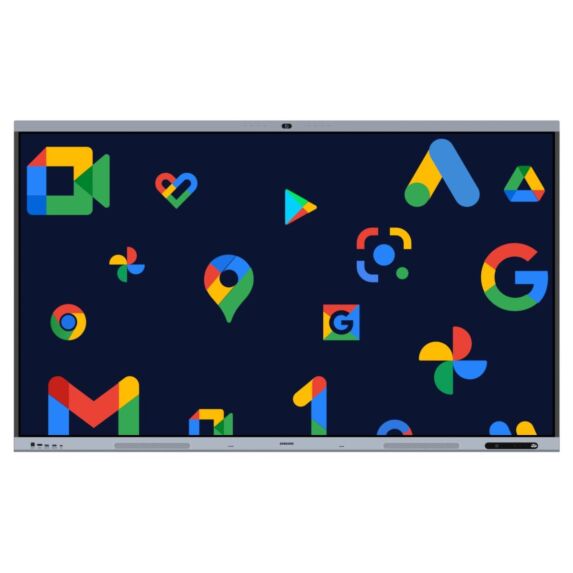

  • Collaborative whiteboard session on Samsung WA86FX-P Android 15 interactive flat panel
1 2

Samsung 86" WA86FX-P 4K Interactive Touchscreen Display – All-in-One AI-Powered Corporate Boardroom & Collaborative Panel

Samsung 86" WA86FX-P 4K Interactive Touchscreen Display – All-in-One AI-Powered Corporate Boardroom & Collaborative Panel

Google EDLA Certified Workspace: Combines native Android 15 performance with seamless access to Google Play, Google Drive, and major corporate applications.

Integrated 48MP AI Camera & 60W Sound: Delivers high-tier video conferencing using auto-framing visual analytics, a 10m microphone radius, and embedded dual speakers with a sub-woofer.

AI Write & Search Whiteboard Technology: Features handwriting recognition and digital ink automation, enabling users to circle written text and execute direct web search queries.

50-Point Multi-Touch IR Interaction: Ultra-low latency panel that allows heavy simultaneous user collaboration; supports dual-pen nib differentiation for swift color-switching.

Versatile 65W Type-C & Windows OPS Expansion: Combines video, touch routing, and power delivery into one cable, while offering an open interface slot for an optional Windows modular PC.

9-Device Wireless Screen Projection: Promotes inclusive meeting environments by broadcasting content from up to nine peripheral screens simultaneously across iOS, Android, macOS, and Windows.

High-Brightness Anti-Glare Safety Glass: Built with a 450-nit commercial panel treated with a 25% haze anti-glare layer and Mohs 5 shatterproof hardness.

Samsung
Brand : Samsung
Model : WA86FX-P

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Optimized for premium collaboration installations across the UAE, GCC, Africa, and CIS enterprise sectors. Serves as a standalone hub for executive boardrooms and hybrid meeting rooms in Dubai and Riyadh, facilitating native Zoom and Teams calls. Acts as an interactive visual wall for research labs and engineering briefing rooms in Baku and Almaty, processing complex data matrices via active multi-user touch annotations. Prominent as an expansive visual system for higher education lecture halls and advanced vocational training centers in Cairo and Nairobi.
Suggested Floor Stand

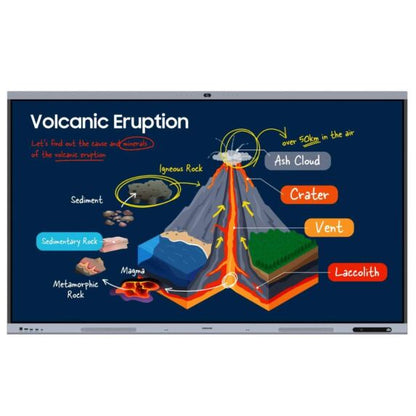

Samsung 86 inch WA86FX-P 4K interactive touchscreen display for corporate boardrooms
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN WA86FX-P (LH86WAFPLGCXXK / LH86WAFPLGCXUE)
Display Size & Type 86-inch IPS Direct LED Large Format Display (LFD)
Native Resolution 4K Ultra HD (3840 x 2160) @ 60 Hz
Panel Brightness 450 nits (Typical)
Contrast Ratio 1200:1 (Static) | 178°/178° Ultra-Wide Viewing Angle
Touch Technology Advanced Infrared (IR) Multi-Touch Layer
Touch Capacity Up to 50 Simultaneous Touchpoints (with Windows/OPS or external PC)
Screen Protection 25% Haze Anti-Glare, Anti-Reflection Coating, Mohs 5 Hardness
Built-in System SoC High-Performance Octa-Core Enterprise CPU
Memory & Storage 16GB LPDDR4X RAM / 128GB High-Speed SSD
Operating System Android 15 with Official Google EDLA Certification
Built-in AV System Integrated 48MP AI Auto-Framing Camera & 10m Voice Pick-up Mics
Audio & Acoustics 60W Audio Output System (Dual 20W Speakers + Integrated Woofer)
Wireless Protocols Wi-Fi 6 (802.11ax), Bluetooth, Screen Sharing for up to 9 Devices
Input / Output Interfaces 2x HDMI 2.1 In, 1x DP 1.2 In, 1x HDMI Out, 1x USB-C (65W PD, Touch, Video)
Data & Expansion Ports 4x USB-A (3.0/2.0), RS232C In, RJ45 Gigabit LAN In, RJ45 LAN Out, OPS Slot
AI Software Engines Embedded AI Write & Search, Built-in Live Captioning, Screen Split
Duty Cycle / Reliability 12 Hours / 7 Days Commercial Grade Structural Build
Mechanical Dimensions 1950.4 x 1174.0 x 87.1 mm | VESA Mount: 800 x 600 mm | Weight: ~62 kg

Accelerate corporate synergy, optimize presentation workflows, and redefine collective decision-making with the flagship Samsung 86" WA86FX-P Interactive Touchscreen Display. Purpose-built for elite executive boardrooms, enterprise huddle hubs, and advanced training centers, this massive 4K UHD system operates as a unified communication engine without relying on external computer hardware. Outfitted with official Google Enterprise Devices Licensing Agreement (EDLA) Certification, the display runs natively on Android 15 backed by an octa-core CPU, 16GB of RAM, and a 128GB SSD. This ensures immediate, secure access to the entire Google Workspace ecosystem—including Google Drive, Docs, and Chrome—alongside native execution of enterprise tools via the Google Play Store.

Engineered for frictionless remote and hybrid meetings, the WA86FX-P possesses an integrated All-in-One Video Call System. This configuration features an embedded 48MP camera utilizing AI Auto-Framing to track active presenters, an advanced array microphone capturing clear voice frequencies within a 10-meter perimeter, and a powerful 60W multi-channel sound infrastructure (complete with stereo speakers and a dedicated sub-woofer). For intense hands-on collaboration, the screen incorporates an advanced, ultra-responsive Infrared multi-touch panel capable of handling up to 50 simultaneous interactive inputs. The paper-like digital whiteboard layer features AI Write & Search capabilities, enabling users to circle handwritten notes and instantly translate them into structured web query results without typing.

Designed with enterprise infrastructure and deployment versatility at its core, the WA86FX-P includes a 3-in-1 USB-C port that simultaneously handles 4K video playback, precise touch control signals, and robust 65W power delivery for external workstations. An integrated Open Pluggable Specification (OPS) slot allows IT administrators to snap in a dedicated Windows-based PC module, instantly transitioning the ecosystem to match existing corporate network guidelines. Secured at the silicon layer by Samsung's specialized commercial protection matrices, this device offers seamless multi-screen splitting and wireless screen-casting for up to 9 host platforms simultaneously. TrianzeTech offers this advanced enterprise solution with direct factory backing and technical warranty parameters optimized for strategic cross-border project logistics.

Technical Parameter Specification / Feature Details
Model / MPN WA86FX-P (LH86WAFPLGCXXK / LH86WAFPLGCXUE)
Display Size & Type 86-inch IPS Direct LED Large Format Display (LFD)
Native Resolution 4K Ultra HD (3840 x 2160) @ 60 Hz
Panel Brightness 450 nits (Typical)
Contrast Ratio 1200:1 (Static) | 178°/178° Ultra-Wide Viewing Angle
Touch Technology Advanced Infrared (IR) Multi-Touch Layer
Touch Capacity Up to 50 Simultaneous Touchpoints (with Windows/OPS or external PC)
Screen Protection 25% Haze Anti-Glare, Anti-Reflection Coating, Mohs 5 Hardness
Built-in System SoC High-Performance Octa-Core Enterprise CPU
Memory & Storage 16GB LPDDR4X RAM / 128GB High-Speed SSD
Operating System Android 15 with Official Google EDLA Certification
Built-in AV System Integrated 48MP AI Auto-Framing Camera & 10m Voice Pick-up Mics
Audio & Acoustics 60W Audio Output System (Dual 20W Speakers + Integrated Woofer)
Wireless Protocols Wi-Fi 6 (802.11ax), Bluetooth, Screen Sharing for up to 9 Devices
Input / Output Interfaces 2x HDMI 2.1 In, 1x DP 1.2 In, 1x HDMI Out, 1x USB-C (65W PD, Touch, Video)
Data & Expansion Ports 4x USB-A (3.0/2.0), RS232C In, RJ45 Gigabit LAN In, RJ45 LAN Out, OPS Slot
AI Software Engines Embedded AI Write & Search, Built-in Live Captioning, Screen Split
Duty Cycle / Reliability 12 Hours / 7 Days Commercial Grade Structural Build
Mechanical Dimensions 1950.4 x 1174.0 x 87.1 mm | VESA Mount: 800 x 600 mm | Weight: ~62 kg
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
Google Enterprise Devices Licensing Agreement (EDLA) certification bridges the gap between secure enterprise deployment and user familiarity. Unlike basic open-source Android panels, the WA86FX-P natively incorporates the Google Core Services (GCS) framework. This enables secure login syncing, deployment of corporate apps via Google Play, and strict compliance with global zero-trust network protocols. IT teams in Dubai and Riyadh can deploy these panels with confidence, as they support standard credential controls, auto-updates, and network management profiles through standard MDM platforms like Microsoft Intune.
The screen uses advanced digital ink recognition and deep-learning visual algorithms. When an executive or engineer writes on the whiteboard layer, the built-in AI Write & Search engine recognizes the handwriting in real time. By simply circling a handwritten term or diagram, a quick-access search panel appears, enabling users to instantly browse web content, pull reference documents, or retrieve media files without using an external keyboard. This maintains the physical flow of brainstorming sessions in corporate offices across Cairo, Almaty, or Doha.
Yes, via its integrated Open Pluggable Specification (OPS) interface slot. By inserting an optional, slide-in Windows OPS PC module into the display's chassis, the terminal becomes a dual-OS powerhouse. Users can switch between the native Android 15 interface and a full Windows 11 Enterprise environment with a single click. This configuration is highly useful for corporate environments in the CIS and African markets, where specific local software or security platforms require native Windows execution while maintaining touch capabilities up to 50 points.
The WA86FX-P integrates an advanced, hardware-driven acoustic stack. It features a beamforming microphone array that tracks human voice frequencies while actively cancelling background echo, HVAC noise, and room reflections up to a 10-meter radius. This setup is paired with an expansive 60W audio layout consisting of twin 20W mid-high range stereo speakers and a dedicated 20W woofer. This ensures clear sound for remote callers during high-stakes hybrid meetings across Nairobi, Tashkent, and Abu Dhabi.
The multi-functional Type-C port on the front and side connectivity panels aggregates three distinct communication streams into a single connection. It supports standard DisplayPort Alt Mode for 4K video/audio input, a high-speed data bus for real-time touch feedback loopback to the host machine, and USB Power Delivery up to 65W. A visiting executive in Jeddah or Dubai can connect a personal laptop with one cable to project their screen, gain full 86-inch touch control over their operating system, and charge their device simultaneously, removing the need for external power adapters and legacy touch-routing cables.
