Samsung Windows Kiosk 24" Touch Display (KM24C-3) – All-in-One Self-Service POS Terminal (Intel i3, 256GB SSD)

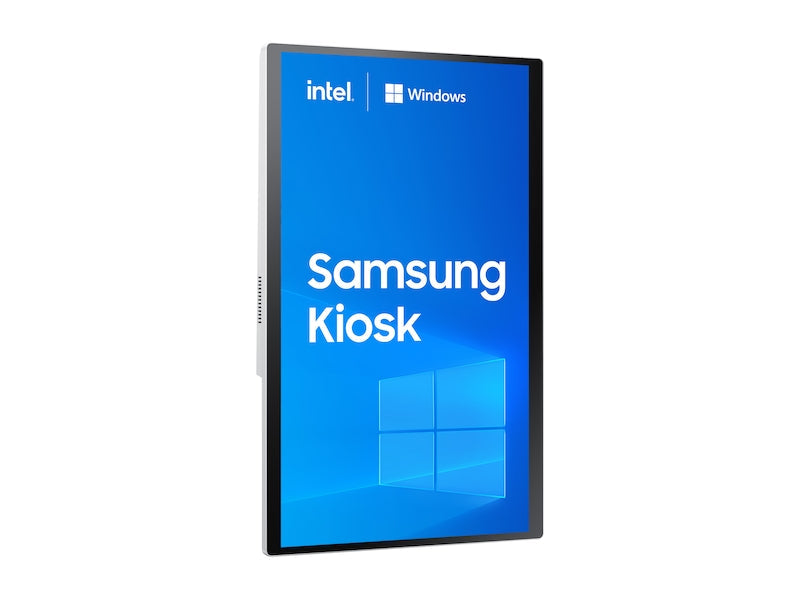

  • Samsung 24 inch Windows Kiosk KM24C-3 touchscreen self service terminal on countertop stand
1 1

Samsung Windows Kiosk 24" Touch Display (KM24C-3) – All-in-One Self-Service POS Terminal (Intel i3, 256GB SSD)

Samsung Windows Kiosk 24" Touch Display (KM24C-3) – All-in-One Self-Service POS Terminal (Intel i3, 256GB SSD)

All-in-One Windows OS Architecture: Eliminates complex external PC installations via an integrated 11th Gen Intel Core i3 SoC running Windows 10 IoT Enterprise.

Modular Payment & Hardware Options: Features an integrated connection box with a 250mm/s auto-cutting thermal printer; easily mounts EMV card readers, barcode/QR scanners, and NFC sensors.

Sanitized & Protected ADS Panel: 24" Full HD portrait screen wrapped in an anti-bacterial coating, anti-glare surface treatment, and a specialized protective shatterproof safety film.

Knox Core Security Integration: Safeguards payment infrastructure and critical enterprise networks utilizing multi-layered hardware security tracking.

Value-Engineered Mounting Versatility: Designed with spatial efficiency in mind; easily deploys as a space-saving countertop terminal, standard wall mount, or free-standing floor stand.

Regional Bulk Logistics Gateway: Procured via official manufacturer channels with legitimate enterprise warranties valid across the UAE, GCC, Africa, and CIS.

Samsung
Brand : Samsung
Model : KM24C-3

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

Optimized for high-traffic environments across the UAE, GCC, Africa, and CIS markets. Excellent as an interactive self-ordering station for QSR and casual dining outlets in Dubai Mall or Riyadh Front. Serves as an efficient ticketing and self-checkout point for supermarket lines in Cairo and Nairobi. Prominent as an indoor self-service registration terminal for banking lobbies, medical clinics, and governmental service bureaus in Almaty and Tashkent, ensuring optimized customer handling and lower overheads.

Samsung 24 inch Windows Kiosk KM24C-3 touchscreen self service terminal on countertop stand
  • Specifications
  • Details
Technical Parameter Specification / Feature Details
Model / MPN KM24C-3 (LH24KMC3BGCXEN)
Display Size & Type 24-inch ADS (IPS-Type) Commercial LCD Panel
Native Resolution Full HD (1920 x 1080) @ 60 Hz
Orientation Portrait (Native Vertical Layout)
Touchscreen Technology 10-Point Projective Capacitive Touch
Screen Protection Anti-Glare, Anti-Bacterial Coating, Shatterproof Protection Film
Processor (Onboard SoC) 11th Gen Intel® Core™ i3 Processor (i3-1115G4E)
Memory & Storage 8GB LPDDR4X RAM / 256GB SSD
Operating System Windows 10 IoT Enterprise LTSC
Modular Connection Box Included (Supports Credit Card, Barcode/QR Code, NFC Integration)
Built-in Receipt Printer Thermal Printer (250mm/sec speed, Auto-Cutter, 80mm roll support)
Network Connectivity Wi-Fi (Built-in), Bluetooth, 1x RJ45 Gigabit Ethernet
I/O Ports 3x USB Type-A, 1x USB Type-B (Service), 3x RS232C, One Connect Port (44-Pin)
Enterprise Security Three-Layer Hardware Protection powered by Samsung Knox
Duty Cycle / Reliability 16 Hours / 7 Days continuous commercial operation
Mounting Options Countertop (Standard), Wall Mount (VESA 200x200), or Floor Stand (Sold Separately)

Accelerate transaction speeds, minimize queuing times, and elevate consumer engagement with the Samsung Windows Kiosk Touch Display – KM24C-3. Built specifically to handle high-velocity commercial environments, this 24-inch all-in-one terminal bypasses the need for cluttered external companion PCs. Driven by an embedded 11th Generation Intel® Core™ i3 processor and pre-configured with Windows 10 IoT Enterprise LTSC, it ensures seamless hardware compatibility with existing legacy ERPs, custom web apps, and global Point of Sale (POS) software ecosystems.

Architected with Samsung's unique modular philosophy, the KM24C-3 features a highly functional, compact base connection box equipped with a built-in heavy-duty 250mm/s thermal receipt printer. The unit seamlessly integrates modern peripheral arrays—including EFT card terminal cradles, multi-format 1D/2D barcode scanners, QR code modules, and NFC readers—allowing your business to accept any transactional medium straight out of the box. The display panel features a portrait-oriented ADS matrix displaying crisp Full HD graphics with wide 178° viewing angles, wrapped in an anti-glare, anti-bacterial coating and reinforced with shatterproof protective safety film.

For enterprise IT infrastructure managers handling multi-location distributions across Dubai, Riyadh, Cairo, or Almaty, security and remote maintenance are paramount. The KM24C-3 incorporates elite three-layer hardware security powered by Samsung Knox, preventing malware incursions and safeguarding vulnerable financial and customer data. Additionally, the kiosk integrates natively with cloud management platforms like Samsung MagicINFO and Microsoft Intune, granting administrators the ability to execute remote diagnostics, update application firmware, and check active hardware status from any network-accessible location. TrianzeTech supplies this highly adaptable unit alongside specialized global export workflows to fulfill large-scale regional project rollouts.

Technical Parameter Specification / Feature Details
Model / MPN KM24C-3 (LH24KMC3BGCXEN)
Display Size & Type 24-inch ADS (IPS-Type) Commercial LCD Panel
Native Resolution Full HD (1920 x 1080) @ 60 Hz
Orientation Portrait (Native Vertical Layout)
Touchscreen Technology 10-Point Projective Capacitive Touch
Screen Protection Anti-Glare, Anti-Bacterial Coating, Shatterproof Protection Film
Processor (Onboard SoC) 11th Gen Intel® Core™ i3 Processor (i3-1115G4E)
Memory & Storage 8GB LPDDR4X RAM / 256GB SSD
Operating System Windows 10 IoT Enterprise LTSC
Modular Connection Box Included (Supports Credit Card, Barcode/QR Code, NFC Integration)
Built-in Receipt Printer Thermal Printer (250mm/sec speed, Auto-Cutter, 80mm roll support)
Network Connectivity Wi-Fi (Built-in), Bluetooth, 1x RJ45 Gigabit Ethernet
I/O Ports 3x USB Type-A, 1x USB Type-B (Service), 3x RS232C, One Connect Port (44-Pin)
Enterprise Security Three-Layer Hardware Protection powered by Samsung Knox
Duty Cycle / Reliability 16 Hours / 7 Days continuous commercial operation
Mounting Options Countertop (Standard), Wall Mount (VESA 200x200), or Floor Stand (Sold Separately)
Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Book a call
The Samsung KM24C-3 comes pre-configured with Windows 10 IoT Enterprise LTSC (Long-Term Servicing Channel). This lightweight, enterprise-grade OS provides maximum stability by eliminating non-business Windows background updates. It features full win32 application compatibility, allowing IT managers in Dubai and Riyadh to natively deploy existing legacy ERP systems, localized SQL databases, and custom retail POS software directly onto the kiosk hardware without complex middleware or recoding.
The integrated scanner module in the Samsung Windows Kiosk utilizes high-resolution Dual CIS (Contact Image Sensor) arrays alongside specialized optics. This allows the terminal to read multi-format 1D/2D barcodes, mobile QR codes, and digital wallets instantly. For high-volume environments like exchange houses in the GCC or retail hubs in Cairo and Nairobi, the software can be customized to read diverse validation markers, ensuring quick verification of regional mobile payment confirmations and printed receipts.
The kiosk is powered by an ultra-low-voltage 11th Gen Intel® Core™ i3-1115G4E embedded processor, specifically engineered for industrial longevity and low thermal output. It features an optimized passive-cooling chassis design that allows a reliable 16/7 continuous commercial duty cycle. This advanced thermal management prevents CPU throttling and hardware degradation, ensuring uninterrupted uptime even when deployed in non-air-conditioned transit hubs or high-ambient-temperature environments across Kazakhstan, Uzbekistan, and the UAE.
Yes. The modular connection box features internal hardware health loopbacks. When integrated with Samsung MagicINFO or enterprise Mobile Device Management (MDM) platforms like Microsoft Intune, IT administrators can remotely monitor the kiosk's hardware metrics. This includes tracking printer status (such as paper-low or paper-jam alerts), hardware temperature, and connection status, allowing centralized IT teams in Dubai to troubleshoot units deployed in remote branches across Almaty, Baku, or Jeddah without dispatching local technicians.
The KM24C-3 features a Projective Capacitive (P-Cap) touch screen layered with a durable, TÜV-certified anti-bacterial film and an anti-glare coating. The surface chemistry is highly resistant to heavy chemical wipe-downs, including isopropyl alcohol and specialized commercial detergents mandated by healthcare and municipal authorities in the UAE and Saudi Arabia. The glass is also treated with a shatterproof safety film, preventing cracks or fragments from detaching if the display suffers a high-impact accidental blow in busy public zones.
