VSYS VS01A-46T Heavy-Duty Tilt TV Wall Mount for 37"-86" TVs

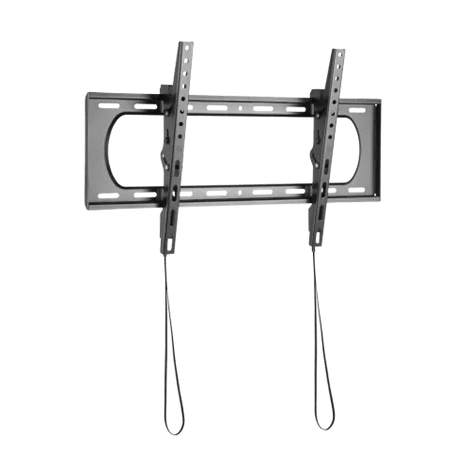

  • Front view of the VS01A-46T heavy-duty tilt TV wall mount for 37 to 86 inch screens by Trianze Tech.
1 1

VSYS VS01A-46T Heavy-Duty Tilt TV Wall Mount for 37"-86" TVs

VSYS VS01A-46T Heavy-Duty Tilt TV Wall Mount for 37"-86" TVs

Broad Compatibility: Securely fits most 37" to 86" flat and curved TVs with VESA patterns up to 600x400.

Massive Load Capacity: Heavy-duty steel construction safely supports massive displays up to 80kg (176lbs).

Toolless Tilt Adjustment: Effortlessly tilt your TV +10° to -10° by hand to reduce glare and optimize viewing angles.

Quick-Release Spring Locks: Snap your TV safely onto the wall plate and remove it in seconds with easy-to-pull release cords.

Open Wall Plate Design: Provides unrestricted access to power outlets and cables while maximizing ventilation.

VSYS
Brand : VSYS
Model : VS01A-46T

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Application & Use Cases

The VS01A-46T is the premier Heavy-Duty Tilt TV Wall Mount for both premium residential and commercial environments. It is perfect for mounting large-sized TVs in home theater setups, outfitting corporate boardrooms with heavy interactive displays, or securely installing digital signage in retail stores and hotel lobbies. Engineered for reliability, it provides AV integrators in the UAE and GCC with a rugged, easy-to-install solution that ensures absolute safety and a glare-free viewing experience for massive screens.

Front view of the VS01A-46T heavy-duty tilt TV wall mount for 37 to 86 inch screens by Trianze Tech.
  • Specifications
  • Details
Feature Specification
Material Heavy-Duty Steel (1.8mm cold-rolled sheet)
Surface Finish Powder Coating (Fine Texture Black)
Fit Screen Size 37" – 86" (Compatible with Curved TVs)
Weight Capacity Up to 80kg (176lbs) – Strength Tested 4 Times
VESA Compatibility 50x50, 75x75, 100x100 up to 600x400 mm
Profile 60mm (2.4") from the wall
Tilt Range +10° to -10° (Toolless Freely Tilting)
Installation Solid Wall, Double Stud (406mm/450mm/600mm)
Panel Type Detachable Panel with Fixed Wall Plate
Locking Mechanism Automatic Spring Locks with Quick Release
Dimensions 60 x 685 x 425 mm (2.4" x 27" x 16.7")
Included Accessories Hook-on Bubble Level, Installation Hardware Kit

The Ultimate Support for Large Displays

Address the need for secure, large-screen mounting with the Vsys Collection VS01A-46T. This Heavy-Duty Tilt TV Wall Mount is engineered to provide a robust and highly reliable solution for modern, oversized televisions. Featuring a reinforced stiffener structure, this bracket boasts an impressive 80kg/176lbs weight capacity, making it the perfect partner to firmly hold 37 to 86 inch TVs without sagging or instability.

Optimized Viewing with Toolless Adjustments

Say goodbye to glare and neck strain. The VS01A-46T features a premium toolless tilting mechanism that allows for effortless positioning. Easily adjust your screen anywhere from +10° to -10° by hand to find the perfect, glare-free viewing angle for your living room, boardroom, or commercial space.

Smart Open Architecture & Easy Maintenance

We know that cable management and power access are critical for a clean AV setup. This mount features an open architecture design, leaving ample space in the center. This layout is perfect for installing recessed socket outlets, increasing airflow to prevent TV overheating, and easily concealing messy cables.

Fast, Secure, and Simple Installation

Designed with professional AV integrators and DIY homeowners in mind, mounting your display has never been safer. The bracket features automatic spring locks with quick-release cords, allowing you to snap the TV into place securely. When you need to access ports or remove the display, a simple pull on the quick-release cords allows for fast and easy TV removal in seconds.

Feature Specification
Material Heavy-Duty Steel (1.8mm cold-rolled sheet)
Surface Finish Powder Coating (Fine Texture Black)
Fit Screen Size 37" – 86" (Compatible with Curved TVs)
Weight Capacity Up to 80kg (176lbs) – Strength Tested 4 Times
VESA Compatibility 50x50, 75x75, 100x100 up to 600x400 mm
Profile 60mm (2.4") from the wall
Tilt Range +10° to -10° (Toolless Freely Tilting)
Installation Solid Wall, Double Stud (406mm/450mm/600mm)
Panel Type Detachable Panel with Fixed Wall Plate
Locking Mechanism Automatic Spring Locks with Quick Release
Dimensions 60 x 685 x 425 mm (2.4" x 27" x 16.7")
Included Accessories Hook-on Bubble Level, Installation Hardware Kit
